All diagrams for this model

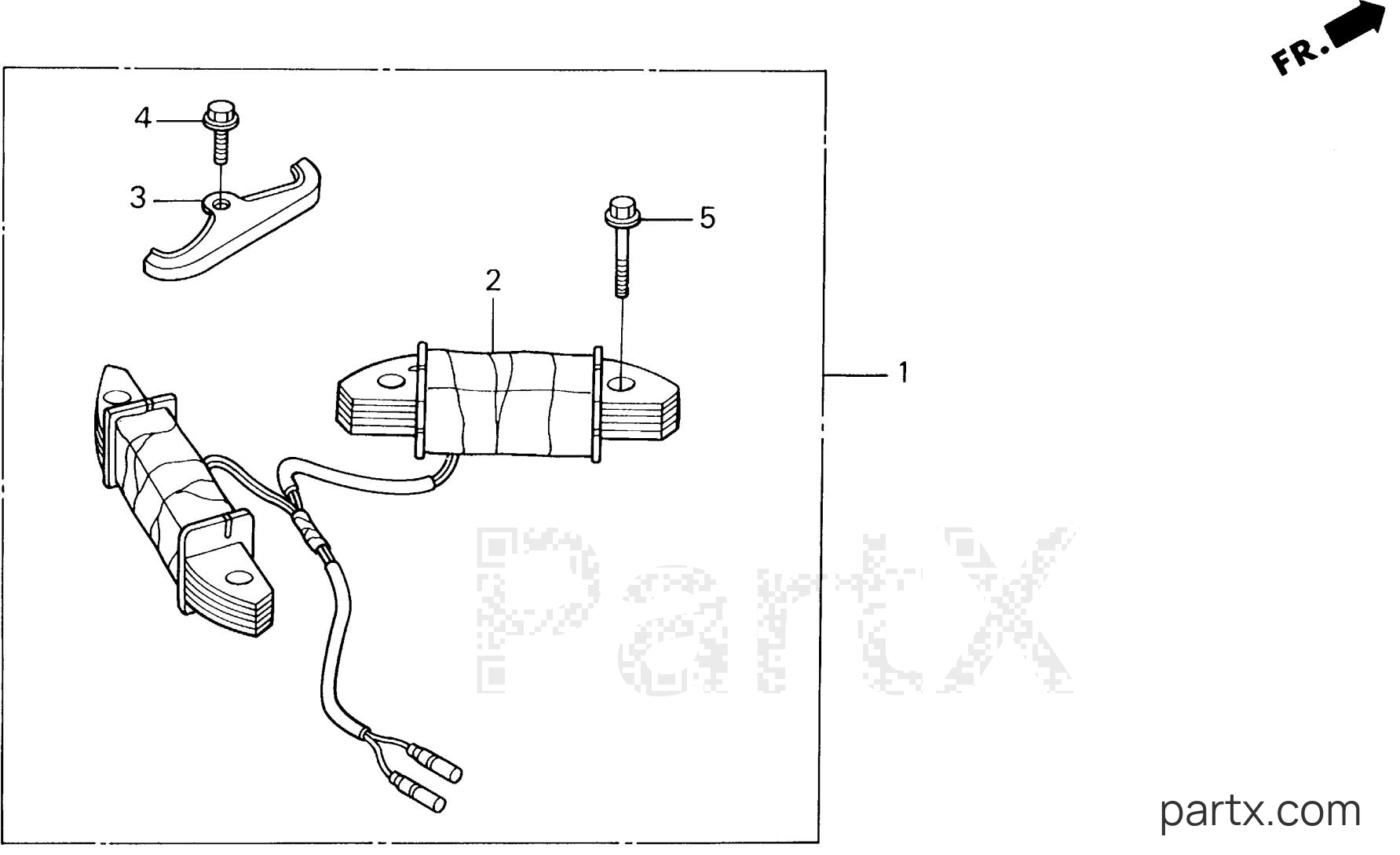

1997 Marine Engine BF - BF45AM LRA CHARGE COIL KIT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Honda BF45AM LRA - CHARGE COIL KIT
Change View:
COIL KIT, CHARGE (10A)
001
Honda
COIL KIT, CHARGE (10A)06320-ZV5-910
Required: 1
COIL KIT, CHARGE (10A)
Price unavailable
-15%
COIL ASSY. (12V/10A)
002
Honda
COIL ASSY. (12V/10A)31630-ZV5-912
Required: 1
COIL ASSY., CHARGE (12V/10A)
Cross Ship
Leaves in 2-5 days
$190.06
$161.55
You save $28.51
More details
-15%
HOLDER, WIRE
003
Honda
HOLDER, WIRE32117-ZV5-000
Required: 1
HOLDER, WIRE (B)
Cross Ship
Leaves in 2-5 days
$26.48
$22.51
You save $3.97
More details
-15%
BOLT, FLANGE (6X12)
004
Honda
BOLT, FLANGE (6X12)90122-ZV1-010
Required: 1
BOLT, FLANGE (6X12)
Cross Ship
Leaves in 2-5 days
$2.04
$1.73
You save $0.31
More details
-15%
BOLT (6X32) (CT200)
005
Honda
BOLT (6X32) (CT200)90023-ZY9-M01
Required: 2
BOLT, FLANGE (6X32) (CT200)
Cross Ship
Leaves in 2-5 days
$1.96
$1.67
You save $0.29
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
