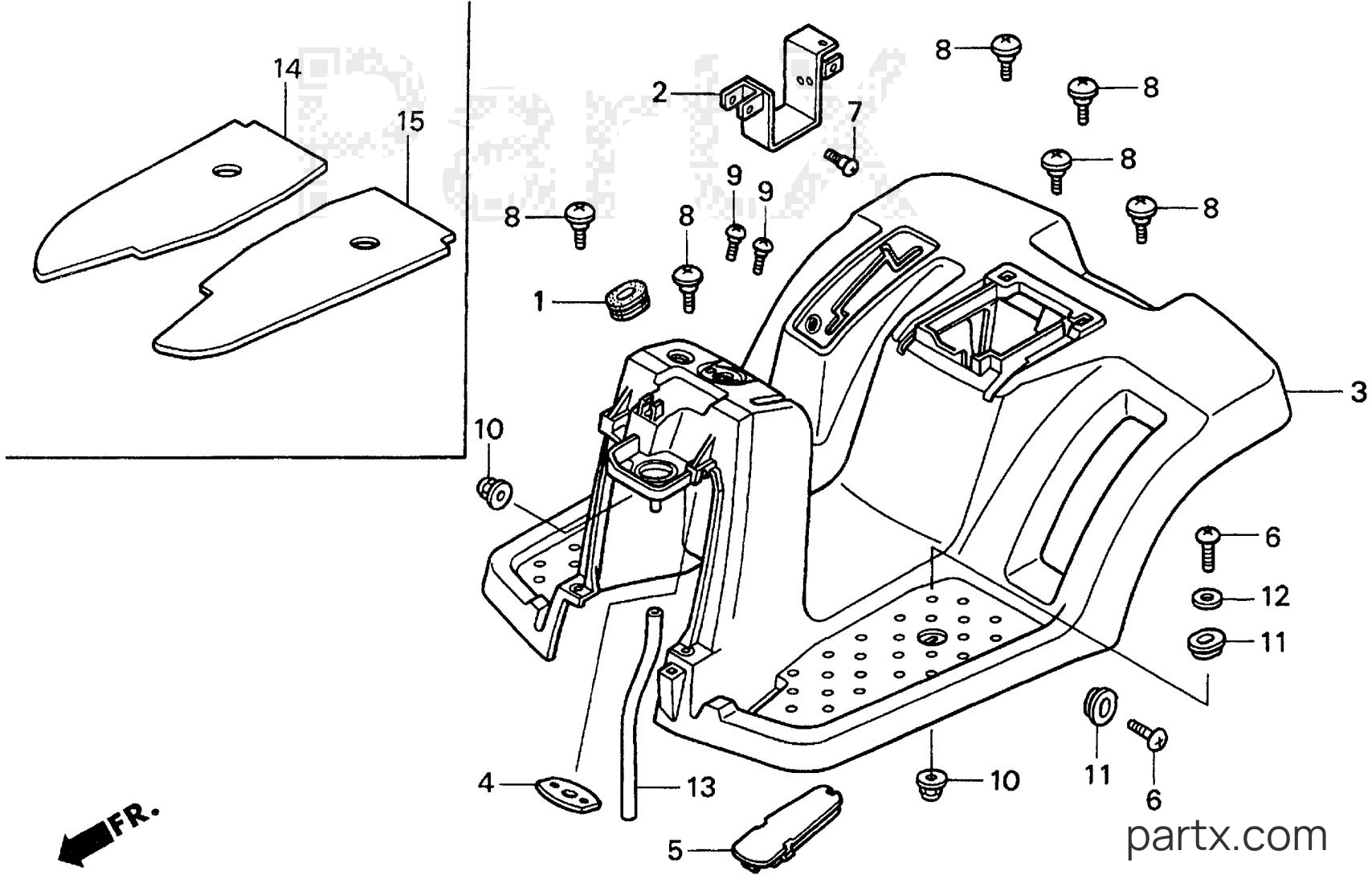

All Years Lawn Tractor H - H2113 GMA PLATFORM diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Change View:

-15%

001

Honda

RUBBER, FR. TANK17512-HB9-000

Required: 1

RUBBER, FR. TANK

~~$10.56~~

$8.98

You save $1.58

More details

-15%

003

Honda

PLATFORM *R165*63111-771-010ZA

Required: 1

PLATFORM *R165*(JOLLY RED) (SOURCE: VINTAGE PARTS INC.)

~~$349.90~~

$297.42

You save $52.49

-15%

PLATE, STEERING SHAFT

~~$5.34~~

$4.54

You save $0.80

More details

-15%

006

Honda

SCREW, TORUS (6X20)90001-GW2-000

Required: 4

SCREW, TORUS (6X20)

~~$3.46~~

$2.94

You save $0.52

-20%

SCREW, SIDE COVER SETTING

~~$4.66~~

$3.73

You save $0.93

More details

-15%

009

Honda

SCREW, PAN (5X15)90150-GN5-901

Required: 2

SCREW, PAN (5X15)

~~$2.84~~

$2.41

You save $0.43

More details

-20%

010

Honda

NUT, SELF-LOCK (6MM)90343-ZE6-000

Required: 4

NUT, SELF-LOCK (6MM)

~~$2.18~~

$1.74

You save $0.44

More details

-15%

011

Honda

WASHER (6X9)90513-405-000

Required: 4

WASHER (6X9)

~~$2.68~~

$2.28

You save $0.40

More details

-50%

012

Honda

WASHER, PLAIN (6MM)94103-06700

Required: 2

WASHER, PLAIN (6MM)

In stock

Only 4 remaining

~~$0.88~~

$0.44

You save $0.44

More details

-15%

013

Honda

BULK HOSE (12X1000)95005-91001-30M

Required: 1

BULK HOSE, VACUUM (12X1000) OEM CUT SIZE: (12X400)

~~$22.64~~

$19.24

You save $3.40

More details

Honda

FLOOR MAT SET (NOT AVAILABLE)06830-771-000

Required: 1

FLOOR MAT SET (NOT AVAILABLE)

Price unavailable
