All diagrams for this model

All Years Generator EXW - EXW171S A REACTOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

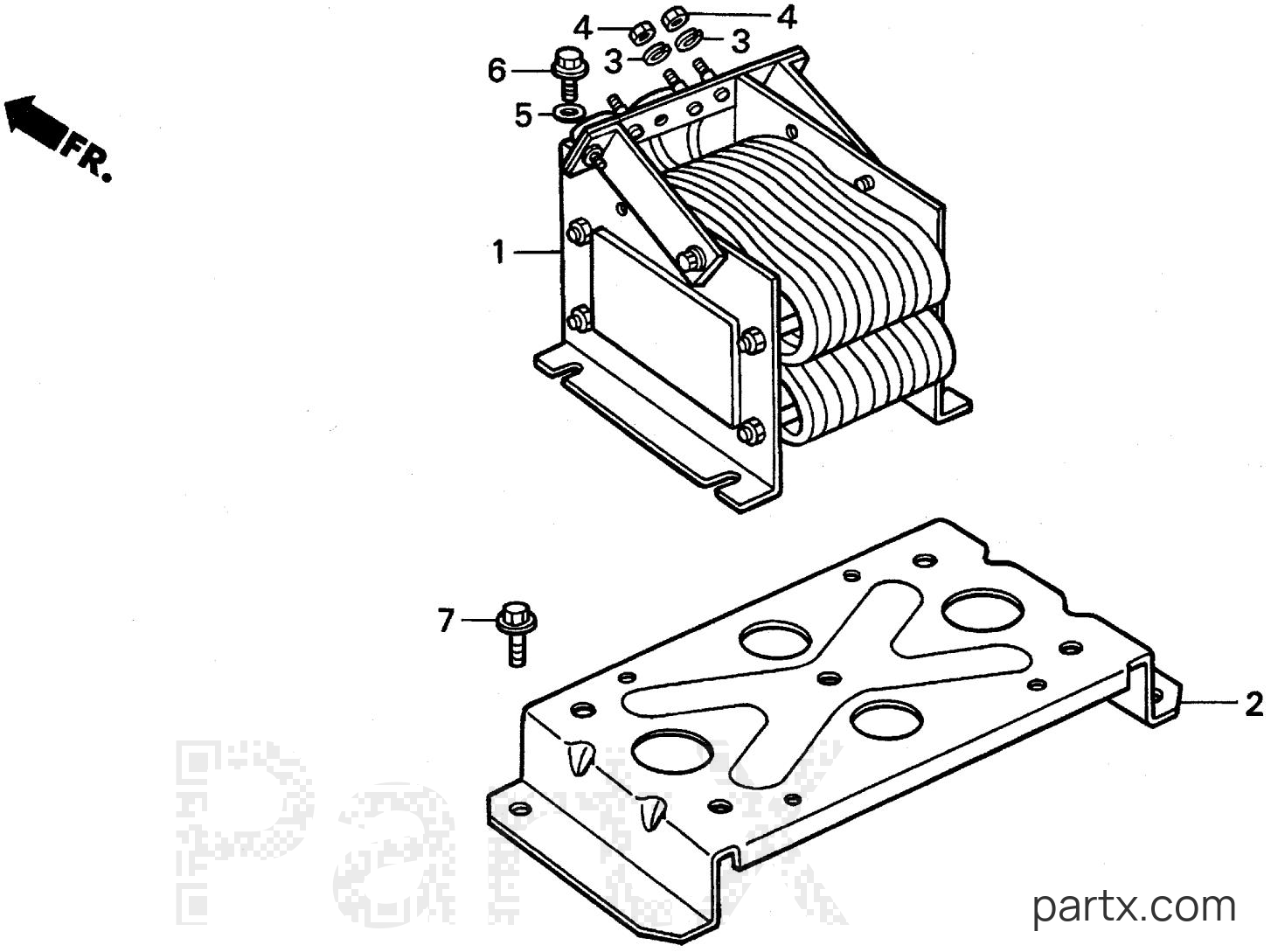

Honda EXW171S A - REACTOR
Change View:
REACTOR ASSY. (NOT AVAILABLE)
001
Honda
REACTOR ASSY. (NOT AVAILABLE)31160-ZB8-811
Required: 1
REACTOR ASSY. (NOT AVAILABLE)
Price unavailable
BASE, REACTOR (NOT AVAILABLE)
002
Honda
BASE, REACTOR (NOT AVAILABLE)50314-ZB7-810
Required: 1
BASE, REACTOR (NOT AVAILABLE)
Price unavailable
-15%
WASHER, SPRING (6MM)
003
Honda
WASHER, SPRING (6MM)90505-ZA1-811
Required: 3
WASHER, SPRING (6MM)
Cross Ship
Leaves in 2-5 days
$2.88
$2.45
You save $0.43
More details
-15%
NUT, HEX. (6MM)
004
Honda
NUT, HEX. (6MM)94001-06390-0S
Required: 3
NUT, HEX. (6MM)
Cross Ship
Leaves in 2-5 days
$1.96
$1.67
You save $0.29
More details
-15%
WASHER, PLAIN (8MM)
005
Honda
WASHER, PLAIN (8MM)94101-08000
Required: 4
WASHER, PLAIN (8MM)
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
-20%
BOLT, FLANGE (8X16)
006
Honda
BOLT, FLANGE (8X16)95701-08016-00
Required: 4
BOLT, FLANGE (8X16)
Cross Ship
Leaves in 2-5 days
$2.20
$1.76
You save $0.44
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
