All diagrams for this model

All Years Generator EXW - EXW171S A ENGINE SWITCH PANEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

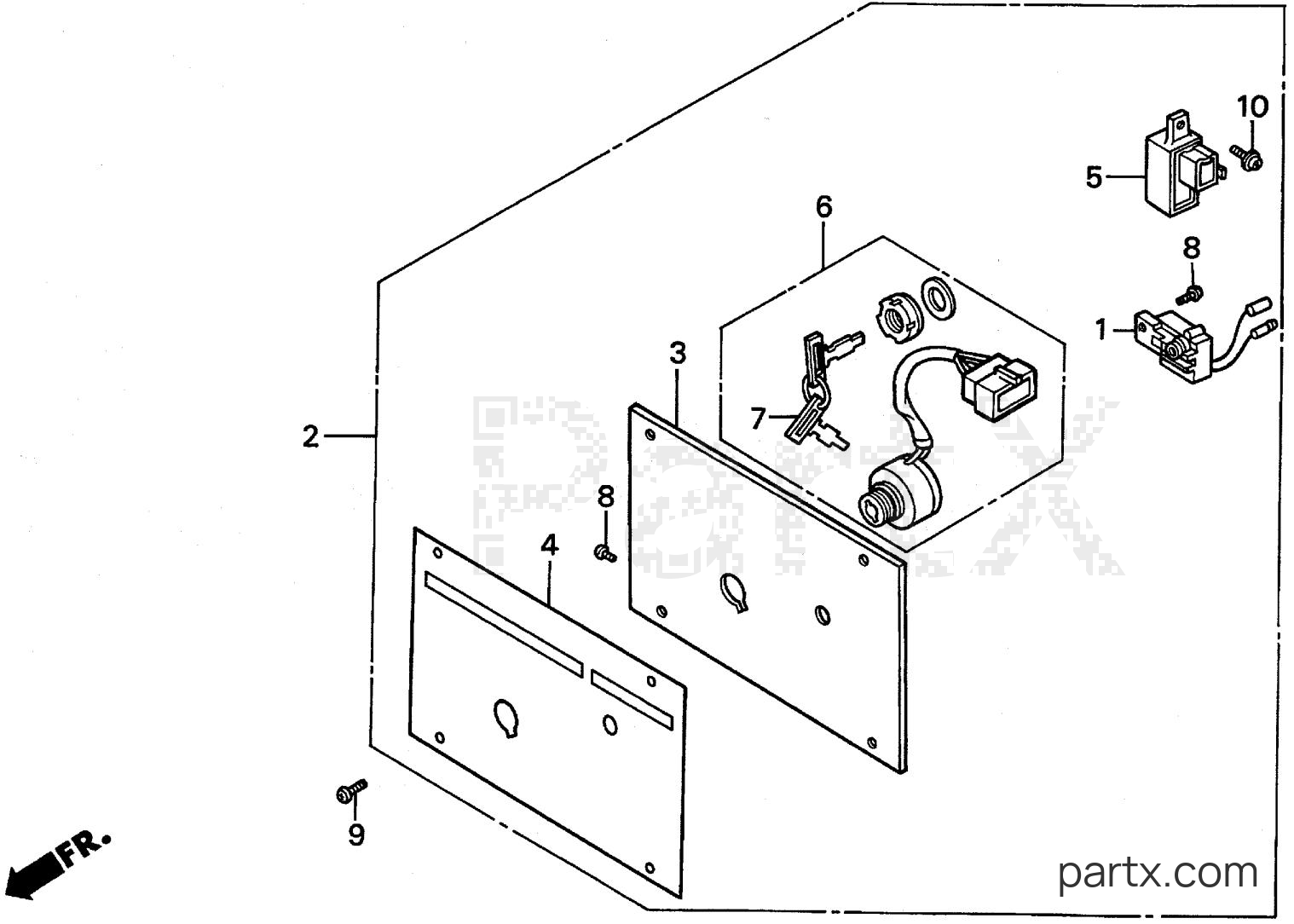

Honda EXW171S A - ENGINE SWITCH PANEL
Change View:
ALERT UNIT, OIL (NOT AVAILABLE)
001
Honda
ALERT UNIT, OIL (NOT AVAILABLE)15520-ZC2-003
Required: 1
ALERT UNIT, OIL (NOT AVAILABLE)
Price unavailable
PANEL ASSY., ENGINE SWITCH (EXW-A) (NOT AVAILABLE)
002
Honda
PANEL ASSY., ENGINE SWITCH (EXW-A) (NOT AVAILABLE)31470-ZB8-831
Required: 1
PANEL ASSY., ENGINE SWITCH (EXW-A) (NOT AVAILABLE)
Price unavailable
PANEL, ENGINE SWITCH (EXW-N) (NOT AVAILABLE)
003
Honda
PANEL, ENGINE SWITCH (EXW-N) (NOT AVAILABLE)31472-ZB7-811
Required: 1
PANEL, ENGINE SWITCH (EXW-N) (NOT AVAILABLE)
Price unavailable
PLATE, ENGINE SWITCH INDICATION (EXW-A) (NOT AVAILABLE)
004
Honda
PLATE, ENGINE SWITCH INDICATION (EXW-A) (NOT AVAILABLE)31476-ZB7-830
Required: 1
PLATE, ENGINE SWITCH INDICATION (EXW-A) (NOT AVAILABLE)
Price unavailable
DIODE ASSY. (NOT AVAILABLE)
005
Honda
DIODE ASSY. (NOT AVAILABLE)31710-ZB7-701
Required: 1
DIODE ASSY. (NOT AVAILABLE)
Price unavailable
-15%
SWITCH, COMBINATION
006
Honda
SWITCH, COMBINATION35100-ZA0-023
Required: 1
SWITCH ASSY., COMBINATION
Cross Ship
Leaves in 2-5 days
$112.90
$95.96
You save $16.94
More details
-15%
KEY
007
Honda
KEY35111-880-013
Required: 2
KEY (HONDALOCK)
Cross Ship
Leaves in 2-5 days
$11.16
$9.49
You save $1.67
More details
-15%
SCREW, PAN (5X10)
009
Honda
SCREW, PAN (5X10)93500-05010-0G
Required: 4
SCREW, PAN (5X10)
Cross Ship
Leaves in 2-5 days
$1.10
$0.94
You save $0.17
More details
-15%
SCREW-WASHER (4X12)
010
Honda
SCREW-WASHER (4X12)93893-04012-08
Required: 1
SCREW-WASHER (4X12)
Cross Ship
Leaves in 2-5 days
$1.64
$1.39
You save $0.25
More details
SCREW-WASHER (4X12)
010
Honda
SCREW-WASHER (4X12)93893-04012-18
Required: 1
SCREW-WASHER (4X12)
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
