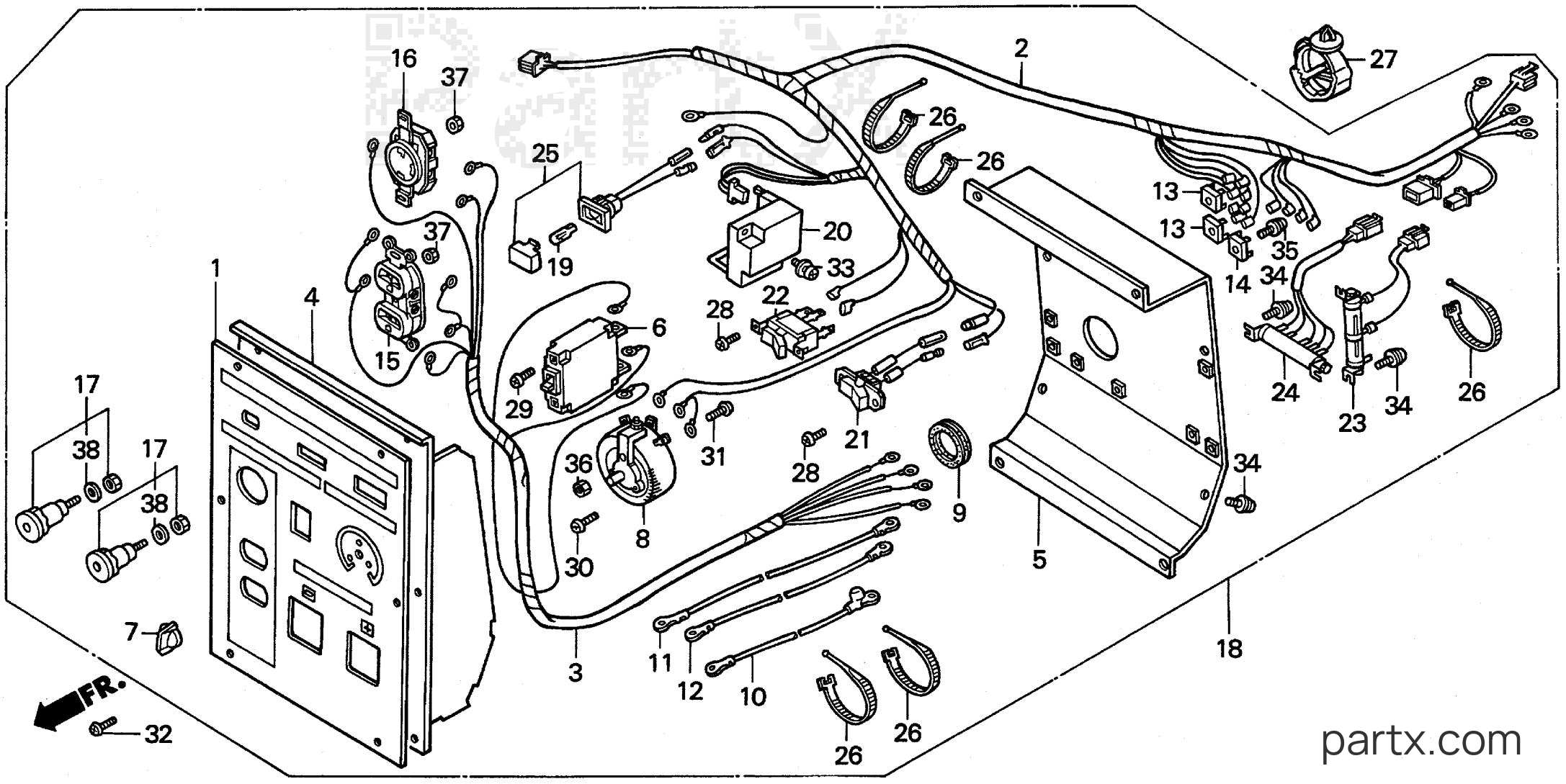

All Years Generator EXW - EXW171S A CONTROL PANEL diagram
001
Honda
PLATE, CONTROL INDICATION (EXW-A) (NOT AVAILABLE)31406-ZB8-830
Required: 1
PLATE, CONTROL INDICATION (EXW-A) (NOT AVAILABLE)
Price unavailable
001
Honda
PLATE, CONTROL INDICATION (EXW-A) (NOT AVAILABLE)31406-ZB8-831
Required: 1
PLATE, CONTROL INDICATION (EXW-A) (NOT AVAILABLE)
Price unavailable
002
Honda
HARNESS ASSY., CONTROL (EXW-A) (NOT AVAILABLE)31418-ZB7-831
Required: 1
HARNESS ASSY., CONTROL (EXW-A) (NOT AVAILABLE)
Price unavailable
003
Honda
HARNESS ASSY., A.C. OUTPUT (EXW-A) (NOT AVAILABLE)31419-ZB8-831
Required: 1
HARNESS ASSY., A.C. OUTPUT (EXW-A) (NOT AVAILABLE)
Price unavailable
004
Honda
PANEL, CONTROL (EXW-A) (NOT AVAILABLE)31420-ZB7-831
Required: 1
PANEL, CONTROL (EXW-A) (NOT AVAILABLE)
Price unavailable
005
Honda
COVER, CONTROL31425-ZB7-812
Required: 1
COVER, CONTROL
Price unavailable
-15%
006
Honda
BREAKER (33.5A)31430-ZB4-610
Required: 1
BREAKER, CIRCUIT (33.5A) (NOT AVAILABLE)
$229.47
You save $40.49
-15%
007
Honda
KNOB, ADJUSTING31461-ZA1-811
Required: 1
KNOB, ADJUSTING
$19.86
You save $3.50
-15%
008
Honda
RESISTOR, VARIABLE31466-ZB4-811
Required: 1
RESISTOR, VARIABLE (NOT AVAILABLE)
No longer availableSearch Nationwide Inventory
$226.20
You save $39.92
009
Honda
GROMMET, MAIN WIRE (NOT AVAILABLE)31482-ZA1-811
Required: 1
GROMMET, MAIN WIRE (NOT AVAILABLE)
Price unavailable
010
Honda
WIRE ASSY. (+) (NOT AVAILABLE)31596-ZB8-831
Required: 1
WIRE ASSY. (+) (NOT AVAILABLE)
Price unavailable
011
Honda
WIRE ASSY. (-) (NOT AVAILABLE)31597-ZB8-831
Required: 1
WIRE ASSY. (-) (NOT AVAILABLE)
Price unavailable
012
Honda
WIRE ASSY. (REACTOR) (NOT AVAILABLE)31598-ZB8-811
Required: 1
WIRE ASSY. (REACTOR) (NOT AVAILABLE)
Price unavailable
-15%
013
Honda
STACK, DIODE31710-ZA0-003
Required: 2
STACK, DIODE (NOT AVAILABLE)
$60.86
You save $10.74
-15%
014
Honda
DIODE31710-ZA1-811
Required: 1
DIODE (NOT AVAILABLE)
$75.56
You save $13.34
-15%
015
Honda
RECPTL (20A/125V)32330-ZA1-631
Required: 1
RECEPTACLE (20A/125V) (MATSUSHITA)
$42.52
You save $7.50
-15%
016
Honda
RECPTL (30A/125V)32332-880-710
Required: 1
RECEPTACLE (30A/125V)
$22.77
You save $4.02
-15%
016
Honda
RECPTL (30A/125V)32332-ZB4-630
Required: 1
RECEPTACLE (30A/125V)
$39.00
You save $6.88
-15%
017
Honda
RECEPTACLE, PANEL32335-ZA1-830
Required: 2
RECEPTACLE, PANEL
$108.65
You save $19.17
018
Honda
PANEL ASSY., CONTROL (EXW-A) (NOT AVAILABLE)32340-ZB8-831
Required: 1
PANEL ASSY., CONTROL (EXW-A) (NOT AVAILABLE)
Price unavailable
-15%
019
Honda
BULB (12V/2W)34908-GE0-701
Required: 1
BULB, WEDGE BASE (12V/2W)
$2.99
You save $0.53
-15%
020
Honda
THROTTLE UNIT, AUTO36210-ZB4-811
Required: 1
THROTTLE UNIT ASSY., AUTO
$237.81
You save $41.97
-15%
$34.07
You save $6.01
-15%
022
Honda
SWITCH ASSY.36222-ZB4-811
Required: 1
SWITCH ASSY. (NOT AVAILABLE)
$85.41
You save $15.07
023
Honda
RESISTOR, ADJUSTABLE (NOT AVAILABLE)37503-ZB4-811
Required: 1
RESISTOR, ADJUSTABLE (NOT AVAILABLE)
Price unavailable
024
Honda
RESISTOR37505-ZB7-812
Required: 1
RESISTOR
Price unavailable
-15%
025
Honda
SOCKET ASSY., LAMP37560-ZA0-801
Required: 1
SOCKET ASSY., LAMP (GREEN)
$37.93
You save $6.69
-15%
026
Honda
TIE, CABLE90672-ZB7-811
Required: 7
TIE, CABLE (NATURAL 154X3.4)
$3.71
You save $0.65
-15%
027
Honda
CLIP, HARNESS90691-ZB7-003
Required: 1
CLIP, HARNESS
$3.47
You save $0.61
-20%
028
Honda
SCREW, PAN (3X6)93500-03006-0H
Required: 4
SCREW, PAN (3X6)
$0.80
You save $0.20
-15%
029
Honda
SCREW, PAN (4X6)93500-04006-0H
Required: 2
SCREW, PAN (4X6)
$0.94
You save $0.17
-15%
030
Honda
SCREW, PAN (4X10)93500-04010-0G
Required: 3
SCREW, PAN (4X10)
$0.66
You save $0.12
-15%
031
Honda
SCREW, PAN (4X10)93500-04010-3C
Required: 3
SCREW, PAN (4X10) (NOT AVAILABLE)
$1.43
You save $0.25
-15%
032
Honda
SCREW, PAN (5X10)93500-05010-0G
Required: 6
SCREW, PAN (5X10)
$0.94
You save $0.17
-15%
033
Honda
SCREW-WASHER (5X12)93892-05012-08
Required: 1
SCREW-WASHER (5X12)
$1.19
You save $0.21
-15%
034
Honda
SCREW-WASHER (4X10)93893-04010-08
Required: 8
SCREW-WASHER (4X10)
$1.39
You save $0.25
-15%
035
Honda
SCREW-WASHER (4X20)93893-04020-08
Required: 3
SCREW-WASHER (4X20)
$0.90
You save $0.16
-15%
036
Honda
NUT, HEX. (4MM)94001-04390-0S
Required: 3
NUT, HEX. (4MM)
$0.90
You save $0.16
-15%
037
Honda
NUT, FLANGE (4MM)94050-04080
Required: 4
NUT, FLANGE (4MM)
$1.29
You save $0.23
-15%
038
Honda
WASHER, PLAIN (8MM)94101-08800
Required: 2
WASHER, PLAIN (8MM)
$2.01
You save $0.35
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
