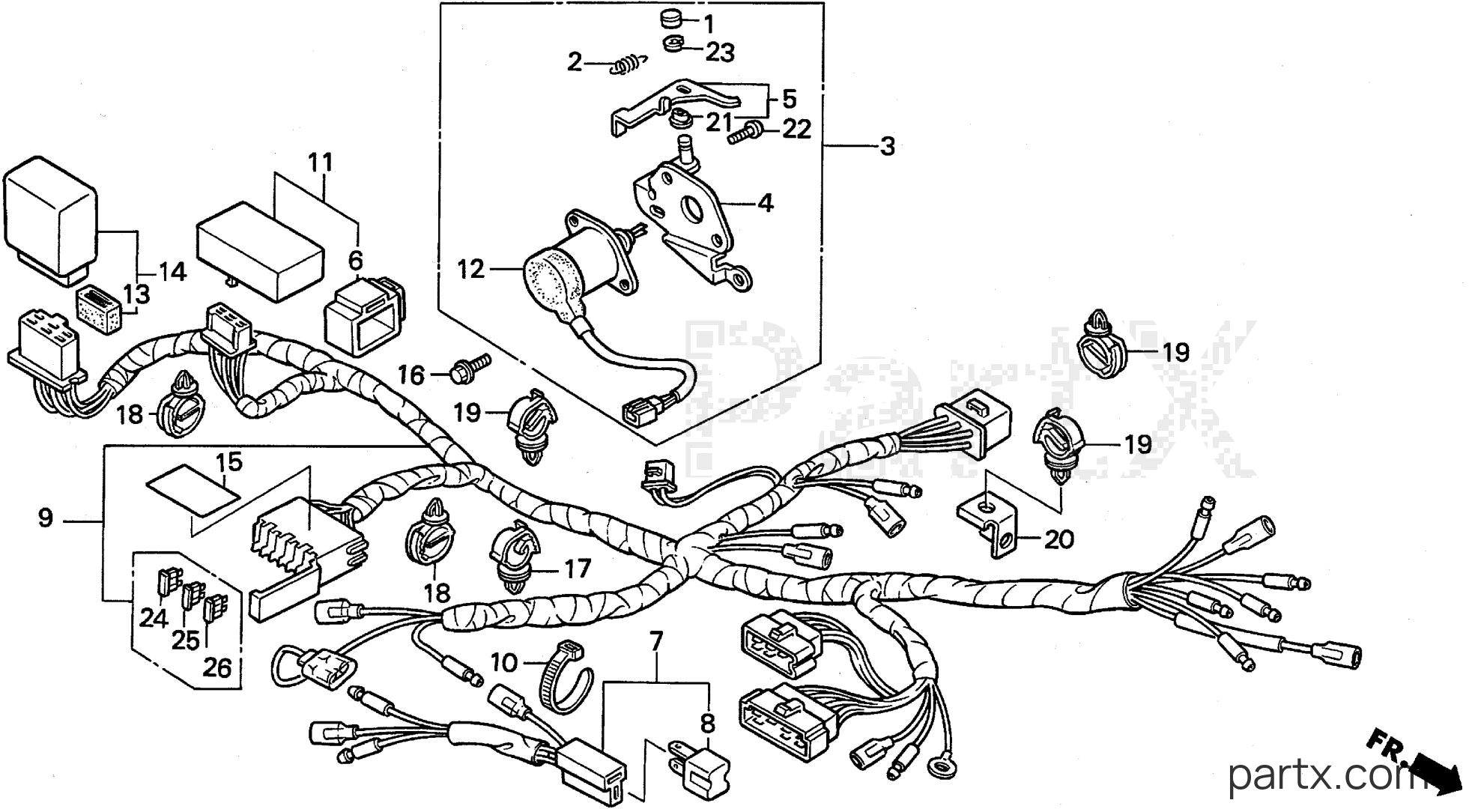

All Years Generator EXW - EXW171S A AUTO THROTTLE diagram
001
Honda
CAP, CHOKE LEVER16252-ZA1-000
Required: 1
CAP, CHOKE LEVER
Price unavailable
-15%
001
Honda
CAP, CHOKE LEVER16252-ZA1-010
Required: 1
CAP, CHOKE LEVER
$1.43
You save $0.25
-15%
002
Honda
SPRING, CHOKE RETURN16268-893-000
Required: 1
SPRING, CHOKE RETURN
$3.32
You save $0.58
003
Honda
THROTTLE ASSY., AUTO (NOT AVAILABLE)16270-ZC2-000
Required: 1
THROTTLE ASSY., AUTO (NOT AVAILABLE)
Price unavailable
004
Honda
STAY, SOLENOID THROTTLE (NOT AVAILABLE)16271-ZC2-000
Required: 1
STAY, SOLENOID THROTTLE (NOT AVAILABLE)
Price unavailable
005
Honda
LEVER, SOLENOID THROTTLE (NOT AVAILABLE)16273-ZC2-000
Required: 1
LEVER, SOLENOID THROTTLE (NOT AVAILABLE)
Price unavailable
-15%
$4.79
You save $0.85
-15%
007
Honda
DIODE, SOLENOID31700-ZB7-003
Required: 1
DIODE ASSY., SOLENOID (NOT AVAILABLE)
$61.63
You save $10.88
-15%
008
Honda
RECTIFIER, SILICON31700-166-008
Required: 1
RECTIFIER, SILICON
$30.62
You save $5.40
009
Honda
SUB-WIRE HARNESS ASSY. (NOT AVAILABLE)32100-ZB8-811
Required: 1
SUB-WIRE HARNESS ASSY. (NOT AVAILABLE)
Price unavailable
-15%
010
Honda
BAND B1, WIRE32161-404-000
Required: 1
BAND B1, WIRE
$2.43
You save $0.43
011
Honda
CONTROL UNIT, SOLENOID (NOT AVAILABLE)36150-ZB7-003
Required: 1
CONTROL UNIT, SOLENOID (NOT AVAILABLE)
Price unavailable
-15%
012
Honda
SOLENOID ASSY.36160-ZB4-013
Required: 1
SOLENOID ASSY.
$94.04
You save $16.60
-15%
013
Honda
SUSPENSION38306-KK4-000
Required: 1
SUSPENSION, TURN SIGNAL RELAY (MITSUBA)
$3.43
You save $0.61
-15%
$102.76
You save $18.14
015
Honda
LABEL, FUSE (NOT AVAILABLE)87117-ZB7-650
Required: 1
LABEL, FUSE (NOT AVAILABLE)
Price unavailable
-15%
016
Honda
BOLT (6X12) (CT200)90013-883-000
Required: 1
BOLT, FLANGE (6X12) (CT200)
In stock
Only 3 remaining
$1.60
You save $0.28
-15%
017
Honda
CLIP (20MM)90683-SB2-781
Required: 1
CLIP (20MM)
$5.68
You save $1.00
-15%
018
Honda
CLIP, HARNESS90684-ZA0-601
Required: 2
CLIP, HARNESS
$3.64
You save $0.64
-15%
019
Honda
CLIP, HARNESS90691-ZB7-003
Required: 3
CLIP, HARNESS
$3.47
You save $0.61
-15%
020
Honda
BASE, CORD CLIP90700-ZB7-000
Required: 1
BASE, CORD CLIP
$5.02
You save $0.88
-15%
021
Honda
BUSH91502-ZB4-701
Required: 1
BUSH, AUTO-THROTTLE LEVER
$4.74
You save $0.84
-15%
022
Honda
SCREW, PAN (5X8)93500-05008-0A
Required: 2
SCREW, PAN (5X8)
$0.90
You save $0.16
-15%
023
Honda
E-RING (4MM)94540-04018
Required: 1
E-RING (4MM)
$3.15
You save $0.56
-15%
024
Honda
FUSE, BLADE (1A)98200-30100
Required: 1
FUSE, BLADE (1A)
$1.39
You save $0.25
-15%
025
Honda
FUSE, BLADE (5A)98200-30500
Required: 1
FUSE, BLADE (5A)
$1.36
You save $0.24
-15%
026
Honda
FUSE, BLADE (10A)98200-31000
Required: 1
FUSE, BLADE (10A)
$1.36
You save $0.24
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
