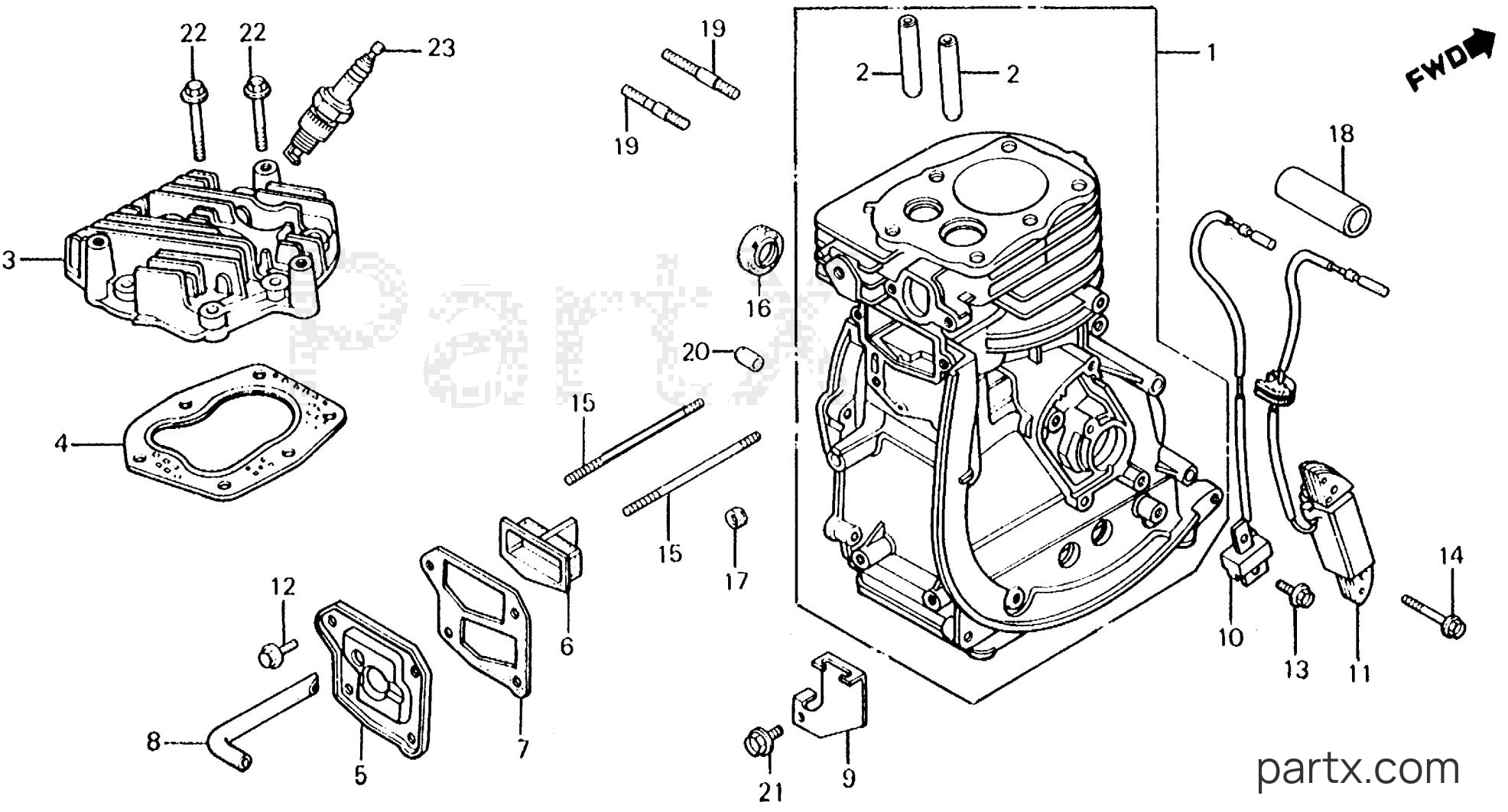

Honda EX800 A - CYLINDER
Change View:
CYLINDER (NOT AVAILABLE)
001
Honda
CYLINDER (NOT AVAILABLE)121A0-ZA7-000
Required: 1
CYLINDER (NOT AVAILABLE)
Price unavailable
GUIDE, VALVE (NOT AVAILABLE)
002
Honda
GUIDE, VALVE (NOT AVAILABLE)12134-892-305
Required: 2
GUIDE, VALVE (NOT AVAILABLE)
Price unavailable
CYLINDER HEAD (NOT AVAILABLE)
003
Honda
CYLINDER HEAD (NOT AVAILABLE)12221-ZA7-000
Required: 1
CYLINDER HEAD (NOT AVAILABLE)
Price unavailable
GASKET, CYLINDER HEAD (NOT AVAILABLE)
004
Honda
GASKET, CYLINDER HEAD (NOT AVAILABLE)12281-896-000
Required: 1
GASKET, CYLINDER HEAD (NOT AVAILABLE)
Price unavailable
COVER, TAPPET ROOM (NOT AVAILABLE)
005
Honda
COVER, TAPPET ROOM (NOT AVAILABLE)12361-896-000
Required: 1
COVER, TAPPET ROOM (NOT AVAILABLE)
Price unavailable
SEPARATOR (INNER) (NOT AVAILABLE)
006
Honda
SEPARATOR (INNER) (NOT AVAILABLE)12370-ZA7-000
Required: 1
SEPARATOR (INNER) (NOT AVAILABLE)
Price unavailable
-15%
GASKET, TAPPET COVER
007
Honda
GASKET, TAPPET COVER12375-896-000
Required: 1
GASKET, TAPPET COVER (NOT AVAILABLE)
Cross Ship
Leaves in 2-5 days
$3.18
$2.70
You save $0.48
More details
-15%
TUBE, BREATHER
008
Honda
TUBE, BREATHER15721-896-010
Required: 1
TUBE, BREATHER (NOT AVAILABLE)
Cross Ship
Leaves in 2-5 days
$8.58
$7.29
You save $1.29
More details
HOLDER, TUBE (NOT AVAILABLE)
009
Honda
HOLDER, TUBE (NOT AVAILABLE)16105-ZA7-000
Required: 1
HOLDER, TUBE (NOT AVAILABLE)
Price unavailable
COIL, PULSER
010
Honda
COIL, PULSER30410-896-602
Required: 1
COIL, PULSER
Price unavailable
COIL, EXCITER (NOT AVAILABLE)
011
Honda
COIL, EXCITER (NOT AVAILABLE)30590-896-602
Required: 1
COIL, EXCITER (NOT AVAILABLE)
Price unavailable
-15%
BOLT, FLANGE (5X10)
012
Honda
BOLT, FLANGE (5X10)90002-892-000
Required: 4
BOLT, FLANGE (5X10)
Cross Ship
Leaves in 2-5 days
$1.72
$1.46
You save $0.26
More details
-15%
BOLT, FLANGE (5X12)
013
Honda
BOLT, FLANGE (5X12)90007-892-000
Required: 2
BOLT, FLANGE (5X12)
Cross Ship
Leaves in 2-5 days
$1.46
$1.24
You save $0.22
More details
BOLT, FLANGE (5X25) (NOT AVAILABLE)
014
Honda
BOLT, FLANGE (5X25) (NOT AVAILABLE)90007-896-000
Required: 2
BOLT, FLANGE (5X25) (NOT AVAILABLE)
Price unavailable
BOLT, STUD (5X80) (NOT AVAILABLE)
015
Honda
BOLT, STUD (5X80) (NOT AVAILABLE)90041-896-000
Required: 2
BOLT, STUD (5X80) (NOT AVAILABLE)
Price unavailable
-15%
OIL SEAL (17X30X6)
016
Honda
OIL SEAL (17X30X6)91202-892-004
Required: 1
OIL SEAL (17X30X6) (NOK)
Cross Ship
Leaves in 2-5 days
$12.28
$10.44
You save $1.84
More details
OIL SEAL (5X10X4) (NOT AVAILABLE)
017
Honda
OIL SEAL (5X10X4) (NOT AVAILABLE)91231-816-000
Required: 1
OIL SEAL (5X10X4) (NOT AVAILABLE)
Price unavailable
-15%
TUBE, CORD
018
Honda
TUBE, CORD91406-898-000
Required: 1
TUBE, CORD
Cross Ship
Leaves in 2-5 days
$4.16
$3.54
You save $0.62
More details
-15%
BOLT, STUD (6X16)
019
Honda
BOLT, STUD (6X16)92900-06016-0B
Required: 2
BOLT, STUD (6X16)
Cross Ship
Leaves in 2-5 days
$1.80
$1.53
You save $0.27
More details
-20%
PIN, DOWEL (8X14)
020
Honda
PIN, DOWEL (8X14)94301-08140
Required: 2
PIN, DOWEL (8X14)
Cross Ship
Leaves in 2-5 days
$2.74
$2.19
You save $0.55
More details
-15%
BOLT, FLANGE (6X10)
021
Honda
BOLT, FLANGE (6X10)95700-06010-08
Required: 1
BOLT, FLANGE (6X10)
Cross Ship
Leaves in 2-5 days
$1.96
$1.67
You save $0.29
More details
-20%
BOLT, FLANGE (6X10)
021
Honda
BOLT, FLANGE (6X10)95701-06010-08
Required: 1
BOLT, FLANGE (6X10)
Cross Ship
Leaves in 2-5 days
$1.96
$1.57
You save $0.39
More details
-15%
BOLT, FLANGE (6X35)
022
Honda
BOLT, FLANGE (6X35)95701-06035-08
Required: 6
BOLT, FLANGE (6X35)
Cross Ship
Leaves in 2-5 days
$2.18
$1.85
You save $0.33
More details
SPARK PLUG (BPR-4HS-10) (NGK)
023
Honda
SPARK PLUG (BPR-4HS-10) (NGK)98076-54914
Required: 1
SPARK PLUG (BPR-4HS-10) (NGK)
Price unavailable
-15%
S/PLG (BPR4HS-10)
023
Honda
S/PLG (BPR4HS-10)98076-54917
Required: 1
SPARK PLUG (BPR4HS-10)
Cross Ship
Leaves in 2-5 days
$2.46
$2.09
You save $0.37
More details
-15%
S/PLG (W14FPR-UL10)
023
Honda
S/PLG (W14FPR-UL10)98076-54954
Required: 1
SPARK PLUG (W14FPR-UL10) (DENSO)
Cross Ship
Leaves in 2-5 days
$3.16
$2.69
You save $0.47
More details
