All diagrams for this model

All Years Generator EX - EX800 A COOLING FAN diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

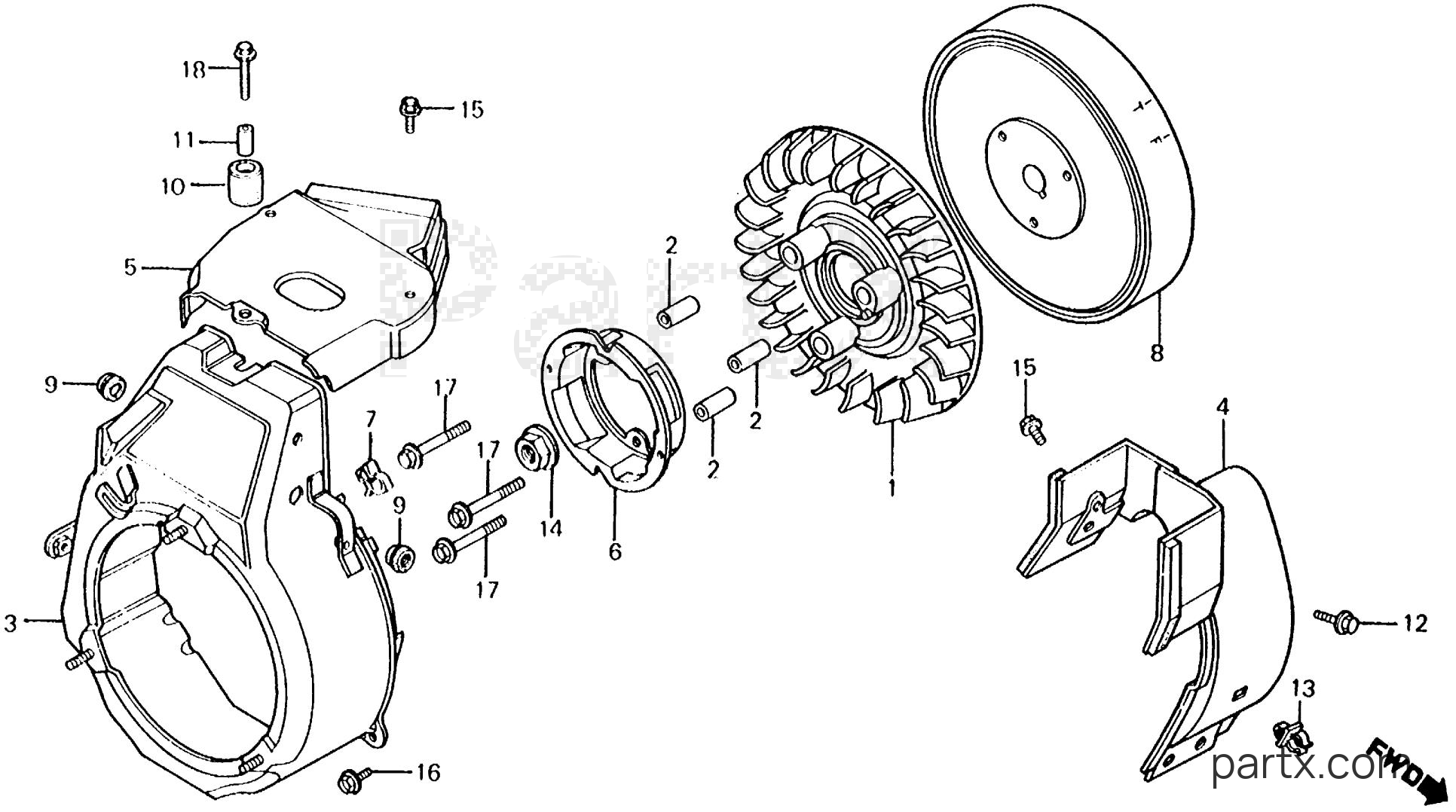

Honda EX800 A - COOLING FAN
Change View:
FAN, COOLING (NOT AVAILABLE)
001
Honda
FAN, COOLING (NOT AVAILABLE)19511-ZA7-000
Required: 1
FAN, COOLING (NOT AVAILABLE)
Price unavailable
COLLAR, FAN (NOT AVAILABLE)
002
Honda
COLLAR, FAN (NOT AVAILABLE)19512-ZA7-000
Required: 3
COLLAR, FAN (NOT AVAILABLE)
Price unavailable
COVER, FAN (NOT AVAILABLE)
003
Honda
COVER, FAN (NOT AVAILABLE)19610-ZA7-000
Required: 1
COVER, FAN (NOT AVAILABLE)
Price unavailable
SHROUD (NOT AVAILABLE)
004
Honda
SHROUD (NOT AVAILABLE)19630-ZA7-000
Required: 1
SHROUD (NOT AVAILABLE)
Price unavailable
COVER, TOP (NOT AVAILABLE)
005
Honda
COVER, TOP (NOT AVAILABLE)19641-ZA7-000
Required: 1
COVER, TOP (NOT AVAILABLE)
Price unavailable
-15%
PULLEY, STARTER
006
Honda
PULLEY, STARTER28453-896-003
Required: 1
PULLEY, STARTER
Cross Ship
Leaves in 2-5 days
$17.10
$14.53
You save $2.56
More details
-15%
CLIP (8MM)
007
Honda
CLIP (8MM)30701-883-000
Required: 1
CLIP, IGNITION WIRE (8MM)
Cross Ship
Leaves in 2-5 days
$3.56
$3.03
You save $0.53
More details
FLYWHEEL (C.D.I.) (NOT AVAILABLE)
008
Honda
FLYWHEEL (C.D.I.) (NOT AVAILABLE)31100-896-601
Required: 1
FLYWHEEL (C.D.I.) (NOT AVAILABLE)
Price unavailable
GROMMET, WIRE (NOT AVAILABLE)
009
Honda
GROMMET, WIRE (NOT AVAILABLE)37115-453-000
Required: 2
GROMMET, WIRE (NOT AVAILABLE)
Price unavailable
RUBBER, STOPPER (NOT AVAILABLE)
010
Honda
RUBBER, STOPPER (NOT AVAILABLE)50318-ZA7-000
Required: 1
RUBBER, STOPPER (NOT AVAILABLE)
Price unavailable
-15%
COLLAR
011
Honda
COLLAR84706-163-670
Required: 1
COLLAR, TAILLIGHT MOUNTING
Cross Ship
Leaves in 2-5 days
$5.48
$4.66
You save $0.82
More details
CLIP, HOSE
013
Honda
CLIP, HOSE90662-MA1-003
Required: 1
CLIP, HOSE
Price unavailable
-15%
NUT, FLANGE (12MM)
014
Honda
NUT, FLANGE (12MM)94050-12080
Required: 1
NUT, FLANGE (12MM)
Cross Ship
Leaves in 2-5 days
$2.72
$2.31
You save $0.41
More details
-15%
BOLT, FLANGE (6X10)
015
Honda
BOLT, FLANGE (6X10)95700-06010-08
Required: 3
BOLT, FLANGE (6X10)
Cross Ship
Leaves in 2-5 days
$1.96
$1.67
You save $0.29
More details
-20%
BOLT, FLANGE (6X10)
015
Honda
BOLT, FLANGE (6X10)95701-06010-08
Required: 3
BOLT, FLANGE (6X10)
Cross Ship
Leaves in 2-5 days
$1.96
$1.57
You save $0.39
More details
-15%
BOLT, FLANGE (6X12)
016
Honda
BOLT, FLANGE (6X12)95701-06012-08
Required: 2
BOLT, FLANGE (6X12)
Cross Ship
Leaves in 2-5 days
$2.04
$1.73
You save $0.31
More details
BOLT, FLANGE (6X32)
017
Honda
BOLT, FLANGE (6X32)95800-06032-08
Required: 3
BOLT, FLANGE (6X32)
Price unavailable
-15%
BOLT, FLANGE (6X20)
018
Honda
BOLT, FLANGE (6X20)96001-06020-00
Required: 1
BOLT, FLANGE (6X20)
Cross Ship
Leaves in 2-5 days
$1.52
$1.29
You save $0.23
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
