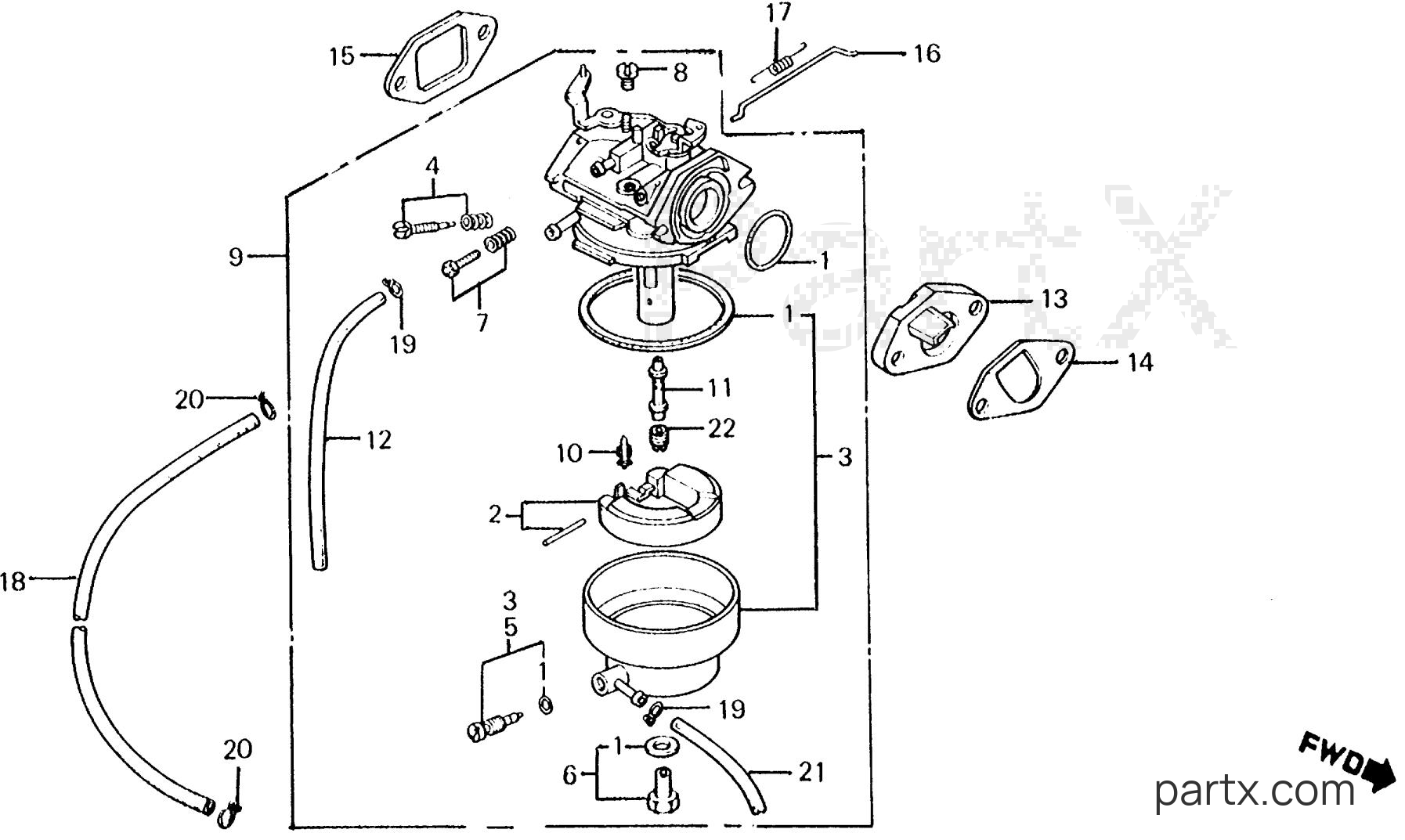

All Years Generator EX - EX800 A CARBURETOR diagram
001
Honda
GASKET SET (NOT AVAILABLE)16010-ZA7-005
Required: 1
GASKET SET (NOT AVAILABLE)
Price unavailable
-15%
$31.99
You save $5.65
003
Honda
CHAMBER SET, FLOAT (NOT AVAILABLE)16015-ZA7-005
Required: 1
CHAMBER SET, FLOAT (NOT AVAILABLE)
Price unavailable
004
Honda
SCREW SET A (NOT AVAILABLE)16016-892-005
Required: 1
SCREW SET A (NOT AVAILABLE)
Price unavailable
005
Honda
SCREW SET, DRAIN (NOT AVAILABLE)16024-ZA7-005
Required: 1
SCREW SET, DRAIN (NOT AVAILABLE)
Price unavailable
-15%
$11.17
You save $1.97
007
Honda
SCREW SET B (NOT AVAILABLE)16028-892-005
Required: 1
SCREW SET B (NOT AVAILABLE)
Price unavailable
008
Honda
SCREW, PLUG (NOT AVAILABLE)16071-881-003
Required: 1
SCREW, PLUG (NOT AVAILABLE)
Price unavailable
009
Honda
CARBURETOR ASSY. (BB08D A) (NOT AVAILABLE)16100-ZA7-005
Required: 1
CARBURETOR ASSY. (BB08D A) (NOT AVAILABLE)
Price unavailable
-15%
010
Honda
VALVE, FLOAT16155-883-005
Required: 1
VALVE, FLOAT
$22.12
You save $3.90
011
Honda
NOZZLE, MAIN (NOT AVAILABLE)16166-ZA7-005
Required: 1
NOZZLE, MAIN (NOT AVAILABLE)
Price unavailable
012
Honda
TUBE, AIR VENT (NOT AVAILABLE)16199-ZA7-005
Required: 1
TUBE, AIR VENT (NOT AVAILABLE)
Price unavailable
013
Honda
INSULATOR, CARBURETOR (NOT AVAILABLE)16211-ZA7-000
Required: 1
INSULATOR, CARBURETOR (NOT AVAILABLE)
Price unavailable
014
Honda
GASKET, INSULATOR (NOT AVAILABLE)16212-896-000
Required: 1
GASKET, INSULATOR (NOT AVAILABLE)
Price unavailable
-15%
015
Honda
GASKET, AIR CLEANER16269-892-306
Required: 1
GASKET, AIR CLEANER
$1.99
You save $0.35
016
Honda
ROD, GOVERNOR (NOT AVAILABLE)16555-896-000
Required: 1
ROD, GOVERNOR (NOT AVAILABLE)
Price unavailable
017
Honda
SPRING, THROTTLE RETURN16562-ZA7-000
Required: 1
SPRING, THROTTLE RETURN
Price unavailable
-50%
018
Honda
BULK HOSE (4.5X1000)95001-45001-50M
Required: 1
BULK HOSE, FUEL (4.5X1000) OEM CUT SIZE: (4.5X400)
In stock
Only 1 remaining
$24.75
You save $24.75
-15%
019
Honda
CLIP, TUBE (B6.5)95002-02650
Required: 2
CLIP, TUBE (B6.5)
$1.53
You save $0.27
-15%
020
Honda
CLAMP, TUBE (D8.5)95002-40850-08
Required: 2
CLAMP, TUBE (D8.5)
$2.62
You save $0.46
-15%
021
Honda
BULK HOSE (4X7X8000)95003-07008-60M
Required: 1
BULK HOSE, VINYL (4X7X8000) OEM CUT SIZE: (4X7X160)
$29.38
You save $5.18
-15%
022
Honda
JET, MAIN (#52)99101-124-0520
Required: 1
JET, MAIN (#52)
$10.27
You save $1.81
-15%
022
Honda
JET, MAIN (#55)99101-124-0550
Required: 1
JET, MAIN (#55)
$9.86
You save $1.74
-15%
022
Honda
JET, MAIN (#58)99101-124-0580
Required: 1
JET, MAIN (#58)
$9.33
You save $1.65
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
