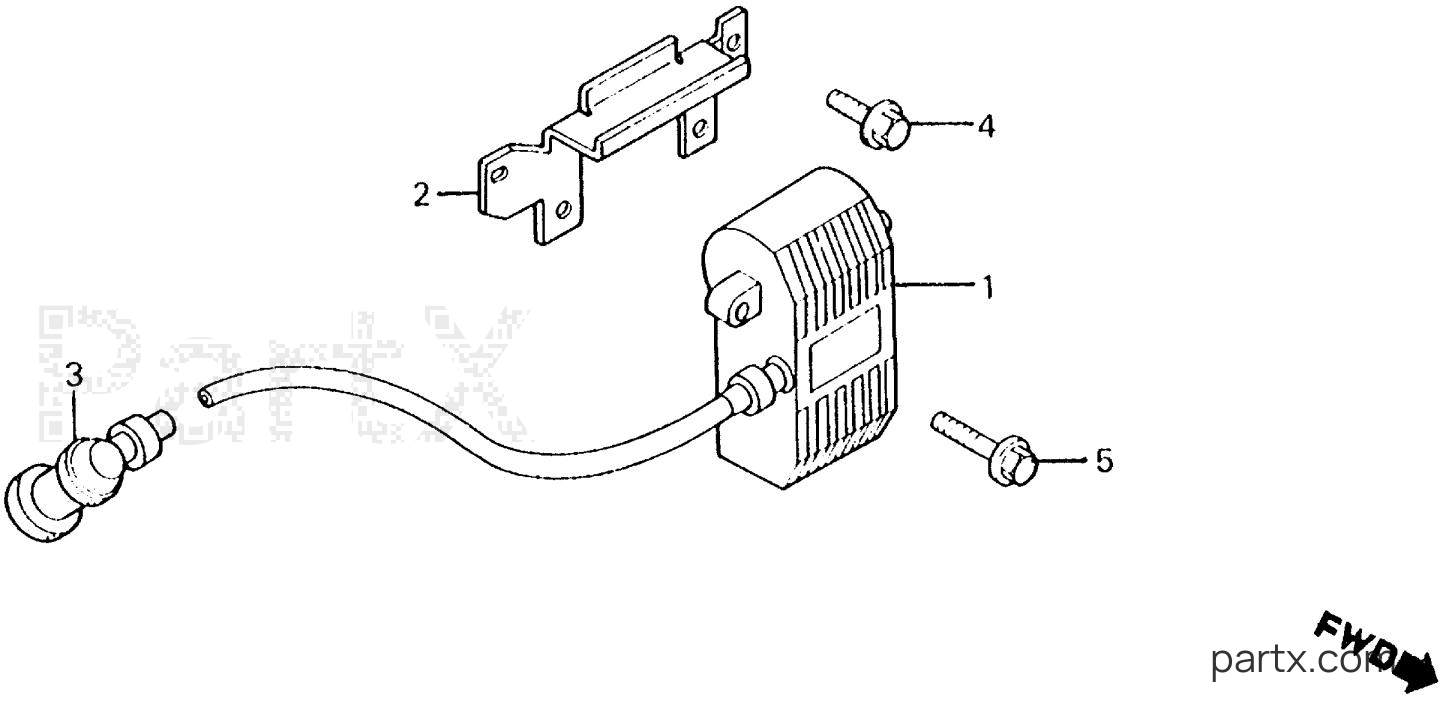

All Years Generator EX - EX800 A C.D.I. UNIT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Change View:

MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE)

001

Honda

MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE)30580-ZA7-003

Required: 1

MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE)

Price unavailable

STAY, IGNITION CONTROL MODULE (CDI) (NOT AVAILABLE)

002

Honda

STAY, IGNITION CONTROL MODULE (CDI) (NOT AVAILABLE)30581-ZA7-000

Required: 1

STAY, IGNITION CONTROL MODULE (CDI) (NOT AVAILABLE)

Price unavailable

003

Honda

CAP ASSY., NOISE SUPPRESSOR30700-896-702

Required: 1

CAP ASSY., NOISE SUPPRESSOR

Price unavailable

-15%

004

Honda

BOLT, FLANGE (6X10)95700-06010-08

Required: 2

BOLT, FLANGE (6X10)

~~$1.96~~

$1.67

You save $0.29

More details

-20%

004

Honda

BOLT, FLANGE (6X10)95701-06010-08

Required: 2

BOLT, FLANGE (6X10)

~~$1.96~~

$1.57

You save $0.39

More details

-15%

005

Honda

BOLT, FLANGE (6X20)95701-06020-08

Required: 2

BOLT, FLANGE (6X20)

~~$0.48~~

$0.41

You save $0.07

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
