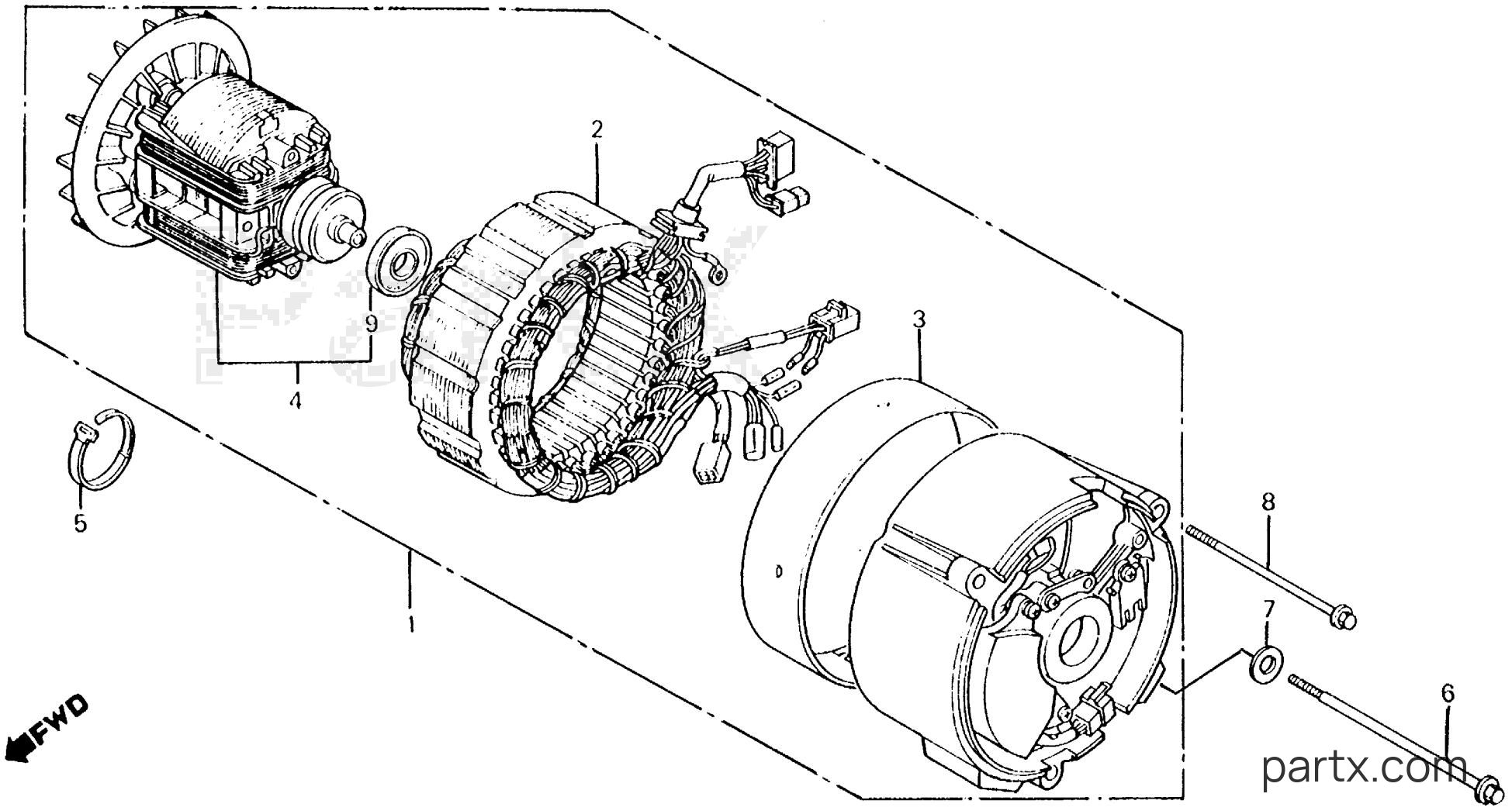

Honda EX800 A - ALTERNATOR
Change View:
GENERATOR ASSY. *NH105* (EX-A)(MAT BLACK) (NOT AVAILABLE)
001
Honda
GENERATOR ASSY. *NH105* (EX-A)(MAT BLACK) (NOT AVAILABLE)31100-ZA7-631ZA
Required: 1
GENERATOR ASSY. *NH105* (EX-A)(MAT BLACK) (NOT AVAILABLE)
Price unavailable
STATOR ASSY. (EX-A) (NOT AVAILABLE)
002
Honda
STATOR ASSY. (EX-A) (NOT AVAILABLE)31120-ZA7-631
Required: 1
STATOR ASSY. (EX-A) (NOT AVAILABLE)
Price unavailable
COVER, STATOR *NH105*(MAT BLACK) (NOT AVAILABLE)
003
Honda
COVER, STATOR *NH105*(MAT BLACK) (NOT AVAILABLE)31127-ZA7-003ZA
Required: 1
COVER, STATOR *NH105*(MAT BLACK) (NOT AVAILABLE)
Price unavailable
ROTOR (NOT AVAILABLE)
004
Honda
ROTOR (NOT AVAILABLE)31130-ZA7-003
Required: 1
ROTOR (NOT AVAILABLE)
Price unavailable
BAND, WIRE (NOT AVAILABLE)
005
Honda
BAND, WIRE (NOT AVAILABLE)32161-MA0-000
Required: 1
BAND, WIRE (NOT AVAILABLE)
Price unavailable
BOLT, HEX. (8X154) (NOT AVAILABLE)
006
Honda
BOLT, HEX. (8X154) (NOT AVAILABLE)90005-ZA7-000
Required: 1
BOLT, HEX. (8X154) (NOT AVAILABLE)
Price unavailable
-20%
WASHER, PLAIN (8MM)
007
Honda
WASHER, PLAIN (8MM)94103-08000
Required: 1
WASHER, PLAIN (8MM)
Cross Ship
Leaves in 2-5 days
$0.80
$0.64
You save $0.16
More details
BOLT, FLANGE (6X125)
008
Honda
BOLT, FLANGE (6X125)95700-06125-00
Required: 3
BOLT, FLANGE (6X125)
Price unavailable
-20%
BEARING (6002UU)
009
Honda
BEARING (6002UU)96150-60020-10
Required: 1
BEARING, RADIAL BALL (6002UU)
Cross Ship
Leaves in 2-5 days
$17.48
$13.98
You save $3.50
More details
