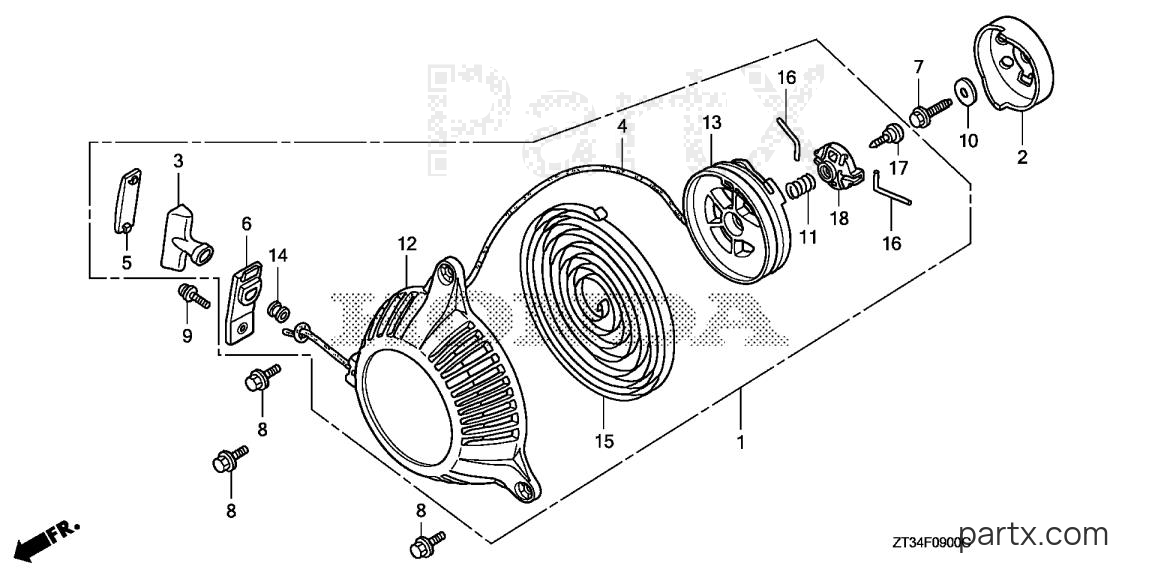

All Years Generator EU - EU1000IK1 A RECOIL STARTER diagram
-15%
001
Honda
STARTER, RECOIL28400-ZT3-003
Required: 1
STARTER ASSY., RECOIL (NOT AVAILABLE)
$28.41
You save $5.01
-15%
002
Honda
PULLEY28451-ZM7-003
Required: 1
PULLEY, RECOIL STARTER
$10.95
You save $1.93
-15%
003
Honda
GRIP, STARTER28461-ZA8-003
Required: 1
GRIP, STARTER (NOT AVAILABLE)
$11.08
You save $1.96
-15%
004
Honda
ROPE, RECOIL STARTER28462-ZT3-003
Required: 1
ROPE, RECOIL STARTER
$5.20
You save $0.92
005
Honda
COVER, GRIP (NOT AVAILABLE)28464-ZA8-003
Required: 1
COVER, GRIP (NOT AVAILABLE)
Price unavailable
-15%
006
Honda
GUIDE, STARTER ROPE28475-ZT3-000
Required: 1
GUIDE, STARTER ROPE
$6.95
You save $1.23
-15%
007
Honda
BOLT (6X16) (CT200)90029-888-000
Required: 1
BOLT, FLANGE (6X16) (CT200)
$2.33
You save $0.41
-15%
008
Honda
BOLT, FLANGE (5X10)90196-MN5-000
Required: 3
BOLT, FLANGE (5X10)
$2.31
You save $0.41
-15%
009
Honda
SCREW-WASHER (5X10)93891-05010-07
Required: 1
SCREW-WASHER (5X10)
$0.85
You save $0.15
-15%
010
Honda
WASHER, PLAIN (6MM)94103-06800
Required: 1
WASHER, PLAIN (6MM)
$0.82
You save $0.14
-15%
011
Honda
SPRING, FRICTION28404-968-004
Required: 1
SPRING, FRICTION
$3.84
You save $0.68
-15%
012
Honda
CASE, RECOIL STARTER28414-ZM7-003
Required: 1
CASE, RECOIL STARTER
$18.82
You save $3.32
-15%
013
Honda
REEL, RECOIL STARTER28421-ZM7-003
Required: 1
REEL, RECOIL STARTER
$6.53
You save $1.15
-15%
014
Honda
GUIDE, ROPE28433-ZM3-003
Required: 1
GUIDE, ROPE
$1.84
You save $0.32
-15%
015
Honda
SPRING28442-ZL8-003
Required: 1
SPRING, RECOIL STARTER
$6.75
You save $1.19
-15%
$3.55
You save $0.63
-15%
017
Honda
SCREW, SETTING90012-ZM3-003
Required: 1
SCREW, SETTING
$1.55
You save $0.27
-15%
$1.31
You save $0.23
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
