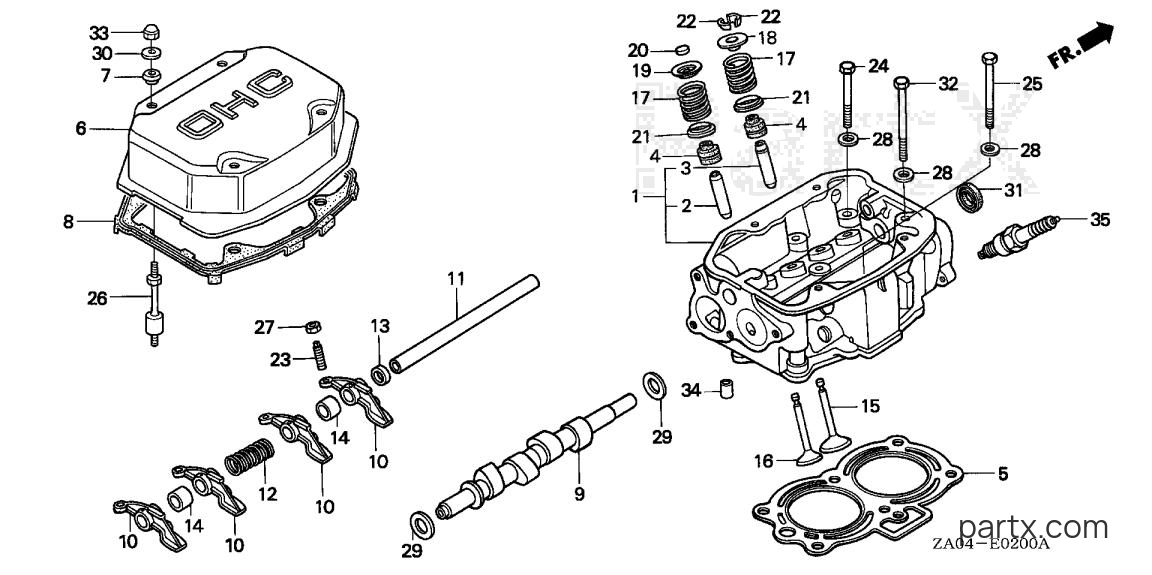

All Years Generator EX - EX5500K2 A/C CYLINDER HEAD diagram
001
Honda
CYLINDER HEAD (NOT AVAILABLE)12200-ZA0-000
Required: 1
CYLINDER HEAD (NOT AVAILABLE)
Price unavailable
002
Honda
GUIDE, EX. VALVE (OVER SIZE)12204-ZA0-305
Required: 2
GUIDE, EX. VALVE (OVER SIZE)
Price unavailable
-15%
002
Honda
GUIDE, EX VLV (OS)12204-ZA0-315
Required: 2
GUIDE, EX. VALVE (OVER SIZE)
$12.38
You save $2.18
-15%
003
Honda
GUIDE, VALVE (OS)12205-ZA0-306
Required: 2
GUIDE, VALVE (OVER SIZE)
$13.99
You save $2.47
-15%
004
Honda
SEAL, VALVE STEM12209-422-005
Required: 2
SEAL, VALVE STEM
$16.03
You save $2.83
-20%
005
Honda
GASKET, CYL HD12251-ZA0-800
Required: 1
GASKET, CYLINDER HEAD
In stock
Only 2 remaining
$57.42
You save $14.36
-15%
006
Honda
COVER, CYLINDER HEAD12310-ZA0-010
Required: 1
COVER, CYLINDER HEAD
$56.88
You save $10.04
-15%
007
Honda
WASHER, HEAD COVER12320-ZA0-000
Required: 4
WASHER, HEAD COVER
$4.39
You save $0.77
-15%
008
Honda
GASKET, HEAD COVER12391-ZA0-000
Required: 1
GASKET, HEAD COVER
$33.58
You save $5.92
009
Honda
CAMSHAFT14101-ZA0-000
Required: 1
CAMSHAFT
Price unavailable
-15%
010
Honda
ARM, VALVE ROCKER14431-ZA0-010
Required: 4
ARM, VALVE ROCKER
$16.37
You save $2.89
-15%
011
Honda
SHAFT, VLV RKARM14451-881-000
Required: 1
SHAFT, VALVE ROCKER ARM
$18.41
You save $3.25
-15%
012
Honda
SPRING, VLV RKARM14481-881-000
Required: 1
SPRING, VALVE ROCKER ARM
$4.93
You save $0.87
-15%
013
Honda
COLLAR A, VLV RKARM14482-881-000
Required: 1
COLLAR A, VALVE ROCKER ARM
$3.03
You save $0.53
-15%
014
Honda
COLLAR B, VLV RKARM14483-881-000
Required: 2
COLLAR B, VALVE ROCKER ARM
$3.50
You save $0.62
-15%
$17.63
You save $3.11
016
Honda
VALVE, EX.14721-ZA0-003
Required: 2
VALVE, EX.
Price unavailable
-15%
$35.21
You save $6.21
-15%
017
Honda
SPRING, VALVE14753-921-010
Required: 4
SPRING, VALVE
$5.02
You save $0.88
-15%
018
Honda
RETAINER, VLV SPR14771-881-000
Required: 2
RETAINER, VALVE SPRING (NOT AVAILABLE)
$4.23
You save $0.75
-15%
019
Honda
RETAINER, VLV SPR14771-935-810
Required: 2
RETAINER, VALVE SPRING
$8.91
You save $1.57
-15%
020
Honda
ROTATOR, VALVE14772-881-000
Required: 2
ROTATOR, VALVE
$3.88
You save $0.68
-15%
021
Honda
SEAT, VALVE SPRING14775-921-000
Required: 4
SEAT, VALVE SPRING
$1.90
You save $0.34
-15%
022
Honda
COTTER, VALVE14781-235-000
Required: 4
COTTER, VALVE
$2.94
You save $0.52
-20%
023
Honda
SCREW, TAPPET ADJ90012-333-000
Required: 4
SCREW, TAPPET ADJUSTING
$2.82
You save $0.70
-15%
024
Honda
BOLT, HEAD (8X70)90017-935-000
Required: 3
BOLT, HEAD (8X70)
$2.21
You save $0.39
-15%
025
Honda
BOLT, HEX. (8X55)90019-881-000
Required: 2
BOLT, HEX. (8X55)
$2.69
You save $0.47
-15%
026
Honda
BOLT, SPECIAL STUD90041-ZA0-010
Required: 4
BOLT, SPECIAL STUD
$6.07
You save $1.07
-15%
027
Honda
NUT, TAPPET ADJ90206-001-000
Required: 4
NUT, TAPPET ADJUSTING
$1.80
You save $0.32
-15%
028
Honda
WASHER, HEAD (8MM)90402-822-000
Required: 6
WASHER, HEAD (8MM)
$1.48
You save $0.26
-15%
029
Honda
WASHER (16MM)90453-235-000
Required: 2
WASHER, THRUST (16MM)
$1.99
You save $0.35
-15%
030
Honda
WASHER90474-704-000
Required: 4
WASHER (6X17)
$1.55
You save $0.27
-15%
031
Honda
OIL SEAL (16X28X6)91206-921-000
Required: 1
OIL SEAL (16X28X6)
In stock
Only 1 remaining
$7.43
You save $1.31
-15%
032
Honda
BOLT, HEX. (8X100)92200-08100-0H
Required: 1
BOLT, HEX. (8X100)
$2.21
You save $0.39
-15%
033
Honda
NUT, CAP (6MM)94021-06020
Required: 4
NUT, CAP (6MM)
$1.89
You save $0.33
-15%
034
Honda
PIN, DOWEL (10X16)94301-10160
Required: 2
PIN, DOWEL (10X16)
$2.55
You save $0.45
-15%
035
Honda
SPARK PLUG98076-56917
Required: 2
SPARK PLUG
$2.58
You save $0.46
-15%
035
Honda
S/PLG (W20FPR-U10)98076-56927
Required: 2
SPARK PLUG (W20FPR-U10) (DENSO)
$2.72
You save $0.48
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
