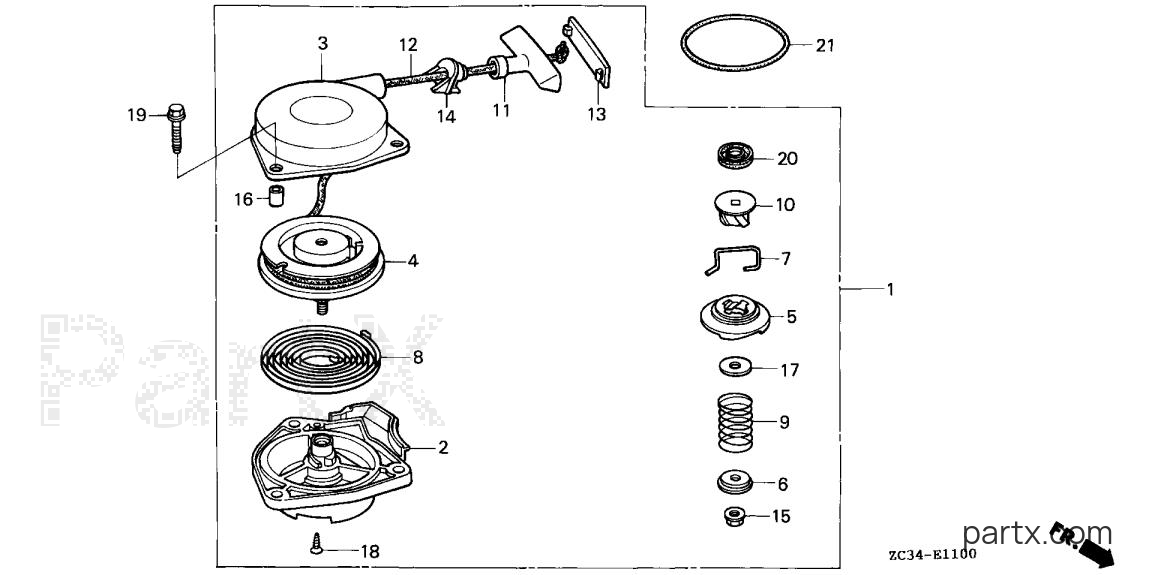

All Years Generator EX - EX350 A RECOIL STARTER diagram
001
Honda
STARTER ASSY., RECOIL (NOT AVAILABLE)28400-ZC3-003
Required: 1
STARTER ASSY., RECOIL (NOT AVAILABLE)
Price unavailable
002
Honda
CASE, RECOIL STARTER (NOT AVAILABLE)28410-ZC3-003
Required: 1
CASE, RECOIL STARTER (NOT AVAILABLE)
Price unavailable
-15%
003
Honda
CVR, RECOIL STARTER28411-ZC3-003
Required: 1
COVER, RECOIL STARTER (NOT AVAILABLE)
$13.96
You save $2.46
004
Honda
REEL, RECOIL STARTER (NOT AVAILABLE)28420-ZC3-003
Required: 1
REEL, RECOIL STARTER (NOT AVAILABLE)
Price unavailable
005
Honda
RATCHET, STARTER (NOT AVAILABLE)28422-ZC3-003
Required: 1
RATCHET, STARTER (NOT AVAILABLE)
Price unavailable
-15%
006
Honda
PLATE, FRICTION28431-ZC3-003
Required: 1
PLATE, FRICTION
$3.38
You save $0.60
007
Honda
SPRING, FRICTION (NOT AVAILABLE)28441-ZC3-003
Required: 1
SPRING, FRICTION (NOT AVAILABLE)
Price unavailable
008
Honda
SPRING, STARTER RETURN (NOT AVAILABLE)28442-ZC3-003
Required: 1
SPRING, STARTER RETURN (NOT AVAILABLE)
Price unavailable
-15%
009
Honda
SPRING, RETURN28443-ZC3-003
Required: 1
SPRING, RETURN
$2.94
You save $0.52
-15%
010
Honda
GUIDE, RATCHET28458-ZC3-003
Required: 1
GUIDE, RATCHET
$6.00
You save $1.06
-15%
011
Honda
GRIP, STARTER28461-ZA8-003
Required: 1
GRIP, STARTER (NOT AVAILABLE)
$11.08
You save $1.96
012
Honda
ROPE, RECOIL STARTER (NOT AVAILABLE)28462-ZC3-003
Required: 1
ROPE, RECOIL STARTER (NOT AVAILABLE)
Price unavailable
013
Honda
COVER, GRIP (NOT AVAILABLE)28464-ZA8-003
Required: 1
COVER, GRIP (NOT AVAILABLE)
Price unavailable
-15%
014
Honda
GUIDE, STARTER ROPE28475-ZC3-000
Required: 1
GUIDE, STARTER ROPE (NOT AVAILABLE)
$7.91
You save $1.40
-15%
$1.38
You save $0.24
016
Honda
COLLAR (NOT AVAILABLE)90005-ZC3-003
Required: 3
COLLAR (NOT AVAILABLE)
Price unavailable
017
Honda
WASHER (NOT AVAILABLE)90006-ZC3-003
Required: 1
WASHER (NOT AVAILABLE)
Price unavailable
018
Honda
SCREW, TAPPING (NOT AVAILABLE)90007-ZC3-003
Required: 1
SCREW, TAPPING (NOT AVAILABLE)
Price unavailable
-15%
019
Honda
BOLT, FLANGE (6X20)90020-ZC3-000
Required: 3
BOLT, FLANGE (6X20)
$2.01
You save $0.35
020
Honda
OIL SEAL (10X19X5) (NOT AVAILABLE)91232-ZC3-003
Required: 1
OIL SEAL (10X19X5) (NOT AVAILABLE)
Price unavailable
021
Honda
O-RING (58X2.5) (NOT AVAILABLE)91303-ZC3-004
Required: 1
O-RING (58X2.5) (NOT AVAILABLE)
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
