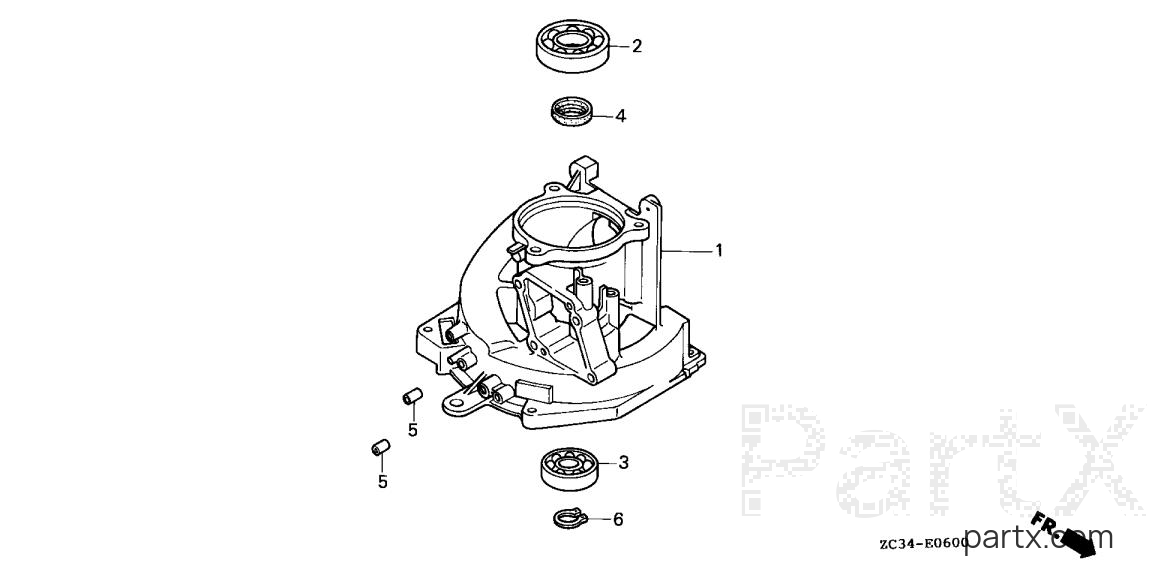

All Years Generator EX - EX350 A CRANKCASE diagram
-15%
001
Honda
CRANKCASE11101-ZC3-040
Required: 1
CRANKCASE (NOT AVAILABLE)
$164.56
You save $29.04
-15%
001
Honda
CRANKCASE111A0-ZC3-030
Required: 1
CRANKCASE (NOT AVAILABLE)
$164.54
You save $29.04
002
Honda
BEARING, RADIAL BALL (60/22)91007-ZC3-003
Required: 1
BEARING, RADIAL BALL (60/22)
Price unavailable
002
Honda
BEARING, RADIAL BALL (60/22) (NOT AVAILABLE)91007-ZC3-013
Required: 1
BEARING, RADIAL BALL (60/22) (NOT AVAILABLE)
Price unavailable
003
Honda
BEARING, RADIAL BALL (6002)91008-ZC3-003
Required: 1
BEARING, RADIAL BALL (6002)
Price unavailable
-15%
003
Honda
BEARING (6002)91008-ZC3-023
Required: 1
BEARING, RADIAL BALL (6002) (NOT AVAILABLE)
$11.80
You save $2.08
004
Honda
OIL SEAL (16X26X7) (NOT AVAILABLE)91201-ZC3-003
Required: 1
OIL SEAL (16X26X7) (NOT AVAILABLE)
Price unavailable
-15%
005
Honda
PIN C, DOWEL (4X6.5)94303-04065
Required: 2
PIN C, DOWEL (4X6.5)
$2.33
You save $0.41
-15%
006
Honda
CIRCLIP (15MM)94511-15000
Required: 1
CIRCLIP, OUTER (15MM)
$0.71
You save $0.13
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
