All diagrams for this model

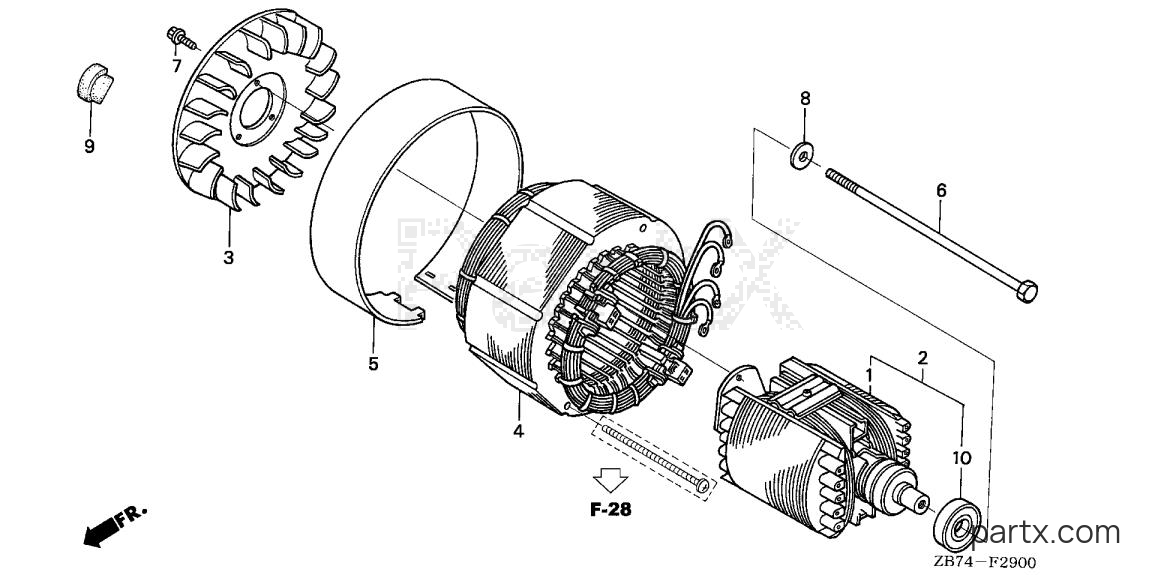

All Years Generator EX - EX3300S A ROTOR - STATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Honda EX3300S A - ROTOR - STATOR
Change View:
ROTOR
001
Honda
ROTOR311A3-ZB4-003
Required: 1
ROTOR
Price unavailable
-15%
ROTOR
002
Honda
ROTOR31130-ZB4-023
Required: 1
ROTOR
Cross Ship
Leaves in 2-5 days
$835.78
$710.41
You save $125.37
More details
-15%
FAN, GEN COOL
003
Honda
FAN, GEN COOL31112-ZB4-003
Required: 1
FAN, GENERATOR COOLING
Cross Ship
Leaves in 2-5 days
$111.80
$95.03
You save $16.77
More details
STATOR ASSY. (NOT AVAILABLE)
004
Honda
STATOR ASSY. (NOT AVAILABLE)31120-ZB4-631
Required: 1
STATOR ASSY. (NOT AVAILABLE)
Price unavailable
COVER, STATOR (NOT AVAILABLE)
005
Honda
COVER, STATOR (NOT AVAILABLE)31127-ZB4-003
Required: 1
COVER, STATOR (NOT AVAILABLE)
Price unavailable
-15%
COVER, STATOR
005
Honda
COVER, STATOR31127-ZB4-631
Required: 1
COVER, STATOR
Cross Ship
Leaves in 2-5 days
$41.88
$35.60
You save $6.28
More details
-15%
BOLT, HEX. (10X210)
006
Honda
BOLT, HEX. (10X210)90021-ZB4-000
Required: 1
BOLT, HEX. (10X210)
Cross Ship
Leaves in 2-5 days
$19.70
$16.74
You save $2.96
More details
-15%
SCREW, TAP (5X14)
007
Honda
SCREW, TAP (5X14)90032-875-003
Required: 3
SCREW, TAPPING (5X14)
Cross Ship
Leaves in 2-5 days
$2.72
$2.31
You save $0.41
More details
-15%
WASHER (10.5MM)
008
Honda
WASHER (10.5MM)90504-ZA0-000
Required: 1
WASHER (10.5MM)
Cross Ship
Leaves in 2-5 days
$5.54
$4.71
You save $0.83
More details
-15%
GROMMET, CRANKCASE
009
Honda
GROMMET, CRANKCASE90855-ZB4-000
Required: 2
GROMMET, CRANKCASE
Cross Ship
Leaves in 2-5 days
$3.92
$3.33
You save $0.59
More details
-15%
BEARING ASSY. (6204)
010
Honda
BEARING ASSY. (6204)91051-ZB4-003
Required: 1
BEARING ASSY. (6204)
Cross Ship
Leaves in 2-5 days
$31.98
$27.18
You save $4.80
More details
-20%
BEARING (6204UU)
010
Honda
BEARING (6204UU)96150-62040-10
Required: 1
BEARING, RADIAL BALL (6204UU)
Cross Ship
Leaves in 2-5 days
$26.04
$20.83
You save $5.21
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
