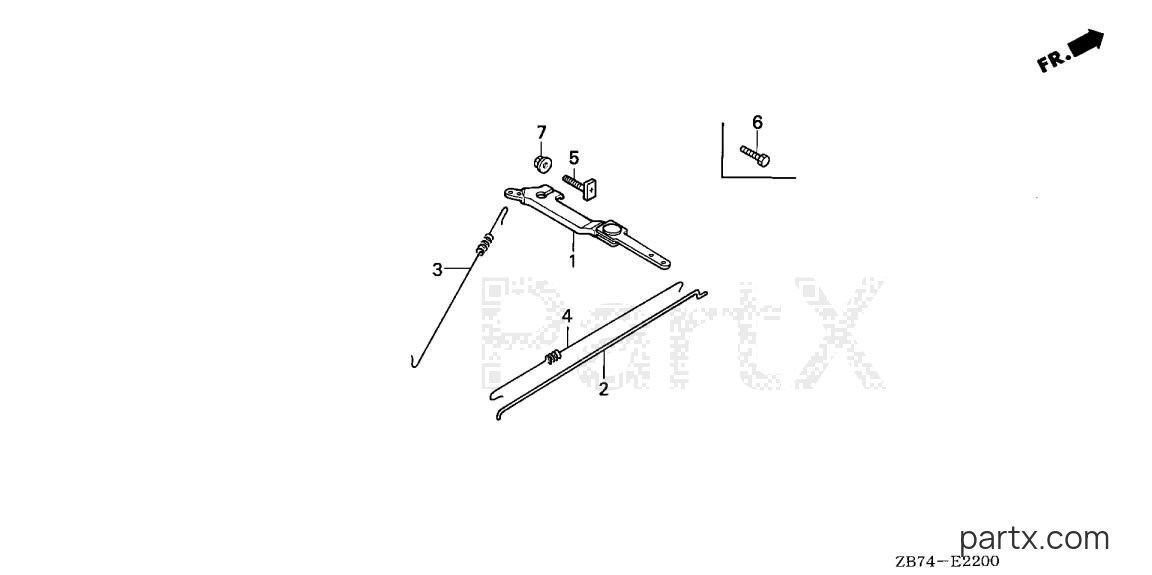

All Years Generator EX - EX3300S A GOVERNOR ARM diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Change View:

-15%

001

Honda

ARM, GOVERNOR16550-ZE2-700

Required: 1

ARM, GOVERNOR

~~$20.48~~

$17.41

You save $3.07

More details

-15%

002

Honda

ROD, GOVERNOR16555-ZB7-000

Required: 1

ROD, GOVERNOR

~~$5.22~~

$4.44

You save $0.78

More details

-15%

003

Honda

SPRING (L=145.0MM)16561-ZE2-000

Required: 1

SPRING, GOVERNOR (L=145.0MM) (WIRE DIAMETER 1.0MM)

~~$5.58~~

$4.74

You save $0.84

-15%

SPRING, THROTTLE RETURN

~~$4.86~~

$4.13

You save $0.73

More details

-50%

005

Honda

BOLT, GOVERNOR ARM90015-ZE5-010

Required: 1

BOLT, GOVERNOR ARM

In stock

Only 1 remaining

~~$3.06~~

$1.53

You save $1.53

More details

-15%

006

Honda

BOLT, HEX. (6X22)92101-06022-0A

Required: 1

BOLT, HEX. (6X22)

~~$1.88~~

$1.60

You save $0.28

More details

-20%

007

Honda

NUT, FLANGE (6MM)94050-06000

Required: 1

NUT, FLANGE (6MM)

~~$0.82~~

$0.66

You save $0.16

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

All Years Generator EX - EX3300S A GOVERNOR ARM diagram
