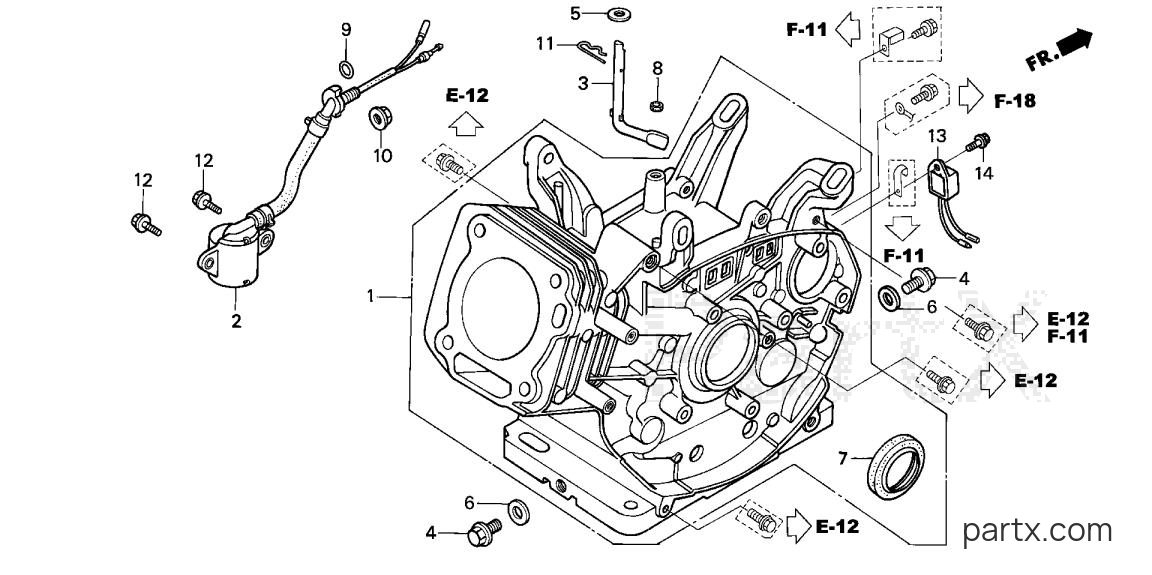

All Years Generator EX - EX3300SK1 A CYLINDER diagram
-15%
001
Honda
CYLINDER ASSY.12000-ZE2-407
Required: 1
CYLINDER ASSY. (SELF STARTER+ALERT)
$512.16
You save $90.38
002
Honda
SWITCH ASSY., OIL LEVEL15510-ZE2-023
Required: 1
SWITCH ASSY., OIL LEVEL
Price unavailable
002
Honda
SWITCH ASSY., OIL LEVEL15510-ZE2-033
Required: 1
SWITCH ASSY., OIL LEVEL
Price unavailable
-15%
002
Honda
SWITCH, OIL LEVEL15510-ZE2-043
Required: 1
SWITCH ASSY., OIL LEVEL
$51.87
You save $9.15
-15%
003
Honda
SHAFT, GOVERNOR ARM16541-ZE2-010
Required: 1
SHAFT, GOVERNOR ARM
$10.03
You save $1.77
-15%
004
Honda
BOLT, DRAIN (12X15)90131-896-650
Required: 2
BOLT, DRAIN PLUG (12X15)
$4.13
You save $0.73
-15%
005
Honda
WASHER (8.2X17X0.8)90446-KE1-000
Required: 1
WASHER (8.2X17X0.8)
$1.84
You save $0.32
-20%
006
Honda
WASHER, DRAIN (12MM)90601-ZE2-000
Required: 2
WASHER, DRAIN PLUG (12MM)
In stock
Only 1 remaining
$2.53
You save $0.63
-15%
006
Honda
WASHER, DRAIN (12MM)94109-12000
Required: 2
WASHER, DRAIN PLUG (12MM)
In stock
5+ in stock
$1.27
You save $0.23
-15%
007
Honda
OIL SEAL (30X46X8)91201-890-003
Required: 1
OIL SEAL (30X46X8)
$9.61
You save $1.70
-15%
008
Honda
OIL SEAL (8X14X5)91201-ZE9-003
Required: 1
OIL SEAL (8X14X5)
$4.34
You save $0.76
-20%
009
Honda
O-RING (13.5X1.5)91353-671-003
Required: 1
O-RING (13.5X1.5) (ARAI)
$2.80
You save $0.70
-15%
010
Honda
NUT, FLANGE (10MM)94050-10000
Required: 1
NUT, FLANGE (10MM)
$1.65
You save $0.29
-15%
011
Honda
PIN, LOCK (8MM)94251-08000
Required: 1
PIN, LOCK (8MM)
$1.27
You save $0.23
-20%
012
Honda
BOLT, FLANGE (6X12)95701-06012-00
Required: 2
BOLT, FLANGE (6X12)
In stock
Only 1 remaining
$1.58
You save $0.40
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
