All diagrams for this model

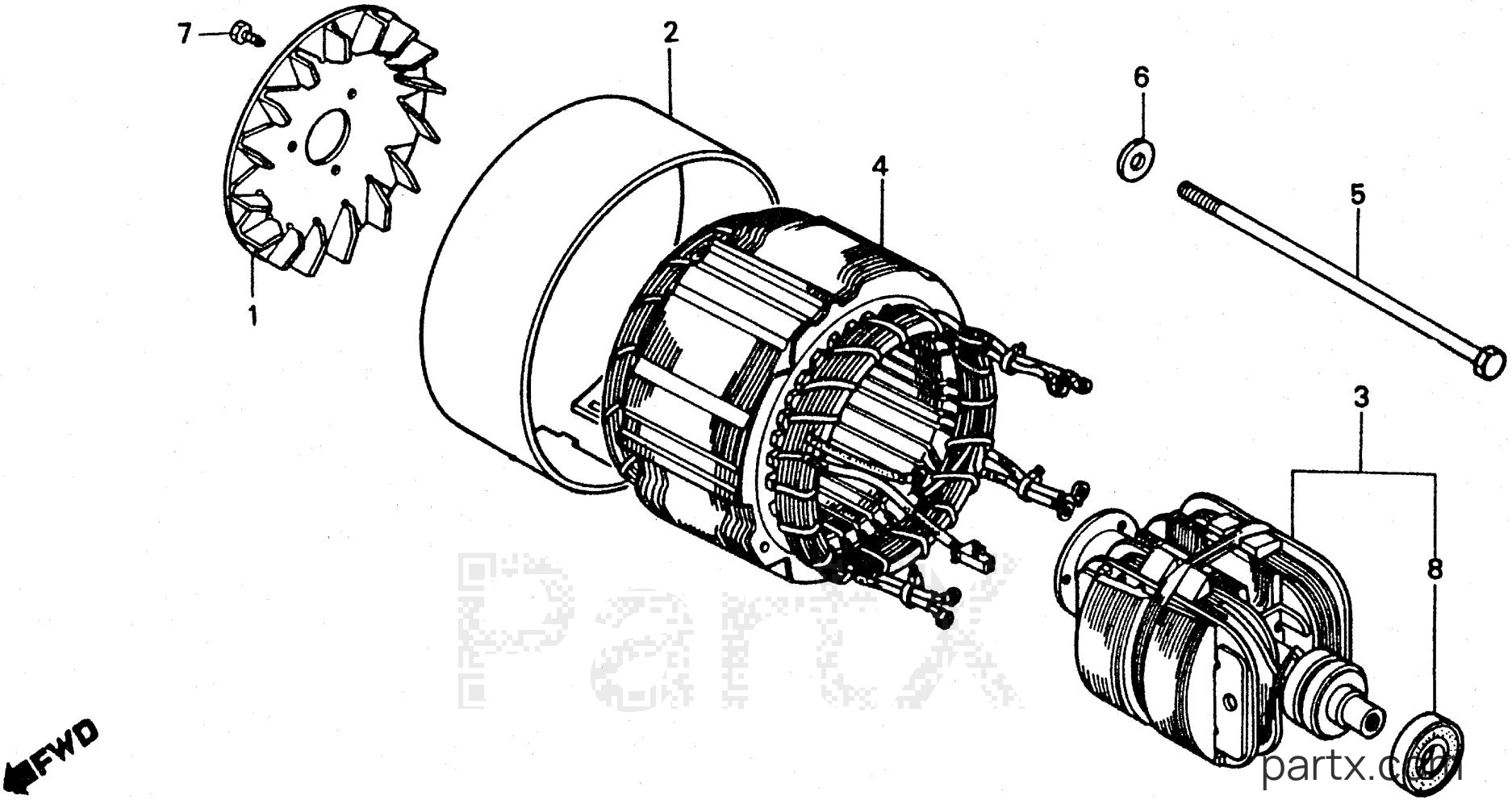

All Years Generator EW - EW170 A ROTOR - STATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Honda EW170 A - ROTOR - STATOR
Change View:
-15%
FAN
001
Honda
FAN31112-895-000
Required: 1
FAN
Cross Ship
Leaves in 2-5 days
$79.22
$67.34
You save $11.88
More details
COVER, STATOR *R8*(BRIGHT RED) (NOT AVAILABLE)
002
Honda
COVER, STATOR *R8*(BRIGHT RED) (NOT AVAILABLE)31127-ZA1-811H
Required: 1
COVER, STATOR *R8*(BRIGHT RED) (NOT AVAILABLE)
Price unavailable
ROTOR (NOT AVAILABLE)
003
Honda
ROTOR (NOT AVAILABLE)31130-ZA1-811
Required: 1
ROTOR (NOT AVAILABLE)
Price unavailable
ROTOR (NOT AVAILABLE)
003
Honda
ROTOR (NOT AVAILABLE)31130-ZA1-812
Required: 1
ROTOR (NOT AVAILABLE)
Price unavailable
STATOR ASSY. (NOT AVAILABLE)
004
Honda
STATOR ASSY. (NOT AVAILABLE)31140-ZA1-832
Required: 1
STATOR ASSY. (NOT AVAILABLE)
Price unavailable
BOLT, HEX. (10X270) (NOT AVAILABLE)
005
Honda
BOLT, HEX. (10X270) (NOT AVAILABLE)90021-ZA1-810
Required: 1
BOLT, HEX. (10X270) (NOT AVAILABLE)
Price unavailable
-15%
WASHER, PLAIN (10MM)
006
Honda
WASHER, PLAIN (10MM)90504-SA0-000
Required: 1
WASHER, PLAIN (10MM)
Cross Ship
Leaves in 2-5 days
$8.60
$7.31
You save $1.29
More details
-15%
SCREW, TAP (5X14)
007
Honda
SCREW, TAP (5X14)90032-875-003
Required: 3
SCREW, TAPPING (5X14)
Cross Ship
Leaves in 2-5 days
$2.72
$2.31
You save $0.41
More details
-15%
SCREW-WASHER (5X10)
007
Honda
SCREW-WASHER (5X10)93892-05010-08
Required: 3
SCREW-WASHER (5X10)
Cross Ship
Leaves in 2-5 days
$1.40
$1.19
You save $0.21
More details
-15%
BEARING (6205UU)
008
Honda
BEARING (6205UU)96150-62050-10
Required: 1
BEARING, RADIAL BALL (6205UU)
Cross Ship
Leaves in 2-5 days
$42.14
$35.82
You save $6.32
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
