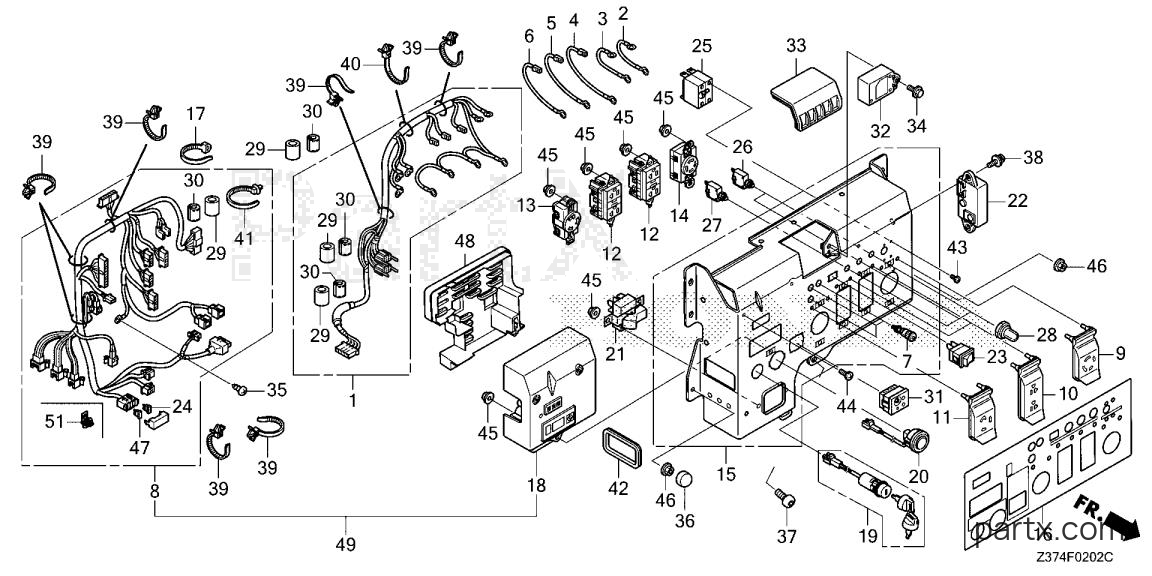

All Years Generator EU - EU7000ISN AG CONTROL PANEL (3) diagram
-15%
001
Honda
WIRE HARNESS, MAIN32100-Z37-R50
Required: 1
WIRE HARNESS ASSY., MAIN
$230.98
You save $40.76
-15%
002
Honda
SUB-WIRE ASSY.32101-Z37-A30
Required: 1
SUB-WIRE ASSY. (A)
$3.77
You save $0.67
-15%
003
Honda
SUB-WIRE ASSY.32102-Z37-A30
Required: 1
SUB-WIRE ASSY. (B)
$4.06
You save $0.72
-15%
004
Honda
SUB-WIRE ASSY.32106-Z37-A30
Required: 1
SUB-WIRE ASSY. (D)
$3.43
You save $0.61
-15%
005
Honda
SUB-WIRE ASSY.32107-Z37-C30
Required: 1
SUB-WIRE ASSY. (E)
$3.06
You save $0.54
-15%
006
Honda
SUB-WIRE ASSY.32108-Z37-C30
Required: 1
SUB-WIRE ASSY. (F)
$3.43
You save $0.61
-15%
007
Honda
SOCKET, COMPOSITE32139-Z37-A30
Required: 3
SOCKET, COMPOSITE
$66.71
You save $11.77
-15%
008
Honda
WIRE HARNESS, CONT32150-Z37-R51
Required: 1
WIRE HARNESS ASSY., CONTROL
$80.83
You save $14.27
-15%
009
Honda
COVER (30A-125/250V)32320-Z37-R50
Required: 1
COVER, RECEPTACLE (30A-125/250V)
$16.03
You save $2.83
-20%
010
Honda
COVER (20A-125V)32320-ZS9-W30
Required: 2
COVER, RECEPTACLE (20A-125V)
$15.55
You save $3.89
-15%
011
Honda
COVER (30A-125V)32321-ZS9-W30
Required: 1
COVER, RECEPTACLE (30A-125V)
$16.51
You save $2.91
-15%
012
Honda
RECPTL (20A-125V)32330-Z44-J32
Required: 2
RECEPTACLE (20A-125V) (GFCI)
$104.30
You save $18.41
-15%
013
Honda
RECPTL (30A/125V)32332-ZB4-630
Required: 1
RECEPTACLE (30A/125V)
$39.00
You save $6.88
-15%
013
Honda
RECPTL (30A-125V)32332-Z22-E31
Required: 1
RECEPTACLE (30A-125V) (LEVITON)
$74.94
You save $13.22
-15%
014
Honda
RECEPTACLE32334-ZA0-631
Required: 1
RECEPTACLE (30A/125-250V) (NOT AVAILABLE)
$27.12
You save $4.79
-15%
014
Honda
RECEPTACLE32334-Z22-A31
Required: 1
RECEPTACLE (30A-125/250V)
$89.54
You save $15.80
-15%
015
Honda
PANEL, CONTROL32345-Z37-R50
Required: 1
PANEL, CONTROL
$243.53
You save $42.97
-15%
016
Honda
MARK, PANEL32366-Z37-R50
Required: 1
MARK, PANEL
$15.10
You save $2.66
-15%
$7.46
You save $1.32
-15%
018
Honda
CONT UNIT, GENERATOR34110-Z37-R52
Required: 1
CONTROL UNIT, GENERATOR
$502.59
You save $88.69
-20%
019
Honda
SWITCH, COMBINATION35100-Z37-R51
Required: 1
SWITCH ASSY., COMBINATION
$14.42
You save $3.60
-15%
020
Honda
SWITCH ASSY., START35150-Z37-A32
Required: 1
SWITCH ASSY., START
$20.35
You save $3.59
-20%
021
Honda
SWITCH, VOLT CHANGE35320-Z11-A41
Required: 1
SWITCH ASSY., VOLT CHANGE
$101.95
You save $25.15
-15%
022
Honda
SENSING UNIT35610-Z37-PA0
Required: 1
SENSING UNIT (CO) (NOT AVAILABLE)
$812.43
You save $143.37
-15%
023
Honda
SWITCH36214-Z11-A01
Required: 1
SWITCH, AUTO-THROTTLE (OTAX)
$20.77
You save $3.67
-15%
024
Honda
FUSE, BLADE (3A)38206-797-A01
Required: 1
FUSE, BLADE (3A)
$2.23
You save $0.39
-15%
025
Honda
PROTR, CIRCUIT (30A)38220-Z37-A31
Required: 1
PROTECTOR, CIRCUIT (30A)
$64.74
You save $11.42
-15%
026
Honda
PROTR, CIRCUIT (20A)38240-Z11-A32
Required: 2
PROTECTOR, CIRCUIT (20A) (WHITE)(TYCO)
$32.57
You save $5.75
-15%
026
Honda
PROTR, CIRCUIT (20A)38240-Z25-A30
Required: 2
PROTECTOR, CIRCUIT (20A) (BLACK)(JOEMEX)
$92.14
You save $16.26
-15%
027
Honda
PROTR, CIRCUIT (30A)38241-Z11-A32
Required: 1
PROTECTOR, CIRCUIT (30A) (WHITE)
$32.81
You save $5.79
-15%
027
Honda
PROTR, CIRCUIT (30A)38241-Z25-A30
Required: 1
PROTECTOR, CIRCUIT (30A) (BLACK)
$92.14
You save $16.26
-15%
028
Honda
COVER38242-Z25-A62
Required: 3
COVER, CIRCUIT PROTECTOR
$15.11
You save $2.67
-15%
029
Honda
SUPPORTER, FILTER38398-Z07-C60
Required: 4
SUPPORTER, FILTER
$3.84
You save $0.68
-15%
030
Honda
FILTER, SUB NOISE38398-Z37-000
Required: 4
FILTER, SUB NOISE (AC)
$12.58
You save $2.22
-15%
031
Honda
LED ASSY., INDICATER38530-ZS9-W32
Required: 1
LED ASSY., INDICATER
$28.63
You save $5.05
-15%
032
Honda
UNIT KIT, BLUETOOTH06391-Z22-C31
Required: 1
UNIT KIT, BLUETOOTH (ISOLATE)
$140.26
You save $24.75
-15%
033
Honda
CVR, BLUETOOTH UNIT39161-Z37-R50
Required: 1
COVER, BLUETOOTH UNIT
$13.28
You save $2.34
-15%
034
Honda
BOLT, FLANGE (5X14)90003-MEL-000
Required: 1
BOLT, FLANGE (5X14)
$1.39
You save $0.25
-15%
035
Honda
SCREW, TAP (5X12)90031-875-000
Required: 1
SCREW, TAPPING (5X12)
$3.21
You save $0.57
-15%
036
Honda
CAP, BOLT (6MM)90083-ZY3-A01
Required: 1
CAP, BOLT (6MM)
$4.39
You save $0.77
-15%
037
Honda
BOLT (6X10)90106-ZS9-W30
Required: 1
BOLT, FLANGE TORX (6X10)
$3.25
You save $0.57
-15%
038
Honda
BOLT-WASHER (5X15)90107-ZS9-W30
Required: 2
BOLT-WASHER (5X15) (TORX)
$3.32
You save $0.58
-15%
039
Honda
STRAP, CABLE (105MM)90672-SB2-003
Required: 7
STRAP, CABLE (105MM) (BLACK)
$5.95
You save $1.05
-15%
040
Honda
BAND, WIRE HARNESS90676-Z26-003
Required: 1
BAND, WIRE HARNESS
$3.40
You save $0.60
-15%
041
Honda
CLIP (145MM)91541-S0A-003
Required: 1
CLIP, HARNESS BAND (145MM) (BLACK)
$4.11
You save $0.73
-15%
042
Honda
GROMMET91654-Z11-000
Required: 1
GROMMET, CONTROL HARNESS
$4.62
You save $0.82
043
Honda
SCREW, PAN (3X5)93500-03005-0G
Required: 4
SCREW, PAN (3X5)
Price unavailable
-15%
044
Honda
SCREW, PAN (5X12)93500-05012-0G
Required: 2
SCREW, PAN (5X12)
$0.94
You save $0.17
-15%
045
Honda
NUT, FLANGE (4MM)94050-04000
Required: 11
NUT, FLANGE (4MM)
$1.27
You save $0.23
-50%
046
Honda
NUT, FLANGE (6MM)94050-06080
Required: 2
NUT, FLANGE (6MM)
In stock
Only 5 remaining
$0.41
You save $0.41
-15%
047
Honda
FUSE, BLADE (15A)98200-31500
Required: 1
FUSE, BLADE (15A)
$1.36
You save $0.24
-15%
048
Honda
COVER34115-Z37-000
Required: 1
COVER, GENERATOR CONTROL UNIT
$6.95
You save $1.23
-15%
049
Honda
UNIT KIT06340-Z37-R50
Required: 1
UNIT KIT, GENERATOR CONTROL (AG)
$301.38
You save $53.18
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
