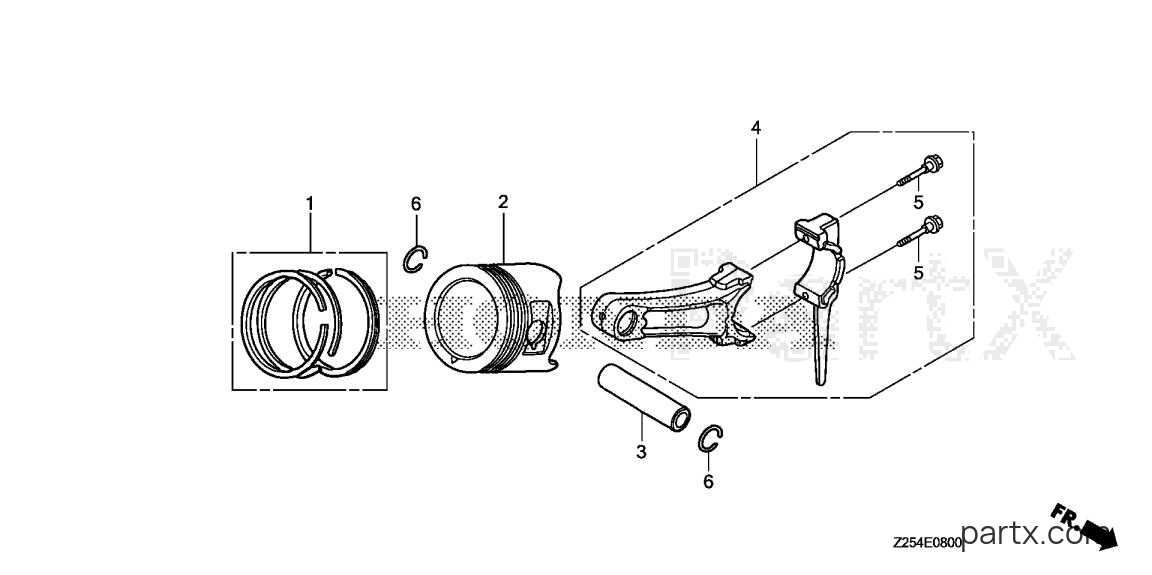

All Years Generator EU - EU6500IS AC PISTON - CONNECTING ROD diagram
-20%
001
Honda
RING SET (STD)13010-Z5R-004
Required: 1
RING SET, PISTON (STD) (TEIKOKU)
$43.14
You save $10.78
001
Honda
RING SET, PISTON (0.25) (TEIKOKU) (NOT AVAILABLE)13011-Z5R-004
Required: 1
RING SET, PISTON (0.25) (TEIKOKU) (NOT AVAILABLE)
Price unavailable
-15%
001
Honda
RING SET (0.50)13012-Z5R-004
Required: 1
RING SET, PISTON (0.50) (TEIKOKU) (NOT AVAILABLE)
$38.49
You save $6.79
001
Honda
RING SET, PISTON (0.75) (TEIKOKU) (NOT AVAILABLE)13013-Z5R-004
Required: 1
RING SET, PISTON (0.75) (TEIKOKU) (NOT AVAILABLE)
Price unavailable
-15%
002
Honda
PISTON (STD)13101-ZF6-W01
Required: 1
PISTON (STD)
$69.24
You save $12.22
-15%
002
Honda
PISTON (0.25)13102-ZF6-W01
Required: 1
PISTON (0.25)
$68.68
You save $12.12
-15%
002
Honda
PISTON (0.50)13103-ZF6-W01
Required: 1
PISTON (0.50)
$68.70
You save $12.12
-15%
002
Honda
PISTON (0.75)13104-ZF6-W01
Required: 1
PISTON (0.75)
$72.86
You save $12.86
-15%
003
Honda
PIN, PISTON13111-ZF6-W00
Required: 1
PIN, PISTON
$13.48
You save $2.38
-15%
004
Honda
ROD ASSY.13200-ZE3-315
Required: 1
ROD ASSY., CONNECTING (0.25 LOWER SIZE)
$119.34
You save $21.06
-15%
004
Honda
ROD ASSY. (STD)13200-Z1C-900
Required: 1
ROD ASSY., CONNECTING (STD)
In stock
Only 1 remaining
$25.45
You save $4.49
-15%
005
Honda
BOLT, CONNECTING ROD90001-ZE8-000
Required: 2
BOLT, CONNECTING ROD
$3.69
You save $0.65
-15%
006
Honda
CLIP (20MM)90601-ZE3-000
Required: 2
CLIP, PISTON PIN (20MM)
$1.90
You save $0.34
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
