All diagrams for this model

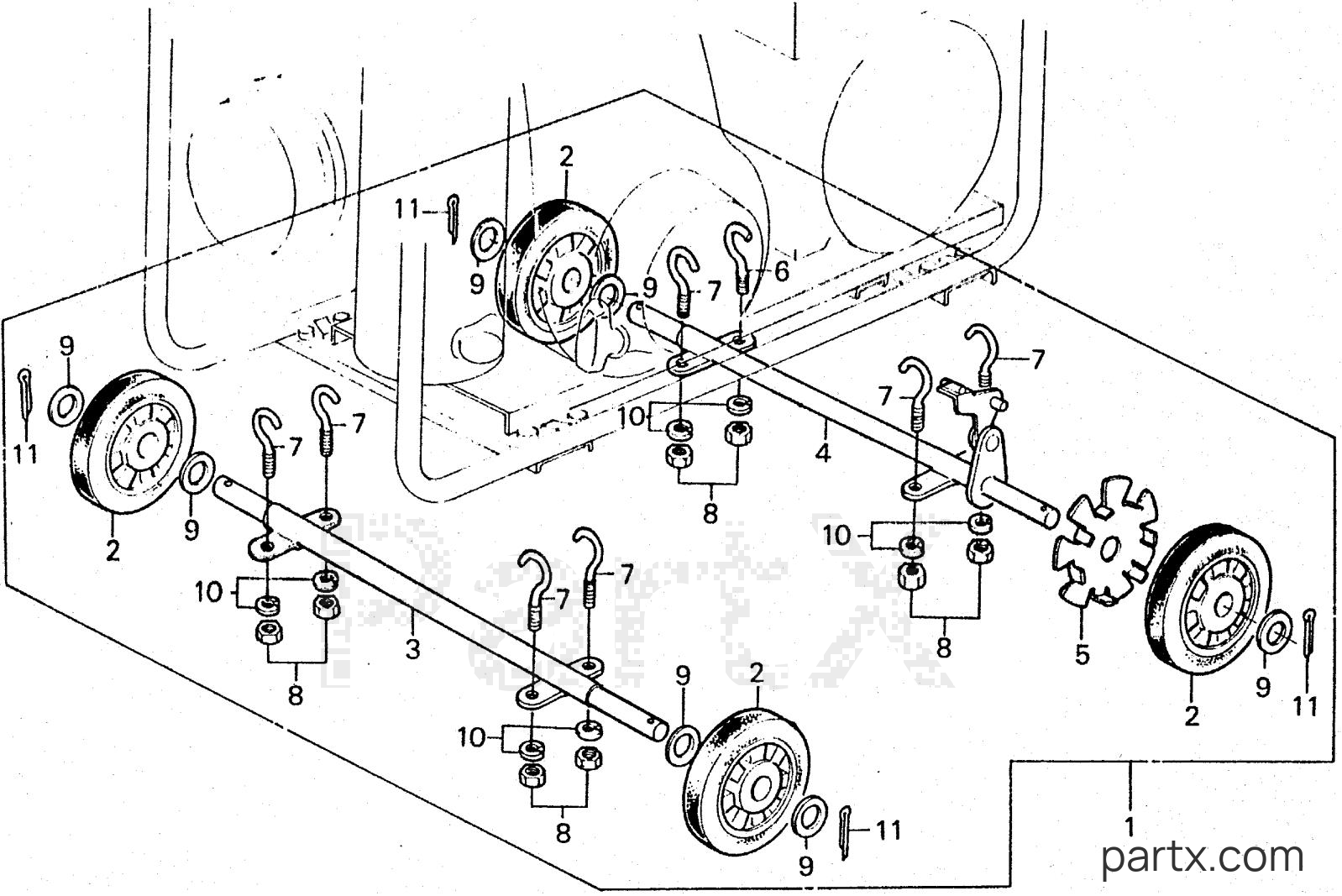

All Years Generator ES - ES4500K1 A WHEEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Honda ES4500K1 A - WHEEL
Change View:
WHEEL KIT (NOT AVAILABLE)
001
Honda
WHEEL KIT (NOT AVAILABLE)06710-880-811
Required: 1
WHEEL KIT (NOT AVAILABLE)
Price unavailable
WHEEL
002
Honda
WHEEL42710-862-010
Required: 4
WHEEL
Price unavailable
SHAFT A, WHEEL (NOT AVAILABLE)
003
Honda
SHAFT A, WHEEL (NOT AVAILABLE)42730-880-810
Required: 1
SHAFT A, WHEEL (NOT AVAILABLE)
Price unavailable
SHAFT B, WHEEL (NOT AVAILABLE)
004
Honda
SHAFT B, WHEEL (NOT AVAILABLE)42740-880-811
Required: 1
SHAFT B, WHEEL (NOT AVAILABLE)
Price unavailable
-15%
PLATE, LOCK
005
Honda
PLATE, LOCK42753-880-810
Required: 1
PLATE, LOCK (NOT AVAILABLE)
Cross Ship
Leaves in 2-5 days
$32.64
$27.74
You save $4.90
More details
BOLT A, HOOK (NOT AVAILABLE)
006
Honda
BOLT A, HOOK (NOT AVAILABLE)42754-880-810
Required: 1
BOLT A, HOOK (NOT AVAILABLE)
Price unavailable
BOLT B, HOOK (NOT AVAILABLE)
007
Honda
BOLT B, HOOK (NOT AVAILABLE)42755-880-810
Required: 7
BOLT B, HOOK (NOT AVAILABLE)
Price unavailable
-15%
NUT, HEX. (8MM)
008
Honda
NUT, HEX. (8MM)94001-08000-0S
Required: 8
NUT, HEX. (8MM)
Cross Ship
Leaves in 2-5 days
$1.60
$1.36
You save $0.24
More details
-15%
WASHER, PLAIN (20MM)
009
Honda
WASHER, PLAIN (20MM)94102-20000
Required: 7
WASHER, PLAIN (20MM)
Cross Ship
Leaves in 2-5 days
$1.26
$1.07
You save $0.19
More details
-15%
WASHER, SPRING (8MM)
010
Honda
WASHER, SPRING (8MM)94111-08000
Required: 8
WASHER, SPRING (8MM)
Cross Ship
Leaves in 2-5 days
$1.20
$1.02
You save $0.18
More details
-15%
PIN, SPLIT (4.0X28)
011
Honda
PIN, SPLIT (4.0X28)94201-40280
Required: 4
PIN, SPLIT (4.0X28)
Cross Ship
Leaves in 2-5 days
$1.26
$1.07
You save $0.19
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
