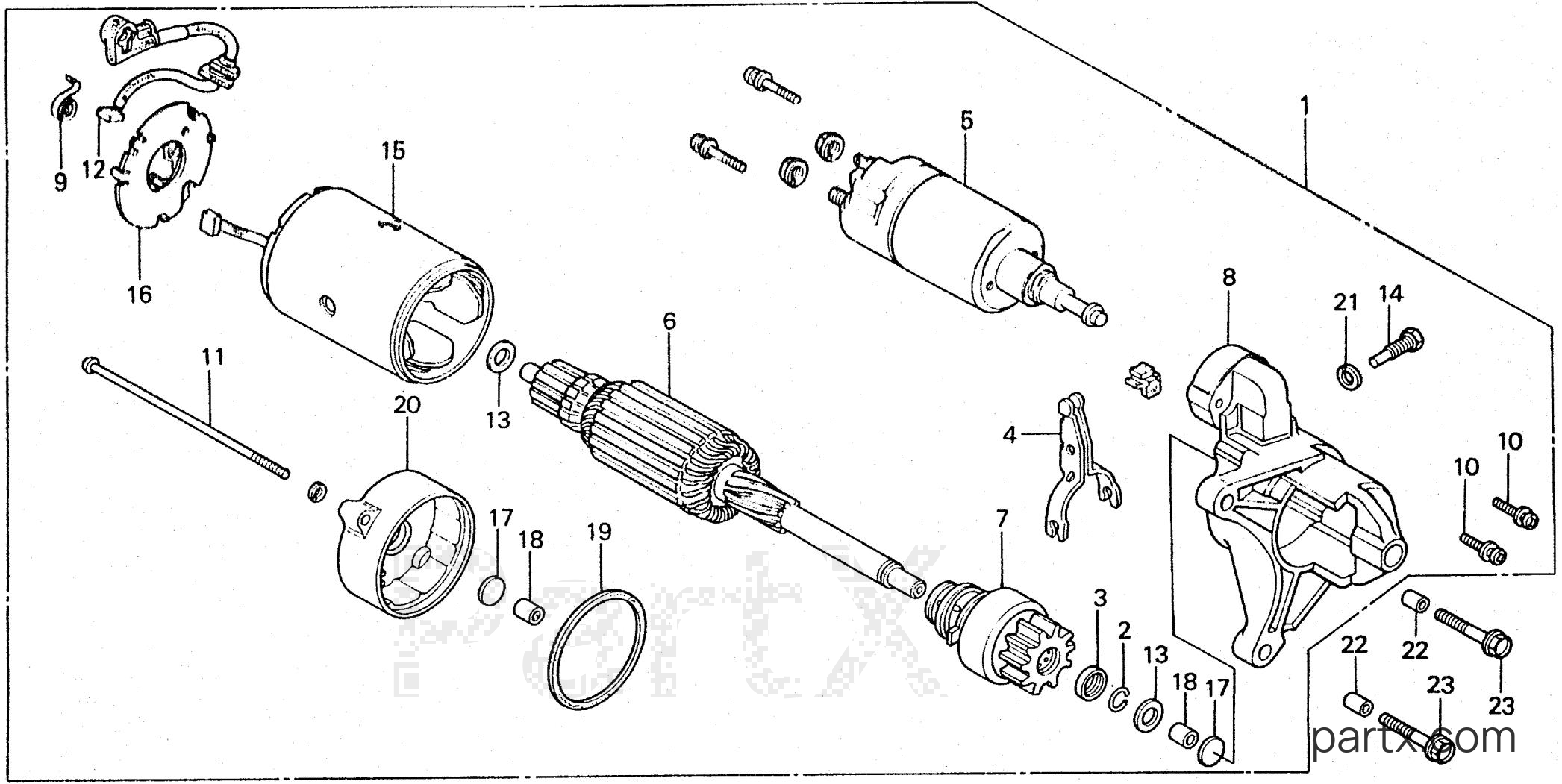

Honda ES3500K1 A - STARTER MOTOR
Change View:
STARTER MOTOR ASSY.
001
Honda
STARTER MOTOR ASSY.31200-890-802
Required: 1
STARTER MOTOR ASSY.
Price unavailable
RING, SNAP (NOT AVAILABLE)
002
Honda
RING, SNAP (NOT AVAILABLE)31201-590-004
Required: 1
RING, SNAP (NOT AVAILABLE)
Price unavailable
COLLAR, CLUTCH STOP (NOT AVAILABLE)
003
Honda
COLLAR, CLUTCH STOP (NOT AVAILABLE)31202-590-004
Required: 1
COLLAR, CLUTCH STOP (NOT AVAILABLE)
Price unavailable
LEVER, PINION DRIVE (NOT AVAILABLE)
004
Honda
LEVER, PINION DRIVE (NOT AVAILABLE)31203-611-004
Required: 1
LEVER, PINION DRIVE (NOT AVAILABLE)
Price unavailable
SWITCH, MAGNETIC (NOT AVAILABLE)
005
Honda
SWITCH, MAGNETIC (NOT AVAILABLE)31204-890-801
Required: 1
SWITCH, MAGNETIC (NOT AVAILABLE)
Price unavailable
ARMATURE (NOT AVAILABLE)
006
Honda
ARMATURE (NOT AVAILABLE)31206-890-801
Required: 1
ARMATURE (NOT AVAILABLE)
Price unavailable
PINION (NOT AVAILABLE)
007
Honda
PINION (NOT AVAILABLE)31207-890-801
Required: 1
PINION (NOT AVAILABLE)
Price unavailable
CASE, GEAR (NOT AVAILABLE)
008
Honda
CASE, GEAR (NOT AVAILABLE)31208-890-801
Required: 1
CASE, GEAR (NOT AVAILABLE)
Price unavailable
SPRING, BRUSH (NOT AVAILABLE)
009
Honda
SPRING, BRUSH (NOT AVAILABLE)31212-611-004
Required: 2
SPRING, BRUSH (NOT AVAILABLE)
Price unavailable
SCREW, MAGNETIC SWITCH SETTING (NOT AVAILABLE)
010
Honda
SCREW, MAGNETIC SWITCH SETTING (NOT AVAILABLE)31213-611-004
Required: 2
SCREW, MAGNETIC SWITCH SETTING (NOT AVAILABLE)
Price unavailable
BOLT, THROUGH (NOT AVAILABLE)
011
Honda
BOLT, THROUGH (NOT AVAILABLE)31214-611-004
Required: 2
BOLT, THROUGH (NOT AVAILABLE)
Price unavailable
BRUSH (NOT AVAILABLE)
012
Honda
BRUSH (NOT AVAILABLE)31215-890-801
Required: 2
BRUSH (NOT AVAILABLE)
Price unavailable
WASHER (NOT AVAILABLE)
013
Honda
WASHER (NOT AVAILABLE)31216-611-004
Required: 2
WASHER (NOT AVAILABLE)
Price unavailable
SCREW, POLE CORE SETTING (NOT AVAILABLE)
014
Honda
SCREW, POLE CORE SETTING (NOT AVAILABLE)31217-890-801
Required: 1
SCREW, POLE CORE SETTING (NOT AVAILABLE)
Price unavailable
COIL, FIELD (NOT AVAILABLE)
015
Honda
COIL, FIELD (NOT AVAILABLE)31218-890-801
Required: 1
COIL, FIELD (NOT AVAILABLE)
Price unavailable
HOLDER, BRUSH (NOT AVAILABLE)
016
Honda
HOLDER, BRUSH (NOT AVAILABLE)31231-890-801
Required: 1
HOLDER, BRUSH (NOT AVAILABLE)
Price unavailable
COVER, BEARING (NOT AVAILABLE)
017
Honda
COVER, BEARING (NOT AVAILABLE)31232-611-004
Required: 2
COVER, BEARING (NOT AVAILABLE)
Price unavailable
BUSH, BEARING (NOT AVAILABLE)
018
Honda
BUSH, BEARING (NOT AVAILABLE)31233-611-004
Required: 2
BUSH, BEARING (NOT AVAILABLE)
Price unavailable
GASKET, RUBBER PLATE (NOT AVAILABLE)
019
Honda
GASKET, RUBBER PLATE (NOT AVAILABLE)31234-611-004
Required: 1
GASKET, RUBBER PLATE (NOT AVAILABLE)
Price unavailable
COVER, RR.
020
Honda
COVER, RR.31291-611-004
Required: 1
COVER, RR.
Price unavailable
-15%
WASHER, SPRING (8MM)
021
Honda
WASHER, SPRING (8MM)94111-08000
Required: 1
WASHER, SPRING (8MM)
Cross Ship
Leaves in 2-5 days
$1.20
$1.02
You save $0.18
More details
-15%
PIN, DOWEL (10X16)
022
Honda
PIN, DOWEL (10X16)94301-10160
Required: 2
PIN, DOWEL (10X16)
Cross Ship
Leaves in 2-5 days
$3.00
$2.55
You save $0.45
More details
-15%
BOLT, FLANGE (8X35)
023
Honda
BOLT, FLANGE (8X35)95701-08035-08
Required: 2
BOLT, FLANGE (8X35)
Cross Ship
Leaves in 2-5 days
$1.76
$1.50
You save $0.26
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
