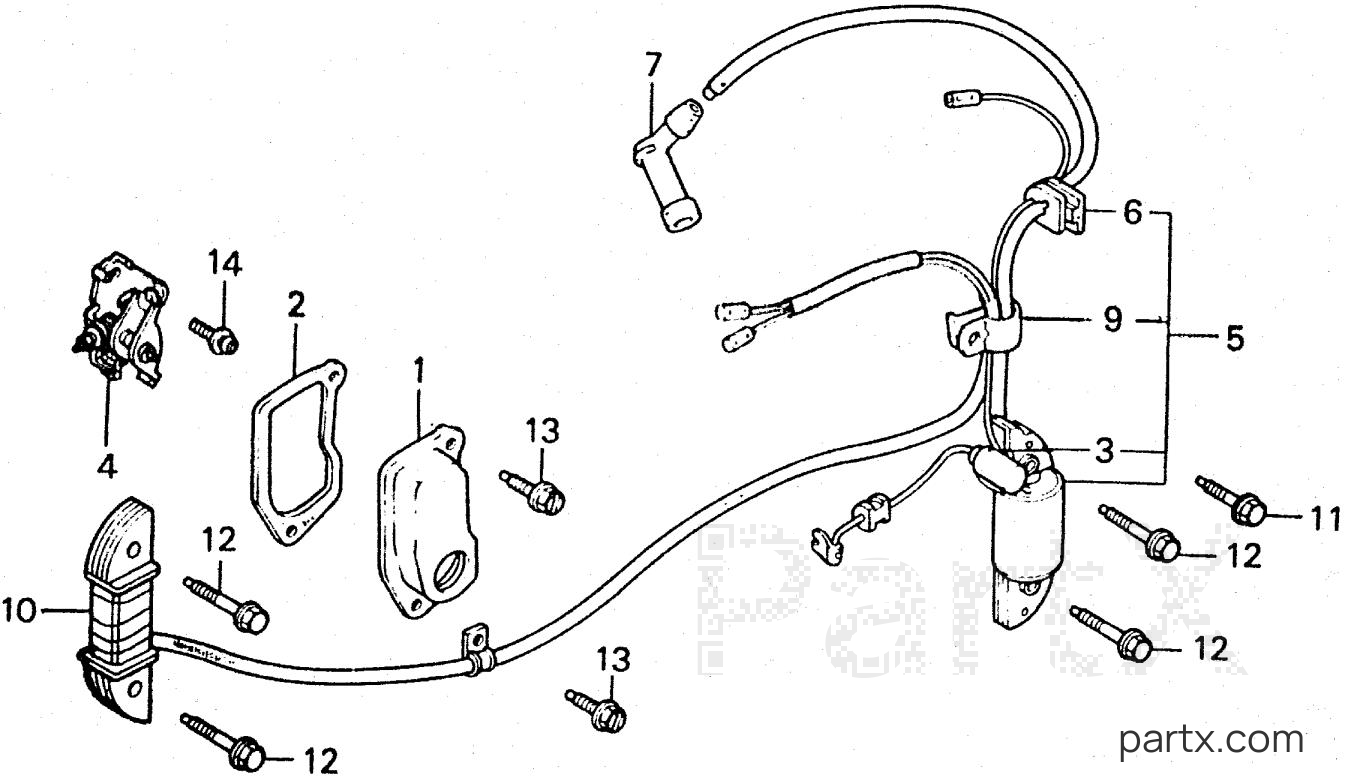

All Years Generator ES - ES3500K2 A POINTS - IGNITION COIL diagram
001
Honda
COVER, BREAKER (NOT AVAILABLE)30211-890-000
Required: 1
COVER, BREAKER (NOT AVAILABLE)
Price unavailable
002
Honda
GASKET, BREAKER COVER (NOT AVAILABLE)30215-889-000
Required: 1
GASKET, BREAKER COVER (NOT AVAILABLE)
Price unavailable
-15%
$18.26
You save $3.22
-15%
004
Honda
POINTS ASSY.30280-890-000
Required: 1
POINTS ASSY. (NOT AVAILABLE)
$22.97
You save $4.05
005
Honda
COIL ASSY., IGNITION (NOT AVAILABLE)30560-890-801
Required: 1
COIL ASSY., IGNITION (NOT AVAILABLE)
Price unavailable
-15%
006
Honda
GROMMET, WIRE30563-890-003
Required: 1
GROMMET, WIRE
$5.42
You save $0.96
007
Honda
CAP ASSY., NOISE SUPPRESSOR30700-890-000
Required: 1
CAP ASSY., NOISE SUPPRESSOR
Price unavailable
007
Honda
CAP ASSY., NOISE SUPPRESSOR (NOT AVAILABLE)30700-890-003
Required: 1
CAP ASSY., NOISE SUPPRESSOR (NOT AVAILABLE)
Price unavailable
-15%
009
Honda
CLAMP, IGNITION WIRE30702-890-000
Required: 1
CLAMP, IGNITION WIRE
$5.51
You save $0.97
010
Honda
COIL ASSY., CHARGE (SILICON RECTIFIER) (NOT AVAILABLE)31630-890-801
Required: 1
COIL ASSY., CHARGE (SILICON RECTIFIER) (NOT AVAILABLE)
Price unavailable
-15%
011
Honda
BOLT (6X12) (CT200)90013-883-000
Required: 1
BOLT, FLANGE (6X12) (CT200)
In stock
Only 3 remaining
$1.60
You save $0.28
-15%
012
Honda
BOLT (6X32) (CT200)90017-883-000
Required: 4
BOLT, FLANGE (6X32) (CT200)
$2.77
You save $0.49
-15%
013
Honda
BOLT (5X10) (CT200)90019-883-000
Required: 2
BOLT, FLANGE (5X10) (CT200)
$2.57
You save $0.45
-15%
014
Honda
SCREW-WASHER (5X12)90051-883-000
Required: 1
SCREW-WASHER (5X12)
$1.73
You save $0.31
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
