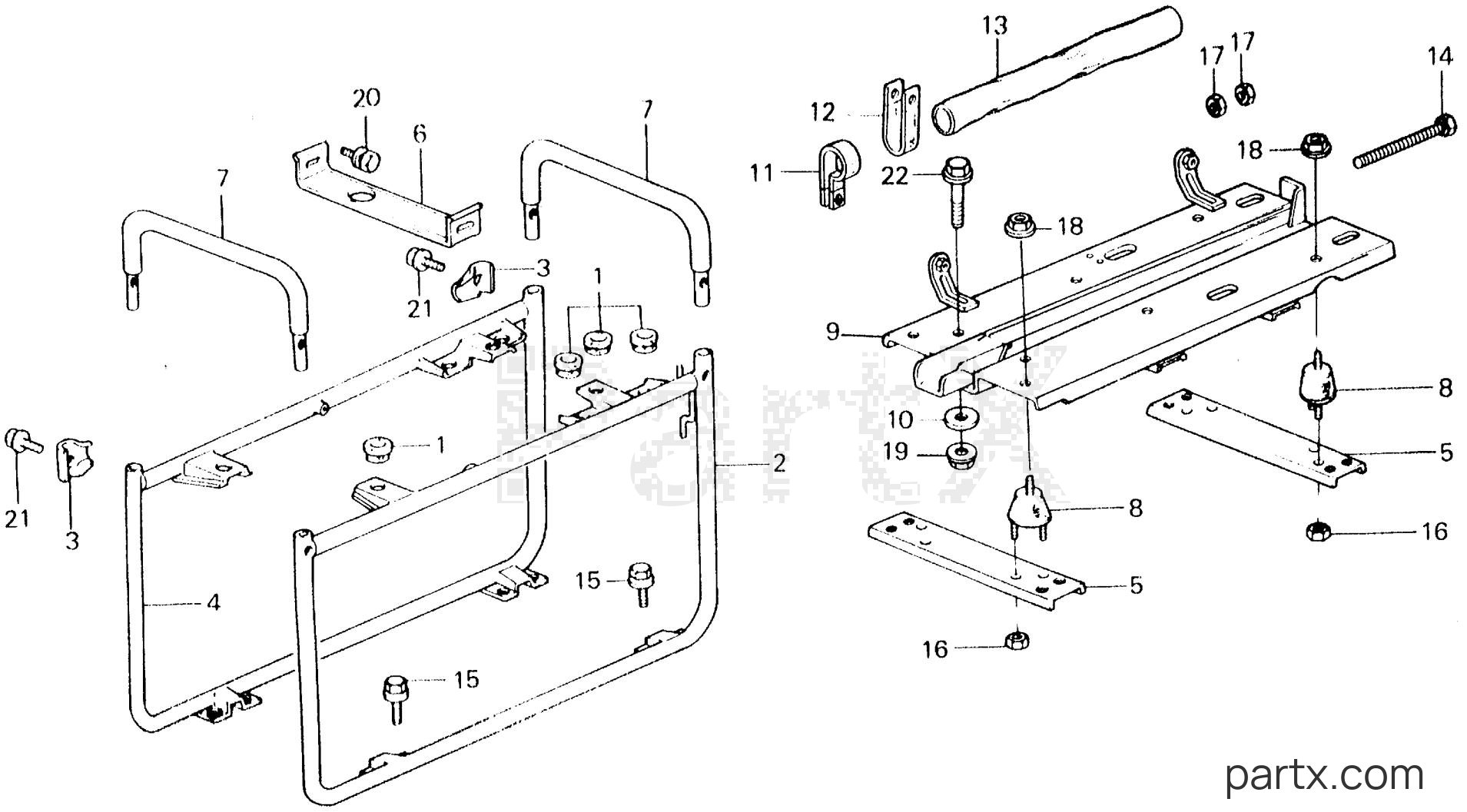

All Years Generator ES - ES3500K1 A FRAME - ENGINE BED diagram
-15%
001
Honda
RUBBER, TANK CUSHION17682-817-020
Required: 8
RUBBER, TANK CUSHION
$2.91
You save $0.51
002
Honda
FRAME, FR. PIPE (NOT AVAILABLE)50120-880-030
Required: 1
FRAME, FR. PIPE (NOT AVAILABLE)
Price unavailable
003
Honda
PLATE, JOINT (NOT AVAILABLE)50121-880-000
Required: 4
PLATE, JOINT (NOT AVAILABLE)
Price unavailable
004
Honda
FRAME, RR. PIPE (NOT AVAILABLE)50130-880-020
Required: 1
FRAME, RR. PIPE (NOT AVAILABLE)
Price unavailable
005
Honda
PLATE (LOWER) (NOT AVAILABLE)50311-880-020
Required: 2
PLATE (LOWER) (NOT AVAILABLE)
Price unavailable
006
Honda
STOPPER, ENGINE (NOT AVAILABLE)50317-880-010
Required: 1
STOPPER, ENGINE (NOT AVAILABLE)
Price unavailable
007
Honda
HANDLEBAR (NOT AVAILABLE)53120-880-000
Required: 2
HANDLEBAR (NOT AVAILABLE)
Price unavailable
008
Honda
RUBBER, ENGINE MOUNTING68310-815-020
Required: 4
RUBBER, ENGINE MOUNTING
Price unavailable
008
Honda
RUBBER, ENGINE SETTING (NOT AVAILABLE)68325-893-000
Required: 4
RUBBER, ENGINE SETTING (NOT AVAILABLE)
Price unavailable
009
Honda
BED, ENGINE68310-880-020
Required: 1
BED, ENGINE
Price unavailable
009
Honda
BED, ENGINE68310-880-030
Required: 1
BED, ENGINE
Price unavailable
009
Honda
BED, ENGINE (NOT AVAILABLE)68310-880-040
Required: 1
BED, ENGINE (NOT AVAILABLE)
Price unavailable
-15%
010
Honda
WASHER, EX. MANIFOLD90501-579-020
Required: 4
WASHER, EX. MANIFOLD
$5.85
You save $1.03
011
Honda
CLIP, WIRE (NOT AVAILABLE)91402-880-010
Required: 2
CLIP, WIRE (NOT AVAILABLE)
Price unavailable
011
Honda
CLIP, CORD (NOT AVAILABLE)91405-890-000
Required: 1
CLIP, CORD (NOT AVAILABLE)
Price unavailable
013
Honda
TUBE, WIRE (NOT AVAILABLE)91407-880-780
Required: 1
TUBE, WIRE (NOT AVAILABLE)
Price unavailable
-15%
014
Honda
BOLT, HEX. (8X80)92180-08080-0A
Required: 1
BOLT, HEX. (8X80)
$2.72
You save $0.48
-15%
015
Honda
BOLT-WASHER (8X16)93401-08016-00
Required: 8
BOLT-WASHER (8X16)
$1.99
You save $0.35
016
Honda
NUT, HEX. (6MM)94001-06000-0S
Required: 8
NUT, HEX. (6MM)
Price unavailable
-15%
016
Honda
NUT, HEX. (6MM)94001-06200-0S
Required: 8
NUT, HEX. (6MM)
$1.36
You save $0.24
-15%
017
Honda
NUT, HEX. (8MM)94001-08000-0S
Required: 2
NUT, HEX. (8MM)
$1.36
You save $0.24
-20%
018
Honda
NUT, FLANGE (8MM)94050-08000
Required: 4
NUT, FLANGE (8MM)
In stock
Only 5 remaining
$0.94
You save $0.24
-15%
019
Honda
NUT, FLANGE (10MM)94050-10000
Required: 4
NUT, FLANGE (10MM)
$1.65
You save $0.29
-15%
020
Honda
BOLT, FLANGE (6X12)95701-06012-08
Required: 2
BOLT, FLANGE (6X12)
$1.73
You save $0.31
-20%
021
Honda
BOLT, FLANGE (8X16)95701-08016-00
Required: 4
BOLT, FLANGE (8X16)
$1.76
You save $0.44
-15%
022
Honda
BOLT, FLANGE (10X50)95701-10050-00
Required: 4
BOLT, FLANGE (10X50)
$2.91
You save $0.51
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
