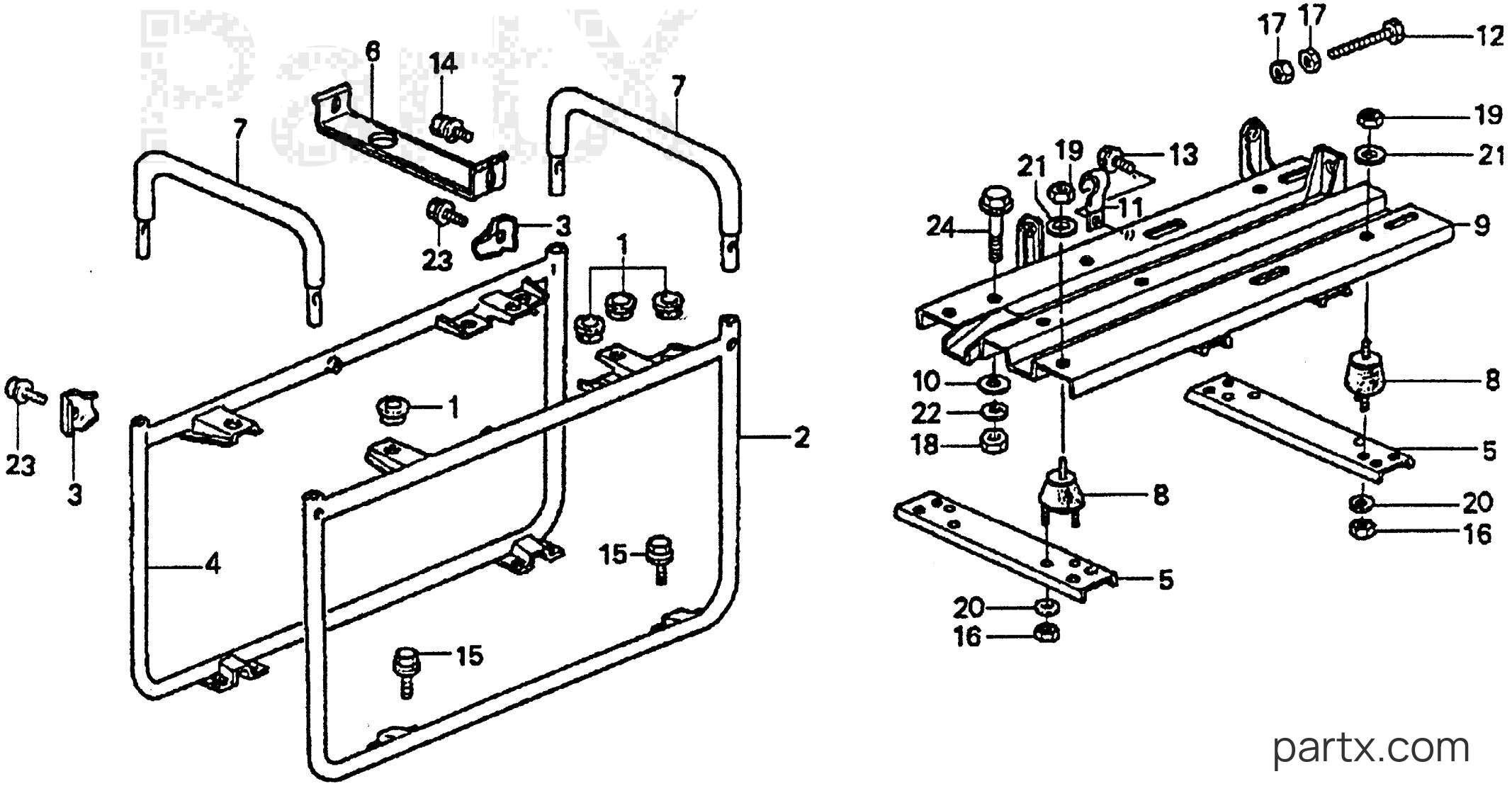

All Years Generator ES - ES3500 A FRAME - ENGINE BED diagram
-15%
001
Honda
RUBBER, TANK CUSHION17682-817-020
Required: 8
RUBBER, TANK CUSHION
$2.91
You save $0.51
002
Honda
FRAME, FR. PIPE (NOT AVAILABLE)50120-880-010
Required: 1
FRAME, FR. PIPE (NOT AVAILABLE)
Price unavailable
003
Honda
PLATE, JOINT (NOT AVAILABLE)50121-880-000
Required: 4
PLATE, JOINT (NOT AVAILABLE)
Price unavailable
004
Honda
PIPE FRAME, RR. (NOT AVAILABLE)50130-880-010
Required: 1
PIPE FRAME, RR. (NOT AVAILABLE)
Price unavailable
005
Honda
PLATE (LOWER) (NOT AVAILABLE)50311-880-010
Required: 2
PLATE (LOWER) (NOT AVAILABLE)
Price unavailable
006
Honda
STOPPER, ENGINE (NOT AVAILABLE)50317-880-000
Required: 1
STOPPER, ENGINE (NOT AVAILABLE)
Price unavailable
007
Honda
HANDLEBAR (NOT AVAILABLE)53120-880-000
Required: 2
HANDLEBAR (NOT AVAILABLE)
Price unavailable
008
Honda
RUBBER, ENGINE MOUNTING68310-815-020
Required: 4
RUBBER, ENGINE MOUNTING
Price unavailable
009
Honda
BED, ENGINE (NOT AVAILABLE)68310-880-010
Required: 1
BED, ENGINE (NOT AVAILABLE)
Price unavailable
-15%
010
Honda
WASHER, EX. MANIFOLD90501-579-020
Required: 4
WASHER, EX. MANIFOLD
$5.85
You save $1.03
011
Honda
CLIP, CORD (NOT AVAILABLE)91403-880-010
Required: 1
CLIP, CORD (NOT AVAILABLE)
Price unavailable
-15%
012
Honda
BOLT, HEX. (8X80)92180-08080-0A
Required: 1
BOLT, HEX. (8X80)
$2.72
You save $0.48
-15%
013
Honda
BOLT-WASHER (6X12)93411-06012-08
Required: 2
BOLT-WASHER (6X12)
$1.68
You save $0.30
-20%
013
Honda
BOLT, FLANGE (6X12)95701-06012-00
Required: 1
BOLT, FLANGE (6X12)
In stock
Only 1 remaining
$1.58
You save $0.40
-15%
013
Honda
BOLT-WASHER (6X12)93401-06012-08
Required: 2
BOLT-WASHER (6X12)
$1.68
You save $0.30
-15%
014
Honda
BOLT-WASHER (6X12)93402-06012-00
Required: 2
BOLT-WASHER (6X12)
$1.84
You save $0.32
-15%
015
Honda
BOLT-WASHER (8X16)93401-08016-00
Required: 8
BOLT-WASHER (8X16)
$1.99
You save $0.35
016
Honda
NUT, HEX. (6MM)94001-06000-0S
Required: 8
NUT, HEX. (6MM)
Price unavailable
-15%
016
Honda
NUT, HEX. (6MM)94001-06080-0S
Required: 8
NUT, HEX. (6MM)
$1.36
You save $0.24
-15%
016
Honda
NUT, HEX. (6MM)94001-06200-0S
Required: 8
NUT, HEX. (6MM)
$1.36
You save $0.24
-15%
017
Honda
NUT, HEX. (8MM)94001-08000-0S
Required: 2
NUT, HEX. (8MM)
$1.36
You save $0.24
-15%
018
Honda
NUT, HEX. (10MM)94001-10000-0S
Required: 4
NUT, HEX. (10MM)
$1.50
You save $0.26
-15%
019
Honda
NUT, HEX. (8MM)94002-08000-0S
Required: 4
NUT, HEX. (8MM)
$1.36
You save $0.24
-20%
020
Honda
WASHER, PLAIN (6MM)94101-06800
Required: 8
WASHER, PLAIN (6MM)
In stock
Only 2 remaining
$0.64
You save $0.16
-15%
021
Honda
WASHER, PLAIN (8MM)94101-08000
Required: 4
WASHER, PLAIN (8MM)
$0.85
You save $0.15
-15%
022
Honda
WASHER (10MM)94111-10000
Required: 4
WASHER, SPRING (10MM)
$1.39
You save $0.25
-20%
023
Honda
BOLT, FLANGE (8X16)95701-08016-00
Required: 4
BOLT, FLANGE (8X16)
$1.76
You save $0.44
-15%
024
Honda
BOLT, FLANGE (10X40)95800-10040-00
Required: 4
BOLT, FLANGE (10X40)
$2.38
You save $0.42
024
Honda
BOLT, FLANGE (10X40)95801-10040-00
Required: 4
BOLT, FLANGE (10X40)
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
