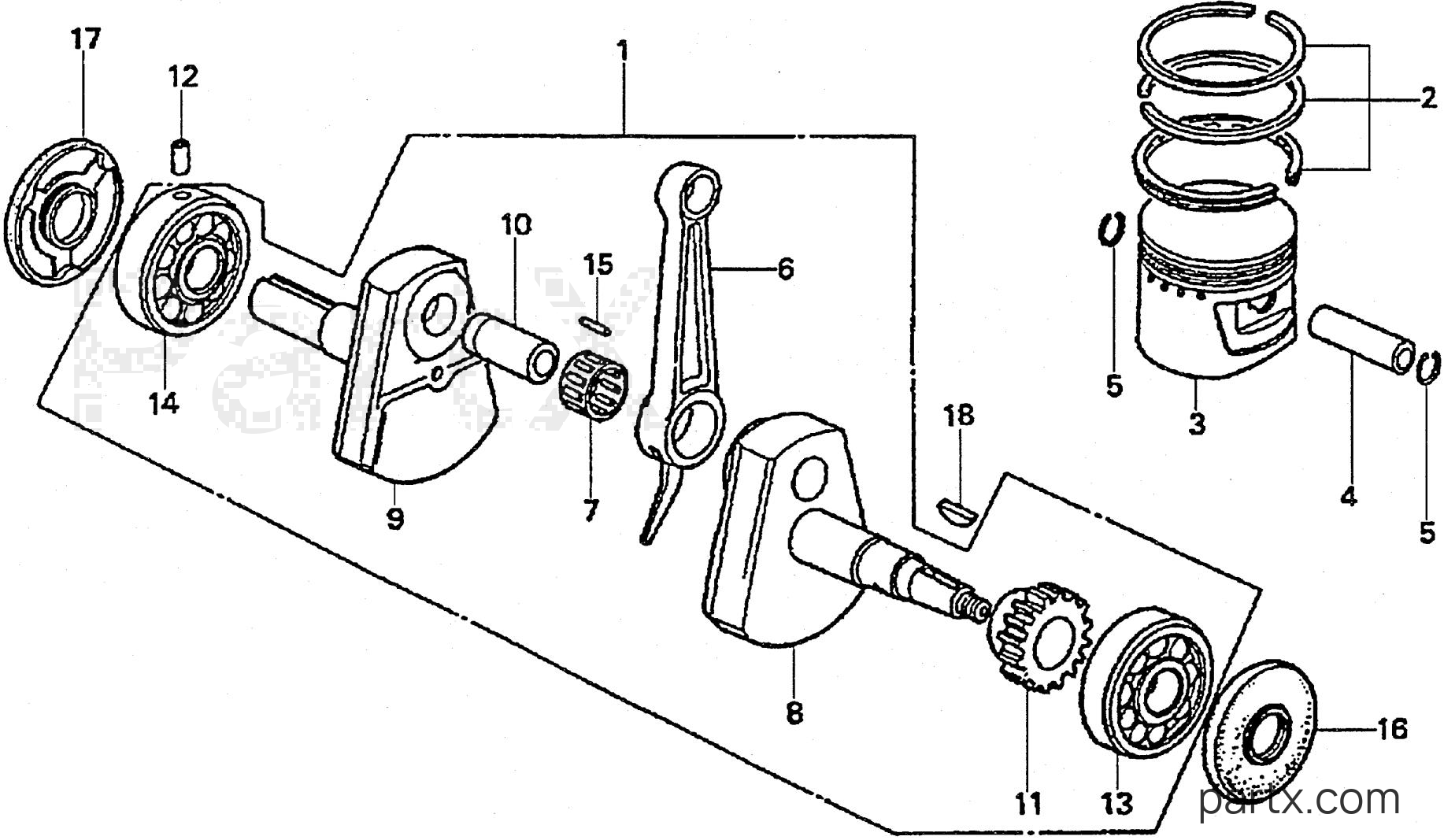

All Years Generator ES - ES3500 A CRANKSHAFT - PISTON diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Honda ES3500 A - CRANKSHAFT - PISTON
Change View:
CRANKSHAFT (NOT AVAILABLE)
001
Honda
CRANKSHAFT (NOT AVAILABLE)13000-874-000
Required: 1
CRANKSHAFT (NOT AVAILABLE)
Price unavailable
RING SET, PISTON (STD) (NOT AVAILABLE)
002
Honda
RING SET, PISTON (STD) (NOT AVAILABLE)13010-874-000
Required: 1
RING SET, PISTON (STD) (NOT AVAILABLE)
Price unavailable
-15%
RING SET (OS) (0.25)
002
Honda
RING SET (OS) (0.25)13011-874-000
Required: 1
RING SET, PISTON (OVER SIZE) (0.25)
Cross Ship
Leaves in 2-5 days
$37.90
$32.22
You save $5.69
More details
RING SET, PISTON (OVER SIZE) (0.50) (NOT AVAILABLE)
002
Honda
RING SET, PISTON (OVER SIZE) (0.50) (NOT AVAILABLE)13012-874-000
Required: 1
RING SET, PISTON (OVER SIZE) (0.50) (NOT AVAILABLE)
Price unavailable
RING SET, PISTON (OVER SIZE) (0.75) (NOT AVAILABLE)
002
Honda
RING SET, PISTON (OVER SIZE) (0.75) (NOT AVAILABLE)13013-874-000
Required: 1
RING SET, PISTON (OVER SIZE) (0.75) (NOT AVAILABLE)
Price unavailable
PISTON (STD) (NOT AVAILABLE)
003
Honda
PISTON (STD) (NOT AVAILABLE)13101-874-000
Required: 1
PISTON (STD) (NOT AVAILABLE)
Price unavailable
PISTON (OVER SIZE) (0.25) (NOT AVAILABLE)
003
Honda
PISTON (OVER SIZE) (0.25) (NOT AVAILABLE)13102-874-000
Required: 1
PISTON (OVER SIZE) (0.25) (NOT AVAILABLE)
Price unavailable
PISTON (OVER SIZE) (0.50) (NOT AVAILABLE)
003
Honda
PISTON (OVER SIZE) (0.50) (NOT AVAILABLE)13103-874-000
Required: 1
PISTON (OVER SIZE) (0.50) (NOT AVAILABLE)
Price unavailable
PISTON (OVER SIZE) (0.75) (NOT AVAILABLE)
003
Honda
PISTON (OVER SIZE) (0.75) (NOT AVAILABLE)13104-874-000
Required: 1
PISTON (OVER SIZE) (0.75) (NOT AVAILABLE)
Price unavailable
PIN, PISTON
004
Honda
PIN, PISTON13111-809-010
Required: 1
PIN, PISTON
Price unavailable
-15%
CLIP (19MM)
005
Honda
CLIP (19MM)94601-19000
Required: 2
CLIP, PISTON PIN (19MM)
Cross Ship
Leaves in 2-5 days
$0.76
$0.65
You save $0.11
More details
ROD, CONNECTING (NOT AVAILABLE)
006
Honda
ROD, CONNECTING (NOT AVAILABLE)13201-874-300
Required: 1
ROD, CONNECTING (NOT AVAILABLE)
Price unavailable
-15%
RETAINER, ROLLER
007
Honda
RETAINER, ROLLER13211-809-000
Required: 1
RETAINER, ROLLER
Cross Ship
Leaves in 2-5 days
$46.86
$39.83
You save $7.03
More details
CRANKSHAFT, R. (NOT AVAILABLE)
008
Honda
CRANKSHAFT, R. (NOT AVAILABLE)13311-874-300
Required: 1
CRANKSHAFT, R. (NOT AVAILABLE)
Price unavailable
CRANKSHAFT, L. (NOT AVAILABLE)
009
Honda
CRANKSHAFT, L. (NOT AVAILABLE)13321-874-300
Required: 1
CRANKSHAFT, L. (NOT AVAILABLE)
Price unavailable
PIN, CRANK (N/A: SEE ASSEMBLY)
010
Honda
PIN, CRANK (N/A: SEE ASSEMBLY)13381-809-010
Required: 1
PIN, CRANK (N/A: SEE ASSEMBLY)
Price unavailable
GEAR, TIMING (NOT AVAILABLE)
011
Honda
GEAR, TIMING (NOT AVAILABLE)14311-823-000
Required: 1
GEAR, TIMING (NOT AVAILABLE)
Price unavailable
PIN, KNOCK (7X12) (NOT AVAILABLE)
012
Honda
PIN, KNOCK (7X12) (NOT AVAILABLE)90705-259-020
Required: 1
PIN, KNOCK (7X12) (NOT AVAILABLE)
Price unavailable
BEARING, RADIAL BALL (6306S) (NOT AVAILABLE)
013
Honda
BEARING, RADIAL BALL (6306S) (NOT AVAILABLE)91001-809-003
Required: 1
BEARING, RADIAL BALL (6306S) (NOT AVAILABLE)
Price unavailable
BEARING, SPECIAL BALL (6306S6HS) (NOT AVAILABLE)
014
Honda
BEARING, SPECIAL BALL (6306S6HS) (NOT AVAILABLE)91002-874-003
Required: 1
BEARING, SPECIAL BALL (6306S6HS) (NOT AVAILABLE)
Price unavailable
ROLLER, ROD (3X16) (NOT AVAILABLE)
015
Honda
ROLLER, ROD (3X16) (NOT AVAILABLE)91101-809-020
Required: 24
ROLLER, ROD (3X16) (NOT AVAILABLE)
Price unavailable
OIL SEAL (30759) (NOT AVAILABLE)
016
Honda
OIL SEAL (30759) (NOT AVAILABLE)91201-809-003
Required: 1
OIL SEAL (30759) (NOT AVAILABLE)
Price unavailable
OIL SEAL (PJ30759)
016
Honda
OIL SEAL (PJ30759)91201-809-015
Required: 1
OIL SEAL (PJ30759)
Price unavailable
-15%
OIL SEAL (PJ30779)
017
Honda
OIL SEAL (PJ30779)91202-809-003
Required: 1
OIL SEAL (PJ30779)
Cross Ship
Leaves in 2-5 days
$23.14
$19.67
You save $3.47
More details
-15%
KEY (25X18)
018
Honda
KEY (25X18)94401-25180
Required: 1
KEY, WOODRUFF (25X18)
Cross Ship
Leaves in 2-5 days
$1.68
$1.43
You save $0.25
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
