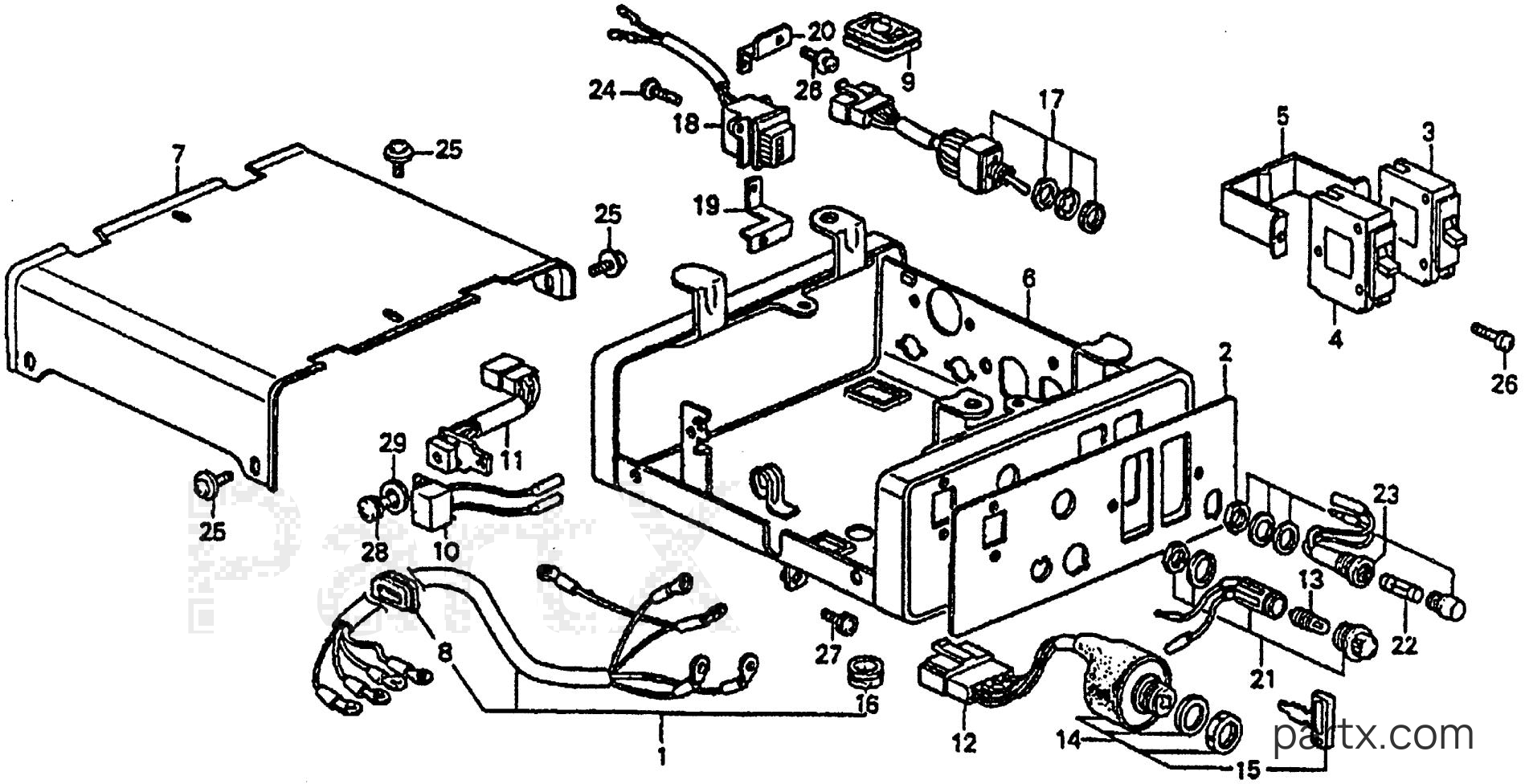

Honda ES3500 A - CIRCUIT BREAKER - ENGINE SWITCH
Change View:
WIRE, A.C. OUTLET (NOT AVAILABLE)
001
Honda
WIRE, A.C. OUTLET (NOT AVAILABLE)31405-880-000
Required: 1
WIRE, A.C. OUTLET (NOT AVAILABLE)
Price unavailable
PANEL, BOX (NOT AVAILABLE)
002
Honda
PANEL, BOX (NOT AVAILABLE)31406-880-670
Required: 1
PANEL, BOX (NOT AVAILABLE)
Price unavailable
BREAKER, CIRCUIT (33A) (NOT AVAILABLE)
003
Honda
BREAKER, CIRCUIT (33A) (NOT AVAILABLE)31411-880-680
Required: 1
BREAKER, CIRCUIT (33A) (NOT AVAILABLE)
Price unavailable
BREAKER, CIRCUIT (16.5A) (NOT AVAILABLE)
004
Honda
BREAKER, CIRCUIT (16.5A) (NOT AVAILABLE)31412-880-680
Required: 1
BREAKER, CIRCUIT (16.5A) (NOT AVAILABLE)
Price unavailable
SUPPORT, BREAKER (NOT AVAILABLE)
005
Honda
SUPPORT, BREAKER (NOT AVAILABLE)31415-880-000
Required: 1
SUPPORT, BREAKER (NOT AVAILABLE)
Price unavailable
BOX, CONTROL *R8*(BRIGHT RED)
006
Honda
BOX, CONTROL *R8*(BRIGHT RED)31450-880-670H
Required: 1
BOX, CONTROL *R8*(BRIGHT RED)
Price unavailable
BOX, CONTROL *R8*(BRIGHT RED) (NOT AVAILABLE)
006
Honda
BOX, CONTROL *R8*(BRIGHT RED) (NOT AVAILABLE)31450-880-671H
Required: 1
BOX, CONTROL *R8*(BRIGHT RED) (NOT AVAILABLE)
Price unavailable
COVER, BOX (UPPER) *R8*(BRIGHT RED) (NOT AVAILABLE)
007
Honda
COVER, BOX (UPPER) *R8*(BRIGHT RED) (NOT AVAILABLE)31455-880-000H
Required: 1
COVER, BOX (UPPER) *R8*(BRIGHT RED) (NOT AVAILABLE)
Price unavailable
-15%
GROMMET, A.C. WIRE
008
Honda
GROMMET, A.C. WIRE31481-880-000
Required: 1
GROMMET, A.C. WIRE
Cross Ship
Leaves in 2-5 days
$7.04
$5.98
You save $1.06
More details
GROMMET, REMOTE CONTROL (NOT AVAILABLE)
009
Honda
GROMMET, REMOTE CONTROL (NOT AVAILABLE)31483-880-670
Required: 1
GROMMET, REMOTE CONTROL (NOT AVAILABLE)
Price unavailable
-15%
RECTIFIER, SILICON
010
Honda
RECTIFIER, SILICON31700-124-008
Required: 1
RECTIFIER ASSY., SILICON (SHINDENGEN)
Cross Ship
Leaves in 2-5 days
$38.44
$32.67
You save $5.77
More details
RECTIFIER, SILICON (NOT AVAILABLE)
010
Honda
RECTIFIER, SILICON (NOT AVAILABLE)31700-823-761
Required: 1
RECTIFIER, SILICON (NOT AVAILABLE)
Price unavailable
STACK ASSY., DIODE (2.7A)
011
Honda
STACK ASSY., DIODE (2.7A)31710-880-000
Required: 1
STACK ASSY., DIODE (2.7A)
Price unavailable
CONNECTOR, MALE (8 POLE) (NOT AVAILABLE)
012
Honda
CONNECTOR, MALE (8 POLE) (NOT AVAILABLE)32136-086-010
Required: 1
CONNECTOR, MALE (8 POLE) (NOT AVAILABLE)
Price unavailable
-15%
BULB, DASH (24V-2W)
013
Honda
BULB, DASH (24V-2W)34909-880-000
Required: 1
BULB, DASH (24V-2W)
Cross Ship
Leaves in 2-5 days
$8.34
$7.09
You save $1.25
More details
-15%
SWITCH, COMBINATION
014
Honda
SWITCH, COMBINATION35100-880-672
Required: 1
SWITCH ASSY., COMBINATION
Cross Ship
Leaves in 2-5 days
$112.90
$95.96
You save $16.94
More details
-15%
KEY
015
Honda
KEY35111-880-013
Required: 2
KEY (HONDALOCK)
Cross Ship
Leaves in 2-5 days
$11.16
$9.49
You save $1.67
More details
-15%
GROMMET B, TUBE
016
Honda
GROMMET B, TUBE36038-657-000
Required: 1
GROMMET B, TUBE (NOT AVAILABLE)
Cross Ship
Leaves in 2-5 days
$8.36
$7.11
You save $1.25
More details
SWITCH ASSY., CONTROL
017
Honda
SWITCH ASSY., CONTROL36130-880-670
Required: 1
SWITCH ASSY., CONTROL
Price unavailable
SWITCH ASSY., CONTROL
017
Honda
SWITCH ASSY., CONTROL36130-880-671
Required: 1
SWITCH ASSY., CONTROL
Price unavailable
METER, FREQUENCY (NOT AVAILABLE)
018
Honda
METER, FREQUENCY (NOT AVAILABLE)37500-871-153
Required: 1
METER, FREQUENCY (NOT AVAILABLE)
Price unavailable
HOLDER A, FREQUENCY METER (NOT AVAILABLE)
019
Honda
HOLDER A, FREQUENCY METER (NOT AVAILABLE)37501-880-000
Required: 1
HOLDER A, FREQUENCY METER (NOT AVAILABLE)
Price unavailable
HOLDER B, FREQUENCY METER (NOT AVAILABLE)
020
Honda
HOLDER B, FREQUENCY METER (NOT AVAILABLE)37502-880-000
Required: 1
HOLDER B, FREQUENCY METER (NOT AVAILABLE)
Price unavailable
-15%
SOCKET, PILOT LAMP
021
Honda
SOCKET, PILOT LAMP37560-ZA0-003
Required: 1
SOCKET ASSY., PILOT LAMP
Cross Ship
Leaves in 2-5 days
$35.32
$30.02
You save $5.30
More details
-15%
FUSE (15A)
022
Honda
FUSE (15A)38201-880-000
Required: 1
FUSE (15A)
Cross Ship
Leaves in 2-5 days
$3.64
$3.09
You save $0.55
More details
HOLDER ASSY., FUSE (NOT AVAILABLE)
023
Honda
HOLDER ASSY., FUSE (NOT AVAILABLE)38210-880-680
Required: 1
HOLDER ASSY., FUSE (NOT AVAILABLE)
Price unavailable
-15%
SCREW, PAN (3X8)
024
Honda
SCREW, PAN (3X8)93500-03008-0H
Required: 2
SCREW, PAN (3X8)
Cross Ship
Leaves in 2-5 days
$0.90
$0.76
You save $0.14
More details
-15%
SCREW-WASHER (5X12)
025
Honda
SCREW-WASHER (5X12)93891-05012-08
Required: 6
SCREW-WASHER (5X12)
Cross Ship
Leaves in 2-5 days
$1.40
$1.19
You save $0.21
More details
-15%
SCREW-WASHER (4X12)
026
Honda
SCREW-WASHER (4X12)93892-04012-08
Required: 4
SCREW-WASHER (4X12)
Cross Ship
Leaves in 2-5 days
$0.78
$0.66
You save $0.12
More details
-15%
SCREW-WASHER (5X10)
027
Honda
SCREW-WASHER (5X10)93892-05010-08
Required: 1
SCREW-WASHER (5X10)
Cross Ship
Leaves in 2-5 days
$1.40
$1.19
You save $0.21
More details
-15%
SCREW-WASHER (6X12)
028
Honda
SCREW-WASHER (6X12)93892-06012-08
Required: 1
SCREW-WASHER (6X12)
Cross Ship
Leaves in 2-5 days
$1.56
$1.33
You save $0.23
More details
-20%
WASHER, PLAIN (6MM)
029
Honda
WASHER, PLAIN (6MM)94101-06800
Required: 1
WASHER, PLAIN (6MM)
Cross Ship
Leaves in 2-5 days
$0.80
$0.64
You save $0.16
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
