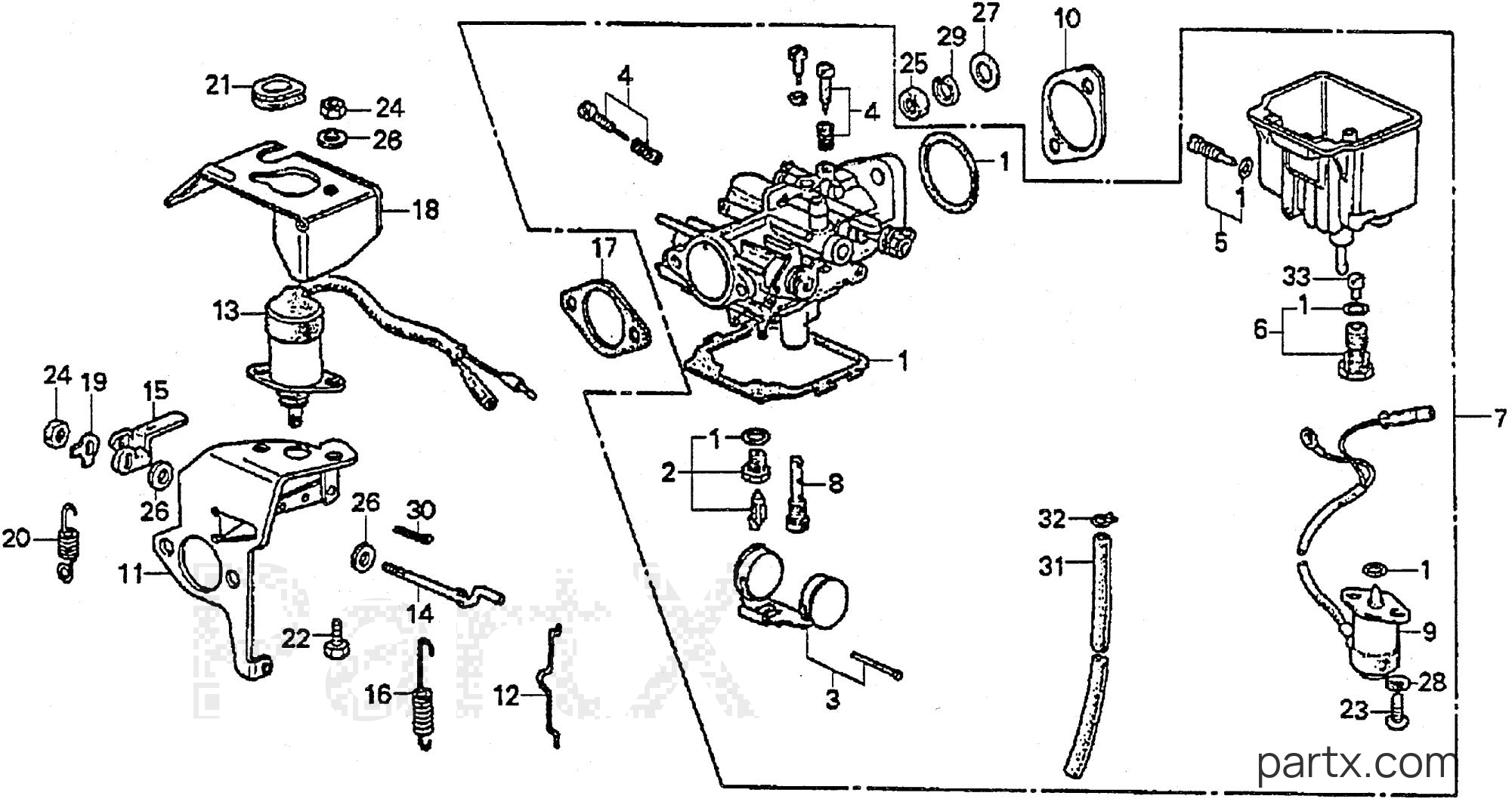

Honda ES3500 A - CARBURETOR

Change View:

GASKET SET

001

Honda

GASKET SET16010-880-003

Required: 1

GASKET SET

Price unavailable

VALVE SET, FLOAT

002

Honda

VALVE SET, FLOAT16011-116-014

Required: 1

VALVE SET, FLOAT

Price unavailable

FLOAT SET (NOT AVAILABLE)

003

Honda

FLOAT SET (NOT AVAILABLE)16013-862-004

Required: 1

FLOAT SET (NOT AVAILABLE)

Price unavailable

SCREW SET A (NOT AVAILABLE)

004

Honda

SCREW SET A (NOT AVAILABLE)16016-873-004

Required: 1

SCREW SET A (NOT AVAILABLE)

Price unavailable

SCREW SET, DRAIN (NOT AVAILABLE)

005

Honda

SCREW SET, DRAIN (NOT AVAILABLE)16024-124-004

Required: 2

SCREW SET, DRAIN (NOT AVAILABLE)

Price unavailable

SCREW SET B (NOT AVAILABLE)

006

Honda

SCREW SET B (NOT AVAILABLE)16028-880-003

Required: 1

SCREW SET B (NOT AVAILABLE)

Price unavailable

CARBURETOR ASSY.

007

Honda

CARBURETOR ASSY.16100-880-671

Required: 1

CARBURETOR ASSY.

Price unavailable

CARBURETOR ASSY. (NOT AVAILABLE)

007

Honda

CARBURETOR ASSY. (NOT AVAILABLE)16100-880-672

Required: 1

CARBURETOR ASSY. (NOT AVAILABLE)

Price unavailable

NOZZLE, MAIN (NOT AVAILABLE)

008

Honda

NOZZLE, MAIN (NOT AVAILABLE)16166-874-004

Required: 1

NOZZLE, MAIN (NOT AVAILABLE)

Price unavailable

VALVE ASSY., SOLENOID (NOT AVAILABLE)

009

Honda

VALVE ASSY., SOLENOID (NOT AVAILABLE)16200-880-003

Required: 1

VALVE ASSY., SOLENOID (NOT AVAILABLE)

Price unavailable

SHIM, CARBURETOR (NOT AVAILABLE)

010

Honda

SHIM, CARBURETOR (NOT AVAILABLE)16212-880-305

Required: 1

SHIM, CARBURETOR (NOT AVAILABLE)

Price unavailable

STAY, SOLENOID (NOT AVAILABLE)

011

Honda

STAY, SOLENOID (NOT AVAILABLE)16260-880-000

Required: 1

STAY, SOLENOID (NOT AVAILABLE)

Price unavailable

ROD, CHOKE (NOT AVAILABLE)

012

Honda

ROD, CHOKE (NOT AVAILABLE)16264-880-000

Required: 1

ROD, CHOKE (NOT AVAILABLE)

Price unavailable

CHOKE, SOLENOID (NOT AVAILABLE)

013

Honda

CHOKE, SOLENOID (NOT AVAILABLE)16265-880-003

Required: 1

CHOKE, SOLENOID (NOT AVAILABLE)

Price unavailable

ROD, MANUAL CHOKE (NOT AVAILABLE)

014

Honda

ROD, MANUAL CHOKE (NOT AVAILABLE)16266-880-000

Required: 1

ROD, MANUAL CHOKE (NOT AVAILABLE)

Price unavailable

LEVER, CHOKE (NOT AVAILABLE)

015

Honda

LEVER, CHOKE (NOT AVAILABLE)16267-880-000

Required: 1

LEVER, CHOKE (NOT AVAILABLE)

Price unavailable

SPRING, CHOKE RETURN (NOT AVAILABLE)

016

Honda

SPRING, CHOKE RETURN (NOT AVAILABLE)16268-880-000

Required: 1

SPRING, CHOKE RETURN (NOT AVAILABLE)

Price unavailable

GASKET, AIR CLEANER (NOT AVAILABLE)

017

Honda

GASKET, AIR CLEANER (NOT AVAILABLE)16269-823-000

Required: 1

GASKET, AIR CLEANER (NOT AVAILABLE)

Price unavailable

COVER, SOLENOID (NOT AVAILABLE)

018

Honda

COVER, SOLENOID (NOT AVAILABLE)16270-880-010

Required: 1

COVER, SOLENOID (NOT AVAILABLE)

Price unavailable

WASHER, LOCK (NOT AVAILABLE)

019

Honda

WASHER, LOCK (NOT AVAILABLE)16271-880-000

Required: 1

WASHER, LOCK (NOT AVAILABLE)

Price unavailable

SPRING, CHOKE (NOT AVAILABLE)

020

Honda

SPRING, CHOKE (NOT AVAILABLE)16272-880-000

Required: 1

SPRING, CHOKE (NOT AVAILABLE)

Price unavailable

GROMMET, TUBE (NOT AVAILABLE)

021

Honda

GROMMET, TUBE (NOT AVAILABLE)16852-880-000

Required: 1

GROMMET, TUBE (NOT AVAILABLE)

Price unavailable

-15%

BOLT, HEX. (5X12)

BOLT, HEX. (5X12)92101-05012-0G

BOLT, HEX. (5X12)

~~$1.26~~

$1.07

You save $0.19

-15%

SCREW, PAN (5X10)

SCREW, PAN (5X10)93500-05010-0A

SCREW, PAN (5X10)

~~$1.10~~

$0.94

You save $0.17

-15%

NUT, HEX. (5MM)

NUT, HEX. (5MM)94001-05000-0S

NUT, HEX. (5MM)

~~$3.34~~

$2.84

You save $0.50

NUT, HEX. (6MM)

025

Honda

NUT, HEX. (6MM)94001-06000-0S

Required: 2

NUT, HEX. (6MM)

Price unavailable

-15%

NUT, HEX. (6MM)

NUT, HEX. (6MM)94001-06200-0S

NUT, HEX. (6MM)

~~$1.60~~

$1.36

You save $0.24

-15%

WASHER, PLAIN (5MM)

WASHER, PLAIN (5MM)94101-05000

WASHER, PLAIN (5MM)

~~$1.20~~

$1.02

You save $0.18

-20%

WASHER, PLAIN (6MM)

WASHER, PLAIN (6MM)94101-06800

WASHER, PLAIN (6MM)

In stock

Only 2 remaining

~~$0.80~~

$0.64

You save $0.16

-15%

WASHER, SPRING (5MM)

WASHER, SPRING (5MM)94111-05000

WASHER, SPRING (5MM)

~~$1.38~~

$1.17

You save $0.21

-15%

WASHER, SPRING (6MM)

WASHER, SPRING (6MM)94111-06800

WASHER, SPRING (6MM)

~~$1.38~~

$1.17

You save $0.21

-15%

PIN, SPLIT (2.0X15)

PIN, SPLIT (2.0X15)94201-20150

PIN, SPLIT (2.0X15)

~~$1.26~~

$1.07

You save $0.19

-15%

BULK HOSE (3.5X3000)

BULK HOSE (3.5X3000)95001-35003-60M

BULK HOSE, FUEL (3.5X3000) OEM CUT SIZE: (3.5X270)

~~$29.44~~

$25.02

You save $4.42

-15%

CLIP, TUBE (B7)

CLIP, TUBE (B7)95002-02070

CLIP, TUBE (B7)

~~$2.20~~

$1.87

You save $0.33

JET, MAIN (#92) (NOT AVAILABLE)

033

Honda

JET, MAIN (#92) (NOT AVAILABLE)99101-862-0920

Required: 1

JET, MAIN (#92) (NOT AVAILABLE)

Price unavailable
