All diagrams for this model

All Years Generator EG - EG1500 A RECOIL STARTER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

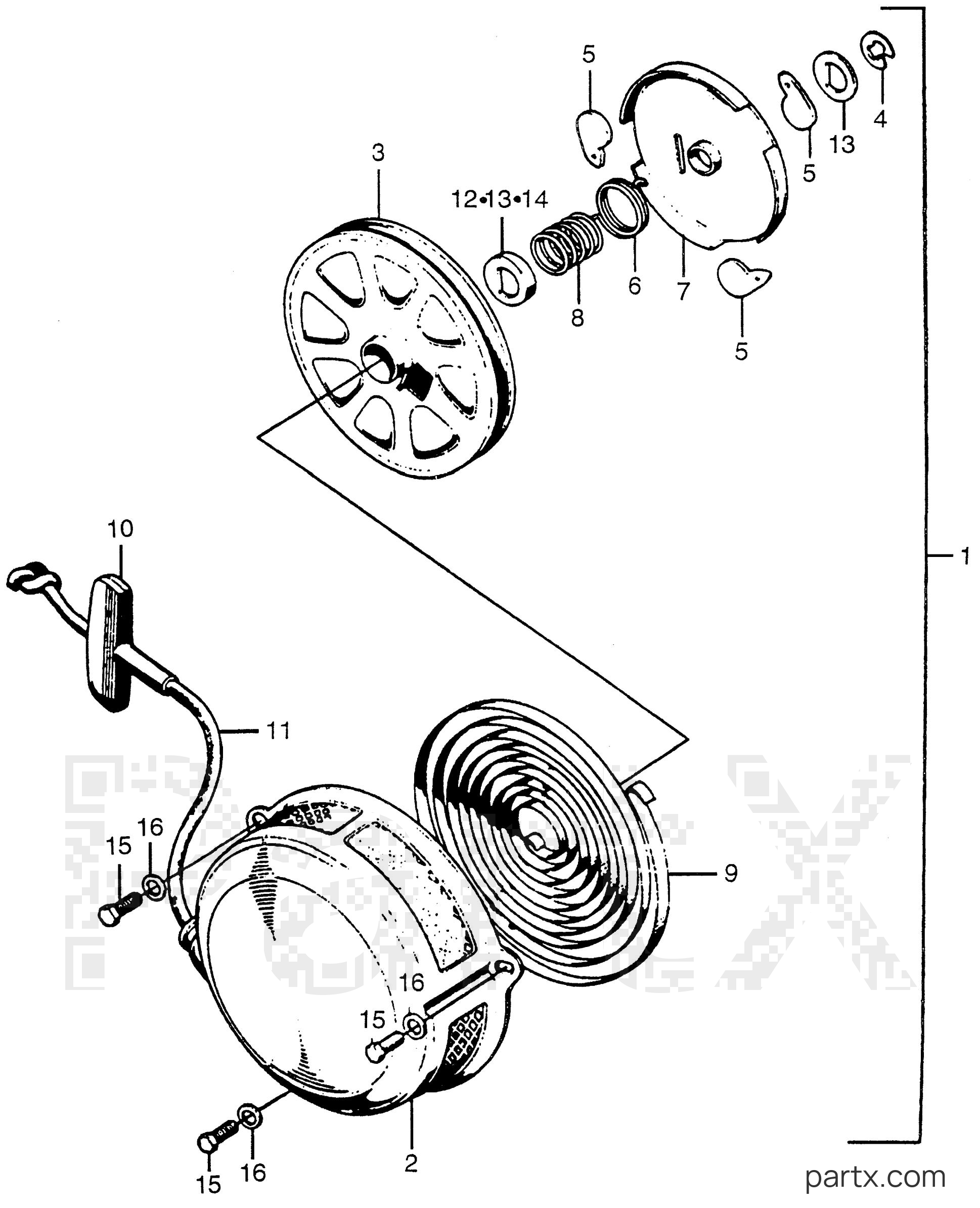

Honda EG1500 A - RECOIL STARTER
Change View:
RECOIL, STARTER *R8*(BRIGHT RED) (NOT AVAILABLE)
001
Honda
RECOIL, STARTER *R8*(BRIGHT RED) (NOT AVAILABLE)28400-848-024H
Required: 1
RECOIL, STARTER *R8*(BRIGHT RED) (NOT AVAILABLE)
Price unavailable
CASE, RECOIL STARTER *R8*(BRIGHT RED) (NOT AVAILABLE)
002
Honda
CASE, RECOIL STARTER *R8*(BRIGHT RED) (NOT AVAILABLE)28410-848-811H
Required: 1
CASE, RECOIL STARTER *R8*(BRIGHT RED) (NOT AVAILABLE)
Price unavailable
PULLEY, RECOIL STARTER (NOT AVAILABLE)
003
Honda
PULLEY, RECOIL STARTER (NOT AVAILABLE)28420-848-810
Required: 1
PULLEY, RECOIL STARTER (NOT AVAILABLE)
Price unavailable
E-RING (NOT AVAILABLE)
004
Honda
E-RING (NOT AVAILABLE)28423-810-810
Required: 1
E-RING (NOT AVAILABLE)
Price unavailable
-15%
RATCHET, STARTER
005
Honda
RATCHET, STARTER28441-848-810
Required: 3
RATCHET, STARTER
Cross Ship
Leaves in 2-5 days
$7.68
$6.53
You save $1.15
More details
-15%
SPRING, SET
006
Honda
SPRING, SET28455-822-650
Required: 1
SPRING, SET
Cross Ship
Leaves in 2-5 days
$4.66
$3.96
You save $0.70
More details
PLATE, FRICTION (NOT AVAILABLE)
007
Honda
PLATE, FRICTION (NOT AVAILABLE)28445-848-810
Required: 1
PLATE, FRICTION (NOT AVAILABLE)
Price unavailable
-15%
SPRING, FRICTION
008
Honda
SPRING, FRICTION28446-809-810
Required: 1
SPRING, FRICTION (NOT AVAILABLE)
Cross Ship
Leaves in 2-5 days
$1.76
$1.50
You save $0.26
More details
-15%
SPRING
009
Honda
SPRING28451-848-810
Required: 1
SPRING, STARTER RETURN (SOURCE: VINTAGE PARTS INC.)
Cross Ship
Leaves in 2-5 days
$38.80
$32.98
You save $5.82
More details
KNOB, STARTER
010
Honda
KNOB, STARTER28461-823-810
Required: 1
KNOB, STARTER
Price unavailable
ROPE, RECOIL STARTER (#6X54")
011
Honda
ROPE, RECOIL STARTER (#6X54")28471-848-810
Required: 1
ROPE, RECOIL STARTER (#6X54")
Price unavailable
WASHER A (NOT AVAILABLE)
012
Honda
WASHER A (NOT AVAILABLE)90481-809-810
Required: 1
WASHER A (NOT AVAILABLE)
Price unavailable
WASHER B (NOT AVAILABLE)
013
Honda
WASHER B (NOT AVAILABLE)90482-822-650
Required: 1
WASHER B (NOT AVAILABLE)
Price unavailable
-15%
BOLT, HEX. (6X12)
015
Honda
BOLT, HEX. (6X12)92101-06012-0A
Required: 3
BOLT, HEX. (6X12)
Cross Ship
Leaves in 2-5 days
$1.72
$1.46
You save $0.26
More details
-20%
WASHER, PLAIN (6MM)
016
Honda
WASHER, PLAIN (6MM)94101-06800
Required: 3
WASHER, PLAIN (6MM)
Cross Ship
Leaves in 2-5 days
$0.80
$0.64
You save $0.16
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
