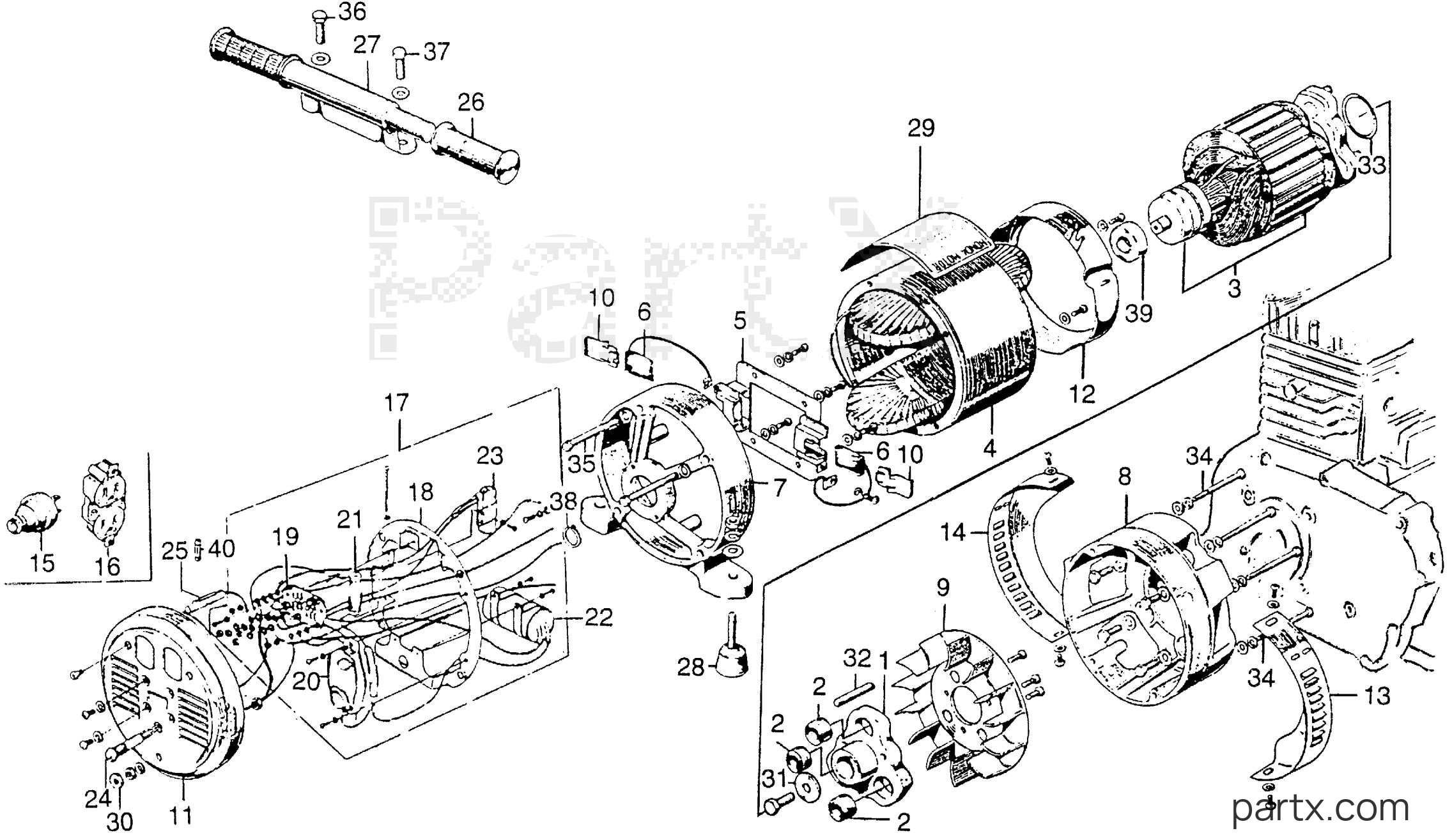

Honda ER1500 A - ER1500 CONTROL BOX - GENERATOR
Change View:
FLANGE, COUPLING A (NOT AVAILABLE)
001
Honda
FLANGE, COUPLING A (NOT AVAILABLE)13341-842-000
Required: 1
FLANGE, COUPLING A (NOT AVAILABLE)
Price unavailable
RUBBER, COUPLING (NOT AVAILABLE)
002
Honda
RUBBER, COUPLING (NOT AVAILABLE)13345-842-010
Required: 3
RUBBER, COUPLING (NOT AVAILABLE)
Price unavailable
ROTOR ASSY. (NOT AVAILABLE)
003
Honda
ROTOR ASSY. (NOT AVAILABLE)31004-842-673
Required: 1
ROTOR ASSY. (NOT AVAILABLE)
Price unavailable
STATOR ASSY. (NOT AVAILABLE)
004
Honda
STATOR ASSY. (NOT AVAILABLE)31005-842-671
Required: 1
STATOR ASSY. (NOT AVAILABLE)
Price unavailable
RIG PLATE ASSY. (NOT AVAILABLE)
005
Honda
RIG PLATE ASSY. (NOT AVAILABLE)31106-842-168
Required: 1
RIG PLATE ASSY. (NOT AVAILABLE)
Price unavailable
BRUSH (NOT AVAILABLE)
006
Honda
BRUSH (NOT AVAILABLE)31107-842-168
Required: 2
BRUSH (NOT AVAILABLE)
Price unavailable
COVER, END (NOT AVAILABLE)
007
Honda
COVER, END (NOT AVAILABLE)31108-854-158
Required: 1
COVER, END (NOT AVAILABLE)
Price unavailable
COVER, FR. (NOT AVAILABLE)
008
Honda
COVER, FR. (NOT AVAILABLE)31109-854-158
Required: 1
COVER, FR. (NOT AVAILABLE)
Price unavailable
FAN, GENERATOR (NOT AVAILABLE)
009
Honda
FAN, GENERATOR (NOT AVAILABLE)31111-842-158
Required: 1
FAN, GENERATOR (NOT AVAILABLE)
Price unavailable
SPRING, BRUSH (NOT AVAILABLE)
010
Honda
SPRING, BRUSH (NOT AVAILABLE)31112-842-168
Required: 2
SPRING, BRUSH (NOT AVAILABLE)
Price unavailable
COVER, CLEANER (NOT AVAILABLE)
011
Honda
COVER, CLEANER (NOT AVAILABLE)31113-854-158
Required: 1
COVER, CLEANER (NOT AVAILABLE)
Price unavailable
PLATE, GUIDE (NOT AVAILABLE)
012
Honda
PLATE, GUIDE (NOT AVAILABLE)31129-842-158
Required: 1
PLATE, GUIDE (NOT AVAILABLE)
Price unavailable
PROTECTOR A, GENERATOR FAN *R8*(BRIGHT RED) (NOT AVAILABLE)
013
Honda
PROTECTOR A, GENERATOR FAN *R8*(BRIGHT RED) (NOT AVAILABLE)31181-854-158H
Required: 1
PROTECTOR A, GENERATOR FAN *R8*(BRIGHT RED) (NOT AVAILABLE)
Price unavailable
PROTECTOR B, GENERATOR FAN *R8*(BRIGHT RED) (NOT AVAILABLE)
014
Honda
PROTECTOR B, GENERATOR FAN *R8*(BRIGHT RED) (NOT AVAILABLE)31182-854-158H
Required: 1
PROTECTOR B, GENERATOR FAN *R8*(BRIGHT RED) (NOT AVAILABLE)
Price unavailable
-15%
RECPTL (15A/125V)
016
Honda
RECPTL (15A/125V)32333-880-680
Required: 1
RECEPTACLE (15A/125V)
Cross Ship
Leaves in 2-5 days
$80.04
$68.03
You save $12.01
More details
TRANSISTOR REGULATOR ASSY. (NOT AVAILABLE)
017
Honda
TRANSISTOR REGULATOR ASSY. (NOT AVAILABLE)32350-854-168
Required: 1
TRANSISTOR REGULATOR ASSY. (NOT AVAILABLE)
Price unavailable
HOLDER (NOT AVAILABLE)
018
Honda
HOLDER (NOT AVAILABLE)32351-854-168
Required: 1
HOLDER (NOT AVAILABLE)
Price unavailable
DIODE ASSY. (NOT AVAILABLE)
019
Honda
DIODE ASSY. (NOT AVAILABLE)32352-854-158
Required: 1
DIODE ASSY. (NOT AVAILABLE)
Price unavailable
CONTROL ASSY. (NOT AVAILABLE)
020
Honda
CONTROL ASSY. (NOT AVAILABLE)32353-854-168
Required: 1
CONTROL ASSY. (NOT AVAILABLE)
Price unavailable
RESISTOR ASSY. (NOT AVAILABLE)
021
Honda
RESISTOR ASSY. (NOT AVAILABLE)32354-854-168
Required: 1
RESISTOR ASSY. (NOT AVAILABLE)
Price unavailable
CONDENSER ASSY. A (NOT AVAILABLE)
022
Honda
CONDENSER ASSY. A (NOT AVAILABLE)32355-854-168
Required: 1
CONDENSER ASSY. A (NOT AVAILABLE)
Price unavailable
CONDENSER ASSY. B (NOT AVAILABLE)
023
Honda
CONDENSER ASSY. B (NOT AVAILABLE)32356-854-168
Required: 1
CONDENSER ASSY. B (NOT AVAILABLE)
Price unavailable
LAMP, PILOT (NOT AVAILABLE)
024
Honda
LAMP, PILOT (NOT AVAILABLE)37561-854-730
Required: 1
LAMP, PILOT (NOT AVAILABLE)
Price unavailable
HOLDER, FUSE (NOT AVAILABLE)
025
Honda
HOLDER, FUSE (NOT AVAILABLE)38211-842-159
Required: 1
HOLDER, FUSE (NOT AVAILABLE)
Price unavailable
-15%
GRIP B, L. HANDLEBAR
026
Honda
GRIP B, L. HANDLEBAR95011-12200
Required: 2
GRIP B, L. HANDLEBAR
Cross Ship
Leaves in 2-5 days
$8.06
$6.85
You save $1.21
More details
HANDLE, CARRYING (NOT AVAILABLE)
027
Honda
HANDLE, CARRYING (NOT AVAILABLE)68110-848-940
Required: 1
HANDLE, CARRYING (NOT AVAILABLE)
Price unavailable
RUBBER, GENERATOR (LOWER) (NOT AVAILABLE)
028
Honda
RUBBER, GENERATOR (LOWER) (NOT AVAILABLE)68311-842-000
Required: 2
RUBBER, GENERATOR (LOWER) (NOT AVAILABLE)
Price unavailable
PLATE, CAUTION (ATTACHED TO STATOR) (NOT AVAILABLE)
029
Honda
PLATE, CAUTION (ATTACHED TO STATOR) (NOT AVAILABLE)87551-854-730
Required: 1
PLATE, CAUTION (ATTACHED TO STATOR) (NOT AVAILABLE)
Price unavailable
-15%
NUT, SPECIAL (6MM)
030
Honda
NUT, SPECIAL (6MM)90381-812-710
Required: 1
NUT, SPECIAL (6MM)
Cross Ship
Leaves in 2-5 days
$2.40
$2.04
You save $0.36
More details
-15%
WASHER (8MM)
031
Honda
WASHER (8MM)90473-842-000
Required: 2
WASHER (8MM)
Cross Ship
Leaves in 2-5 days
$1.88
$1.60
You save $0.28
More details
-15%
KEY (7X7X33)
032
Honda
KEY (7X7X33)90741-889-810
Required: 1
KEY (7X7X33) (OVER SIZE) (YELLOW)
Cross Ship
Leaves in 2-5 days
$9.32
$7.92
You save $1.40
More details
-15%
O-RING (35.5X3)
033
Honda
O-RING (35.5X3)91301-428-003
Required: 1
O-RING (35.5X3) (NOK)
Cross Ship
Leaves in 2-5 days
$2.70
$2.29
You save $0.41
More details
-15%
BOLT, HEX. (6X55)
034
Honda
BOLT, HEX. (6X55)92101-06055-0A
Required: 4
BOLT, HEX. (6X55)
Cross Ship
Leaves in 2-5 days
$2.54
$2.16
You save $0.38
More details
-15%
BOLT, HEX. (6X55)
035
Honda
BOLT, HEX. (6X55)92101-06055-0A
Required: 4
BOLT, HEX. (6X55)
Cross Ship
Leaves in 2-5 days
$2.54
$2.16
You save $0.38
More details
-15%
BOLT, HEX. (8X14)
036
Honda
BOLT, HEX. (8X14)92101-08014-0A
Required: 1
BOLT, HEX. (8X14)
Cross Ship
Leaves in 2-5 days
$1.96
$1.67
You save $0.29
More details
BOLT, HEX. (8X22)
037
Honda
BOLT, HEX. (8X22)92000-08022-0A
Required: 1
BOLT, HEX. (8X22)
Price unavailable
BOLT, HEX. (8X22) (NOT AVAILABLE)
037
Honda
BOLT, HEX. (8X22) (NOT AVAILABLE)92101-08022-0A
Required: 1
BOLT, HEX. (8X22) (NOT AVAILABLE)
Price unavailable
-15%
CIRCLIP (17MM)
038
Honda
CIRCLIP (17MM)94510-17000
Required: 1
CIRCLIP, OUTER (17MM)
Cross Ship
Leaves in 2-5 days
$1.48
$1.26
You save $0.22
More details
-15%
FUSE (15A)
040
Honda
FUSE (15A)98200-11500
Required: 1
FUSE (15A)
Cross Ship
Leaves in 2-5 days
$1.10
$0.94
You save $0.17
More details
