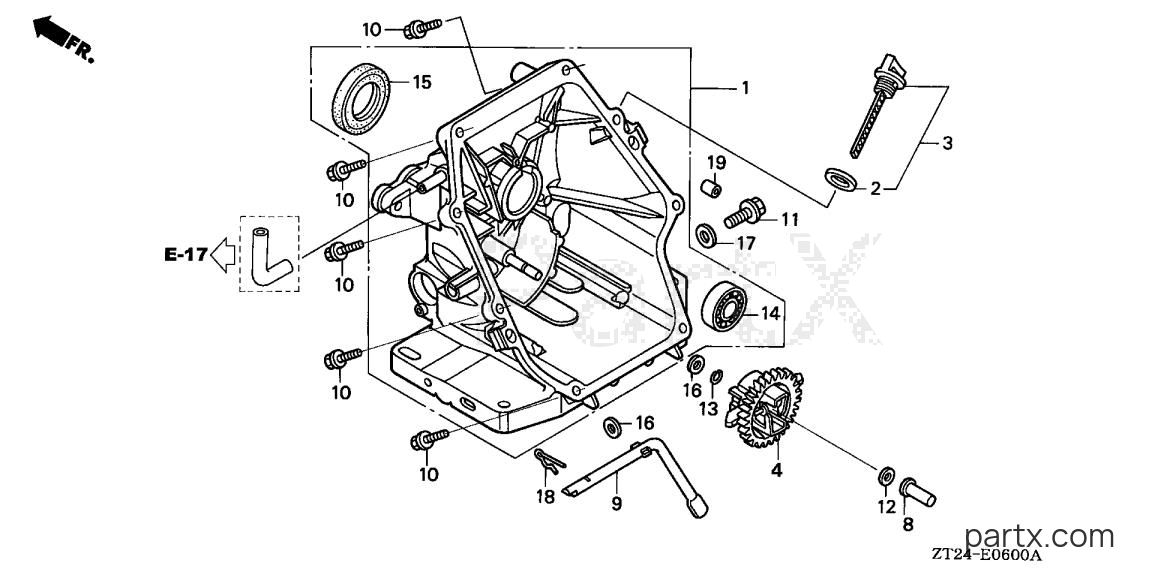

All Years Generator EN - EN2500 AN CRANKCASE COVER diagram
001
Honda
COVER ASSY., CRANKCASE (NOT AVAILABLE)11300-ZL8-406
Required: 1
COVER ASSY., CRANKCASE (NOT AVAILABLE)
Price unavailable
-15%
002
Honda
GSKT, OIL FILLER CAP15625-ZE1-003
Required: 1
GASKET, OIL FILLER CAP
In stock
Only 1 remaining
$2.74
You save $0.48
003
Honda
GAUGE ASSY., OIL LEVEL15650-ZL8-003
Required: 1
GAUGE ASSY., OIL LEVEL
Price unavailable
-15%
003
Honda
GAUGE, OIL LEVEL15650-ZL8-013
Required: 1
GAUGE ASSY., OIL LEVEL
$4.30
You save $0.76
-15%
004
Honda
GOVERNOR ASSY.16510-ZL8-000
Required: 1
GOVERNOR ASSY.
$10.10
You save $1.78
-15%
008
Honda
SLIDER, GOVERNOR16531-ZE1-000
Required: 1
SLIDER, GOVERNOR
$3.01
You save $0.53
-15%
009
Honda
SHAFT, GOVERNOR ARM16541-Z8A-000
Required: 1
SHAFT, GOVERNOR ARM
$0.76
You save $0.14
-20%
010
Honda
BOLT (6X25) (CT200)90121-952-000
Required: 8
BOLT, FLANGE (6X25) (CT200)
$2.19
You save $0.55
-15%
011
Honda
BOLT, DRAIN (12X15)90131-896-650
Required: 2
BOLT, DRAIN PLUG (12X15)
$4.13
You save $0.73
-15%
012
Honda
WASHER, THRUST (6MM)90451-ZE1-000
Required: 1
WASHER, THRUST (6MM)
$1.63
You save $0.29
-20%
013
Honda
CLIP90602-ZE1-000
Required: 1
CLIP, GOVERNOR HOLDER
$1.34
You save $0.34
-15%
014
Honda
BEARING (62/28)91001-ZL8-003
Required: 1
BEARING, RADIAL BALL (62/28)
$23.51
You save $4.15
-20%
015
Honda
OIL SEAL91202-ZL8-003
Required: 1
OIL SEAL (28X41.25X6)
In stock
Only 1 remaining
$5.65
You save $1.41
-20%
016
Honda
WASHER, PLAIN (6MM)94101-06800
Required: 2
WASHER, PLAIN (6MM)
$0.64
You save $0.16
-15%
017
Honda
WASHER, DRAIN (12MM)94109-12000
Required: 2
WASHER, DRAIN PLUG (12MM)
In stock
5+ in stock
$1.27
You save $0.23
-15%
018
Honda
PIN, LOCK (8MM)94251-08000
Required: 1
PIN, LOCK (8MM)
$1.27
You save $0.23
-15%
019
Honda
PIN, DOWEL (8X20)94301-08200
Required: 2
PIN, DOWEL (8X20)
$2.33
You save $0.41
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
