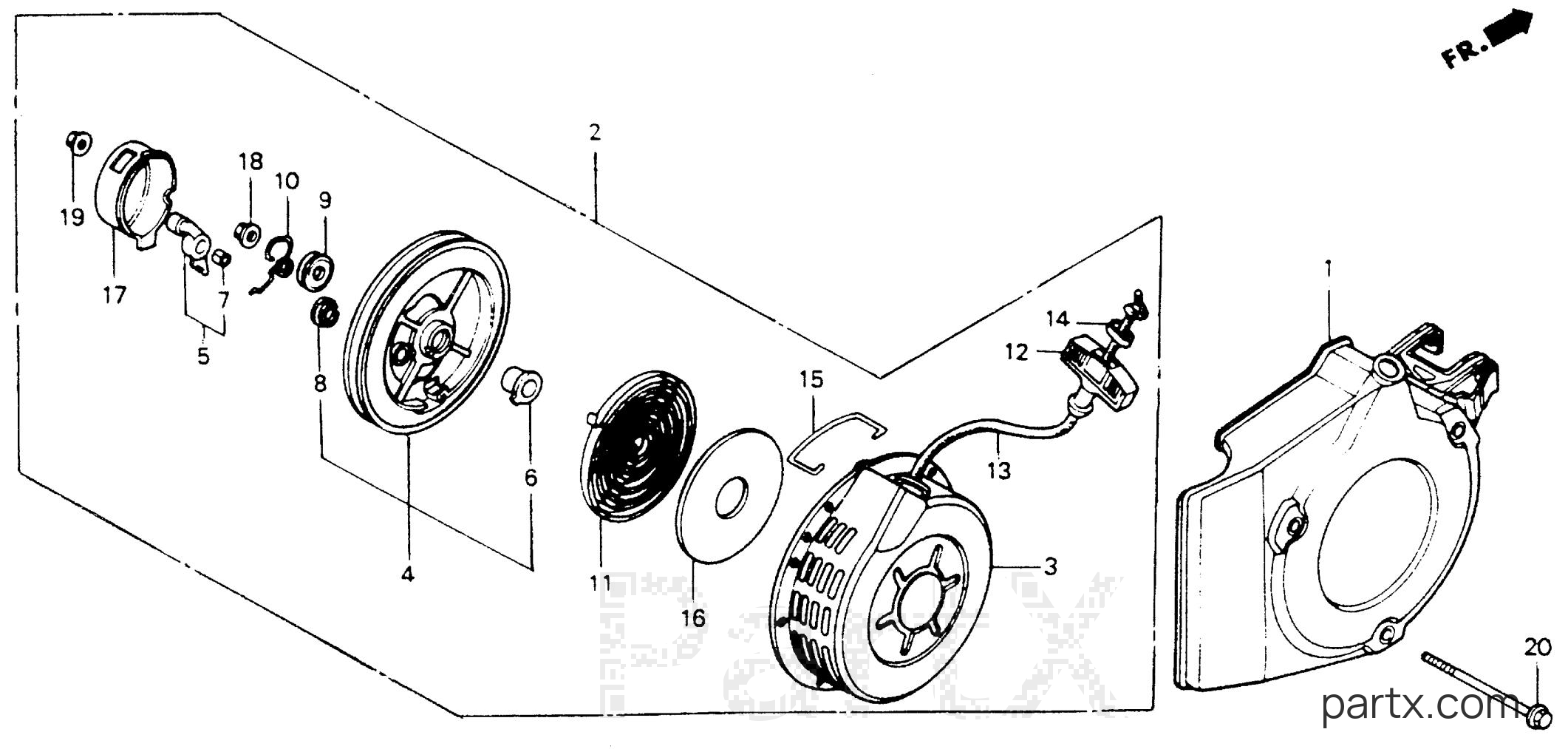

All Years Generator EM - EM4000 A RECOIL STARTER diagram
001
Honda
COVER, RECOIL(BRIGHT RED) (NOT AVAILABLE)19651-899-000H
Required: 1
COVER, RECOIL(BRIGHT RED) (NOT AVAILABLE)
Price unavailable
002
Honda
STARTER ASSY., RECOIL (NOT AVAILABLE)28400-ZA1-000
Required: 1
STARTER ASSY., RECOIL (NOT AVAILABLE)
Price unavailable
003
Honda
CASE, STARTER (NOT AVAILABLE)28410-ZA1-000
Required: 1
CASE, STARTER (NOT AVAILABLE)
Price unavailable
004
Honda
REEL, STARTER (NOT AVAILABLE)28420-890-020
Required: 1
REEL, STARTER (NOT AVAILABLE)
Price unavailable
-15%
$9.23
You save $1.63
006
Honda
BOSS, REEL (NOT AVAILABLE)28424-890-310
Required: 1
BOSS, REEL (NOT AVAILABLE)
Price unavailable
-15%
007
Honda
BUSH, RATCHET28425-890-300
Required: 1
BUSH, RATCHET
$3.45
You save $0.61
-15%
008
Honda
*28400-883-50528427-883-300
Required: 1
BUSH, REEL STARTER (NA USE ALT: 28400-883-505)
$4.13
You save $0.73
009
Honda
PLATE, FRICTION (NOT AVAILABLE)28430-890-000
Required: 1
PLATE, FRICTION (NOT AVAILABLE)
Price unavailable
010
Honda
SPRING, FRICTION (NOT AVAILABLE)28441-890-020
Required: 1
SPRING, FRICTION (NOT AVAILABLE)
Price unavailable
-15%
011
Honda
SPRING, RETURN28442-890-000
Required: 1
SPRING, RETURN (NOT AVAILABLE)
$30.06
You save $5.30
-15%
012
Honda
GRIP, STARTER28461-883-T20
Required: 1
GRIP, STARTER
$8.18
You save $1.44
013
Honda
ROPE, STARTER28462-890-010
Required: 1
ROPE, STARTER
Price unavailable
-15%
014
Honda
SUPPORT, GRIP28463-883-000
Required: 1
SUPPORT, GRIP (NOT AVAILABLE)
$3.37
You save $0.59
015
Honda
HOLDER, ROPE (NOT AVAILABLE)28466-890-010
Required: 1
HOLDER, ROPE (NOT AVAILABLE)
Price unavailable
016
Honda
PLATE, SIDE (NOT AVAILABLE)28467-890-010
Required: 1
PLATE, SIDE (NOT AVAILABLE)
Price unavailable
-15%
017
Honda
COVER, STARTER REEL28474-890-020
Required: 1
COVER, STARTER REEL (NOT AVAILABLE)
$10.93
You save $1.93
-20%
018
Honda
NUT, SELF-LOCK (8MM)90115-659-003
Required: 1
NUT, SELF-LOCK (8MM) (CLINCH)
In stock
Only 3 remaining
$0.75
You save $0.19
-20%
019
Honda
NUT, SELF-LOCK (6MM)90114-SA0-000
Required: 1
NUT, SELF-LOCK (6MM)
$3.12
You save $0.78
-15%
019
Honda
NUT, SELF-LOCK (6MM)90343-892-000
Required: 1
NUT, SELF-LOCK (6MM)
$3.32
You save $0.58
-15%
020
Honda
BOLT, FLANGE (6X70)95701-06070-00
Required: 3
BOLT, FLANGE (6X70)
$2.38
You save $0.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
