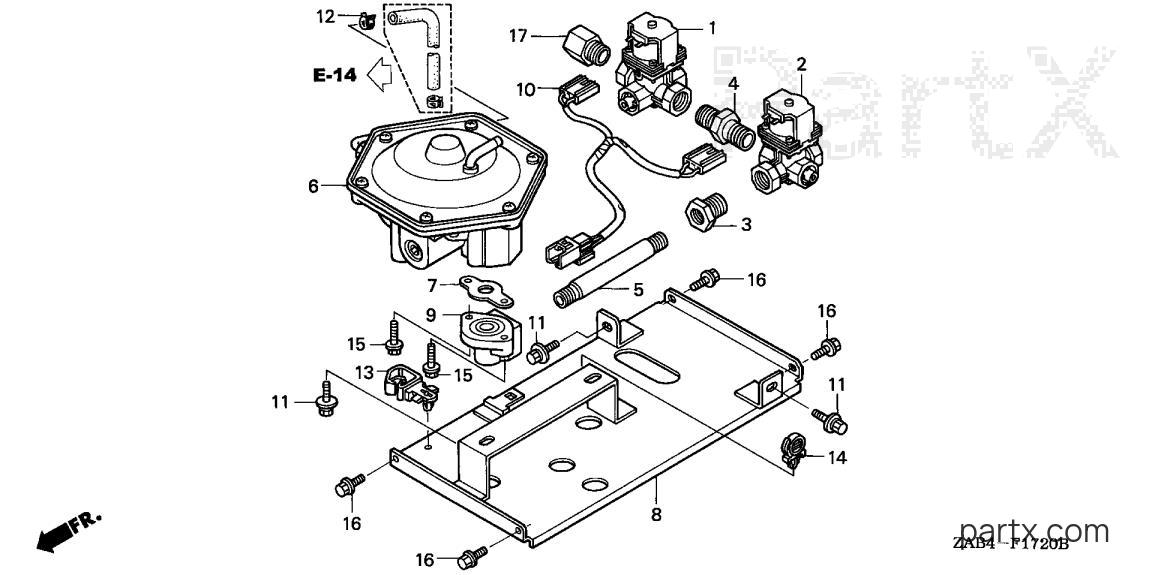

All Years Generator EM - EM6000GP A FUEL SYSTEM diagram
-15%
001
Honda
VALVE, SOLENOID16200-ZF6-F01
Required: 1
VALVE ASSY., SOLENOID (A) (NOT AVAILABLE)
$152.61
You save $26.93
-15%
002
Honda
VALVE, SOLENOID16201-ZF6-F01
Required: 1
VALVE ASSY., SOLENOID (B)
$157.20
You save $27.74
-15%
003
Honda
BUSHING (1/2X3/8)16234-ZF6-F00
Required: 1
BUSHING (1/2X3/8)
$15.10
You save $2.66
-15%
004
Honda
NIPPLE (1/2)16238-ZF6-F00
Required: 1
NIPPLE (1/2)
$21.37
You save $3.77
-15%
005
Honda
JOINT, IN. PIPE16239-ZF6-F01
Required: 1
JOINT, IN. PIPE
$15.30
You save $2.70
006
Honda
REGULATOR, LOW PRESSURE (NOT AVAILABLE)16380-ZF6-F10
Required: 1
REGULATOR, LOW PRESSURE (NOT AVAILABLE)
Price unavailable
-15%
007
Honda
GSKT, ZERO GOVERNOR16382-ZF6-F00
Required: 1
GASKET, ZERO GOVERNOR
$5.05
You save $0.89
-15%
008
Honda
STAY, ZERO GOVERNOR16387-ZF6-F00
Required: 1
STAY, ZERO GOVERNOR
$45.85
You save $8.09
-15%
009
Honda
PIPE, INLET17110-ZF6-F00
Required: 1
PIPE, INLET
$45.58
You save $8.04
-15%
010
Honda
HARNESS ASSY.32173-ZAA-K60
Required: 1
HARNESS ASSY., SOLENOID VALVE
$42.48
You save $7.50
-15%
011
Honda
BOLT-WASHER (6X16)90132-SP0-000
Required: 4
BOLT-WASHER (6X16)
$4.73
You save $0.83
-15%
012
Honda
CLIP, FUEL HOSE90678-MN5-000
Required: 1
CLIP, FUEL HOSE
$2.82
You save $0.50
-15%
013
Honda
CLIP (5MM-15MM)90678-ZA0-601
Required: 1
CLIP, HARNESS (5MM-15MM) (BLACK)
$3.32
You save $0.58
-15%
014
Honda
CLIP, HARNESS90684-ZA0-601
Required: 1
CLIP, HARNESS
$3.64
You save $0.64
-15%
015
Honda
BOLT-WASHER (6X25)93401-06025-00
Required: 2
BOLT-WASHER (6X25)
$0.95
You save $0.17
-20%
016
Honda
BOLT, FLANGE (6X10)95701-06010-00
Required: 4
BOLT, FLANGE (6X10)
$1.23
You save $0.31
-15%
017
Honda
ADAPTER (1/2X1/2)16237-ZF6-F10
Required: 1
ADAPTER (1/2X1/2)
$29.56
You save $5.22
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
