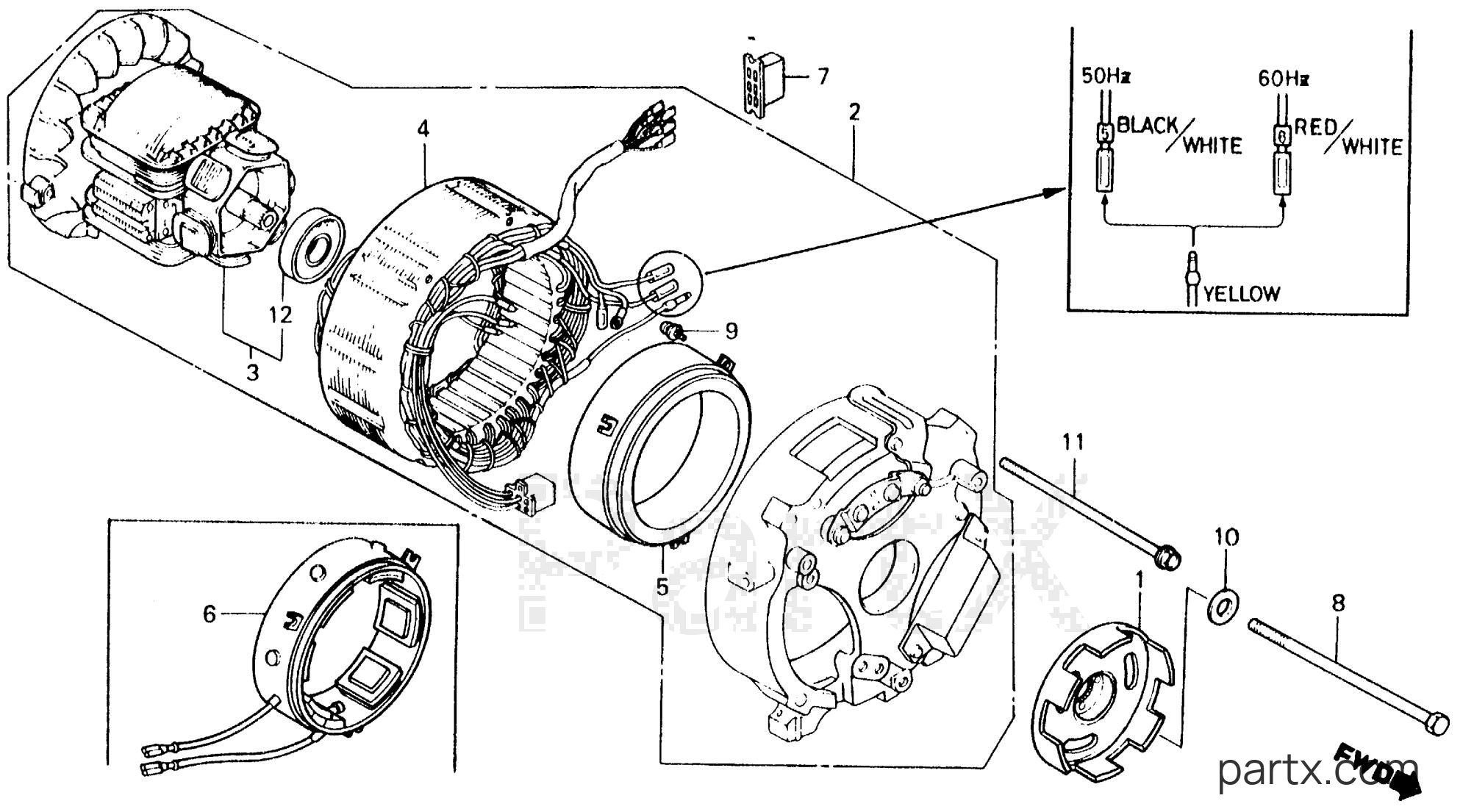

Honda EM500 A - ALTERNATOR
Change View:
PULLEY, STARTER (NOT AVAILABLE)
001
Honda
PULLEY, STARTER (NOT AVAILABLE)28570-892-000
Required: 1
PULLEY, STARTER (NOT AVAILABLE)
Price unavailable
ALTERNATOR ASSY. (NOT AVAILABLE)
002
Honda
ALTERNATOR ASSY. (NOT AVAILABLE)31100-892-632
Required: 1
ALTERNATOR ASSY. (NOT AVAILABLE)
Price unavailable
ROTOR (NOT AVAILABLE)
003
Honda
ROTOR (NOT AVAILABLE)31104-892-003
Required: 1
ROTOR (NOT AVAILABLE)
Price unavailable
STATOR ASSY. (NOT AVAILABLE)
004
Honda
STATOR ASSY. (NOT AVAILABLE)31105-892-632
Required: 1
STATOR ASSY. (NOT AVAILABLE)
Price unavailable
-15%
EXCITER ASSY.
006
Honda
EXCITER ASSY.31106-892-631
Required: 1
EXCITER ASSY.
Cross Ship
Leaves in 2-5 days
$154.34
$131.19
You save $23.15
More details
-15%
CONNECTOR (6 POLE)
007
Honda
CONNECTOR (6 POLE)32134-611-000
Required: 1
CONNECTOR, MALE (6 POLE)
Cross Ship
Leaves in 2-5 days
$9.58
$8.14
You save $1.44
More details
BOLT, HEX. (8X105) (NOT AVAILABLE)
008
Honda
BOLT, HEX. (8X105) (NOT AVAILABLE)90005-892-000
Required: 1
BOLT, HEX. (8X105) (NOT AVAILABLE)
Price unavailable
-15%
SCREW, TAP (5X12)
009
Honda
SCREW, TAP (5X12)90031-875-003
Required: 3
SCREW, TAPPING (5X12)
Cross Ship
Leaves in 2-5 days
$2.80
$2.38
You save $0.42
More details
-20%
WASHER, PLAIN (8MM)
010
Honda
WASHER, PLAIN (8MM)94103-08000
Required: 1
WASHER, PLAIN (8MM)
Cross Ship
Leaves in 2-5 days
$0.80
$0.64
You save $0.16
More details
-15%
BOLT, FLANGE (6X110)
011
Honda
BOLT, FLANGE (6X110)95701-06110-00
Required: 4
BOLT, FLANGE (6X110)
Cross Ship
Leaves in 2-5 days
$4.52
$3.84
You save $0.68
More details
-20%
BEARING (6002UU)
012
Honda
BEARING (6002UU)96150-60020-10
Required: 1
BEARING, RADIAL BALL (6002UU)
Cross Ship
Leaves in 2-5 days
$17.48
$13.98
You save $3.50
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
