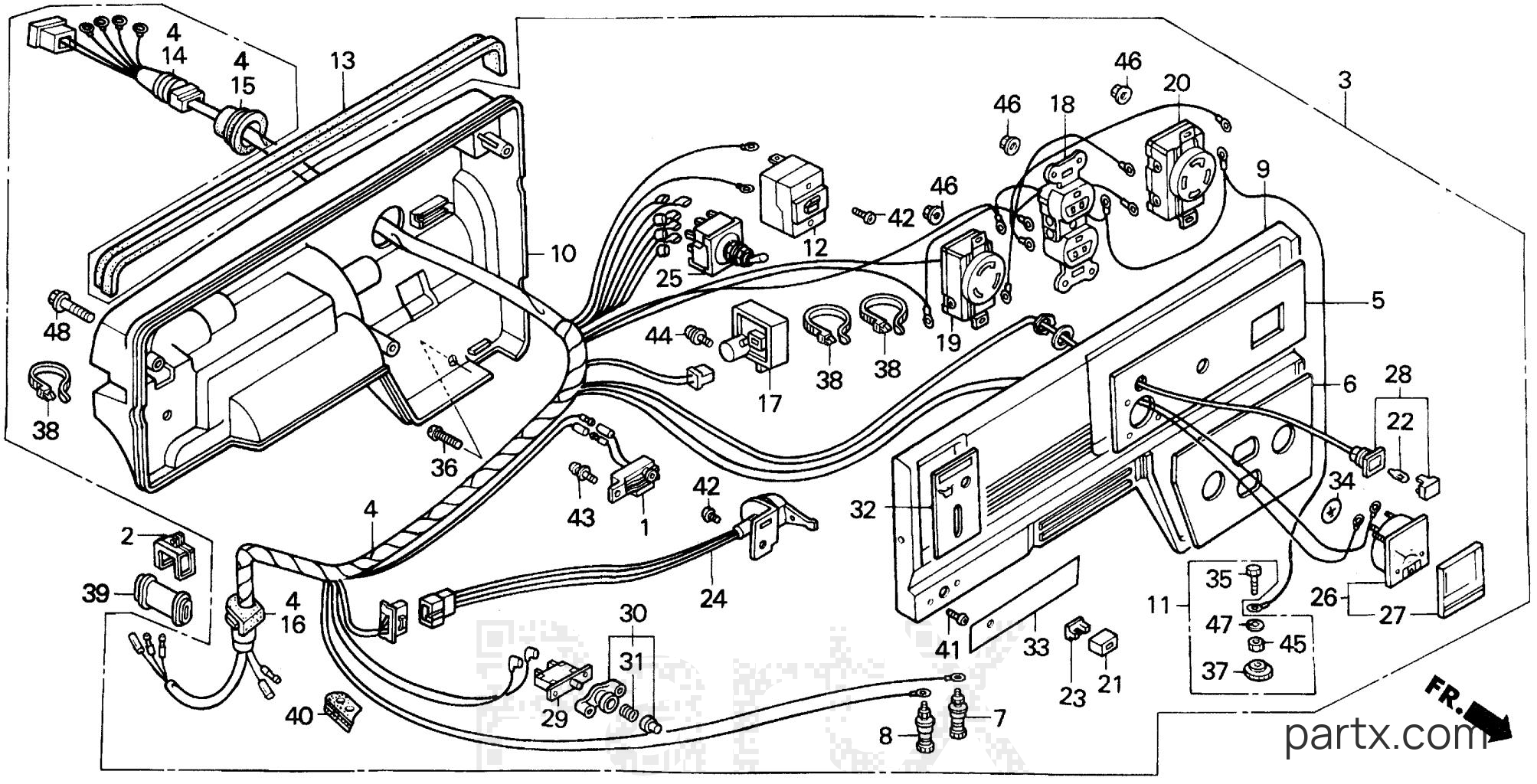

All Years Generator EM - EM5000X A EM5000X CONTROL BOX diagram
001
Honda
ALERT UNIT, OIL (NOT AVAILABLE)15520-ZC2-003
Required: 1
ALERT UNIT, OIL (NOT AVAILABLE)
Price unavailable
-15%
$5.44
You save $0.96
003
Honda
BOX ASSY., CONTROL *R8* (EM-A)(BRIGHT RED)31400-ZC2-731H
Required: 1
BOX ASSY., CONTROL *R8* (EM-A)(BRIGHT RED)
Price unavailable
003
Honda
BOX ASSY., CONTROL *R8* (EM-A)(BRIGHT RED) (NOT AVAILABLE)31400-ZC2-732ZA
Required: 1
BOX ASSY., CONTROL *R8* (EM-A)(BRIGHT RED) (NOT AVAILABLE)
Price unavailable
004
Honda
WIRE HARNESS ASSY. (EM-A)31404-ZC2-731
Required: 1
WIRE HARNESS ASSY. (EM-A)
Price unavailable
004
Honda
WIRE HARNESS ASSY. (EM-A) (NOT AVAILABLE)31404-ZC2-732
Required: 1
WIRE HARNESS ASSY. (EM-A) (NOT AVAILABLE)
Price unavailable
005
Honda
MARK, SWITCH PANEL (NOT AVAILABLE)31406-ZB4-630
Required: 1
MARK, SWITCH PANEL (NOT AVAILABLE)
Price unavailable
006
Honda
MARK, A.C. OUT (EMS-A) (NOT AVAILABLE)31408-ZC2-630
Required: 1
MARK, A.C. OUT (EMS-A) (NOT AVAILABLE)
Price unavailable
006
Honda
MARK, A.C. OUT (EMS-A) (NOT AVAILABLE)31408-ZC2-631
Required: 1
MARK, A.C. OUT (EMS-A) (NOT AVAILABLE)
Price unavailable
-15%
007
Honda
TERMINAL31408-880-000
Required: 1
TERMINAL, D.C. OUTPUT (+)
$38.74
You save $6.84
-15%
008
Honda
TERMINAL31409-880-000
Required: 1
TERMINAL, D.C. OUTPUT (-)
$38.74
You save $6.84
009
Honda
PANEL, CONTROL *R8*(BRIGHT RED)31420-ZB4-720H
Required: 1
PANEL, CONTROL *R8*(BRIGHT RED)
Price unavailable
009
Honda
PANEL, CONTROL *R8*(BRIGHT RED) (NOT AVAILABLE)31420-ZB4-721ZA
Required: 1
PANEL, CONTROL *R8*(BRIGHT RED) (NOT AVAILABLE)
Price unavailable
010
Honda
CASE, CONTROL *R8*(BRIGHT RED)31425-ZB4-000H
Required: 1
CASE, CONTROL *R8*(BRIGHT RED)
Price unavailable
010
Honda
CASE, CONTROL *R8*(BRIGHT RED)31425-ZB4-010ZA
Required: 1
CASE, CONTROL *R8*(BRIGHT RED)
Price unavailable
-15%
011
Honda
TERMINAL SET, GROUND31428-ZB4-013
Required: 1
TERMINAL SET, GROUND
$9.50
You save $1.68
-15%
012
Honda
BREAKER (19A)31430-ZC2-630
Required: 1
BREAKER, CIRCUIT (19A)
$262.95
You save $46.57
-15%
013
Honda
RUBBER, CONTROL31462-ZB4-000
Required: 1
RUBBER, CONTROL (NOT AVAILABLE)
$17.61
You save $3.11
-15%
014
Honda
GROMMET, A.C. WIRE31481-ZB4-003
Required: 1
GROMMET, A.C. WIRE (NOT AVAILABLE)
$12.29
You save $2.17
-15%
015
Honda
GROMMET, MAIN WIRE31482-ZB4-003
Required: 1
GROMMET, MAIN WIRE
$14.40
You save $2.54
-15%
016
Honda
GROMMET, SWITCH WIRE31483-ZB4-003
Required: 1
GROMMET, SWITCH WIRE (NOT AVAILABLE)
$10.34
You save $1.82
-15%
017
Honda
DIODE ASSY.31710-ZB4-731
Required: 1
DIODE ASSY. (NOT AVAILABLE)
$67.73
You save $11.95
-15%
018
Honda
RECPTL (20A/125V)32330-899-631
Required: 1
RECEPTACLE (20A/125V) (MATSUSHITA)
$58.50
You save $10.32
-15%
019
Honda
RECPTL (30A/125V)32332-880-710
Required: 1
RECEPTACLE (30A/125V)
$22.77
You save $4.02
-15%
019
Honda
RECPTL (30A/125V)32332-ZB4-630
Required: 1
RECEPTACLE (30A/125V)
$39.00
You save $6.88
020
Honda
RECEPTACLE (30A/125-250V)32334-ZA0-630
Required: 1
RECEPTACLE (30A/125-250V)
Price unavailable
-15%
020
Honda
RECEPTACLE32334-ZA0-631
Required: 1
RECEPTACLE (30A/125-250V) (NOT AVAILABLE)
$27.12
You save $4.79
-15%
021
Honda
KNOB, PETCOCK LEVER32343-892-003
Required: 1
KNOB, PETCOCK LEVER
$11.17
You save $1.97
-15%
022
Honda
BULB (12V/2W)34908-GE0-701
Required: 1
BULB, WEDGE BASE (12V/2W)
$2.99
You save $0.53
-15%
023
Honda
BUSH, CONTROL KNOB36106-892-003
Required: 1
BUSH, CONTROL KNOB
$5.39
You save $0.95
-15%
024
Honda
SWITCH, ENGINE STOP36110-ZB4-702
Required: 1
SWITCH ASSY., ENGINE STOP
$28.24
You save $4.98
-15%
025
Honda
SWITCH, VOLT CHANGE36221-899-630
Required: 1
SWITCH ASSY., VOLT CHANGE
$182.95
You save $32.89
-15%
026
Honda
METER, VOLT (300V)37450-ZB4-651
Required: 1
METER ASSY., VOLT (300V) (NOT AVAILABLE)
$253.30
You save $44.70
-15%
027
Honda
LENS, METER37451-ZB4-003
Required: 1
LENS, METER
$16.74
You save $2.96
-15%
028
Honda
SOCKET ASSY., LAMP37560-ZA0-801
Required: 1
SOCKET ASSY., LAMP (GREEN)
$37.93
You save $6.69
-15%
029
Honda
PROTECTOR, CIRCUIT38240-898-000
Required: 1
PROTECTOR, CIRCUIT (D.C.)
$30.58
You save $5.40
-15%
030
Honda
LENS, PROTECTOR38250-ZA8-701
Required: 1
LENS ASSY., PROTECTOR
$16.47
You save $2.91
-15%
031
Honda
SPRING, COIL38253-898-000
Required: 1
SPRING, COIL
$1.58
You save $0.28
-15%
032
Honda
MARK, ENGINE SWITCH87501-ZB4-E31
Required: 1
MARK, ENGINE SWITCH
$7.04
You save $1.24
033
Honda
MARK, D.C. OUT (NOT AVAILABLE)87524-ZB4-730
Required: 1
MARK, D.C. OUT (NOT AVAILABLE)
Price unavailable
-15%
034
Honda
MARK, GROUND87534-892-640
Required: 1
MARK, GROUND
$2.04
You save $0.36
-15%
035
Honda
BOLT, HEX. (6X22)90011-ZB4-000
Required: 1
BOLT, HEX. (6X22)
$3.91
You save $0.69
-15%
036
Honda
SCREW, GLOVE BOX90101-692-000
Required: 1
SCREW, GLOVE BOX
$1.36
You save $0.24
-15%
037
Honda
NUT, SPECIAL (6MM)90381-812-710
Required: 1
NUT, SPECIAL (6MM)
$2.04
You save $0.36
-15%
$4.90
You save $0.86
-15%
$9.84
You save $1.74
-15%
040
Honda
GROMMET, TUBE91601-ZB4-003
Required: 1
GROMMET, TUBE
$3.33
You save $0.59
-15%
041
Honda
SCREW, PAN (3X12)93500-03012-0H
Required: 2
SCREW, PAN (3X12)
$0.85
You save $0.15
-15%
042
Honda
SCREW, PAN (4X6)93500-04006-0H
Required: 3
SCREW, PAN (4X6)
$0.94
You save $0.17
-15%
043
Honda
SCREW-WASHER (4X10)93893-04010-08
Required: 1
SCREW-WASHER (4X10)
$1.39
You save $0.25
-15%
044
Honda
SCREW-WASHER (4X12)93893-04012-08
Required: 1
SCREW-WASHER (4X12)
$1.39
You save $0.25
044
Honda
SCREW-WASHER (4X12)93893-04012-18
Required: 1
SCREW-WASHER (4X12)
Price unavailable
-15%
045
Honda
NUT, HEX. (6MM)94001-06390-0S
Required: 1
NUT, HEX. (6MM)
$1.67
You save $0.29
-15%
046
Honda
NUT, FLANGE (4MM)94050-04000
Required: 6
NUT, FLANGE (4MM)
$1.27
You save $0.23
-15%
047
Honda
WASHER, SPRING (6MM)94111-06800
Required: 1
WASHER, SPRING (6MM)
$1.17
You save $0.21
-15%
048
Honda
BOLT, FLANGE (6X40)95701-06040-08
Required: 3
BOLT, FLANGE (6X40)
$1.96
You save $0.35
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
