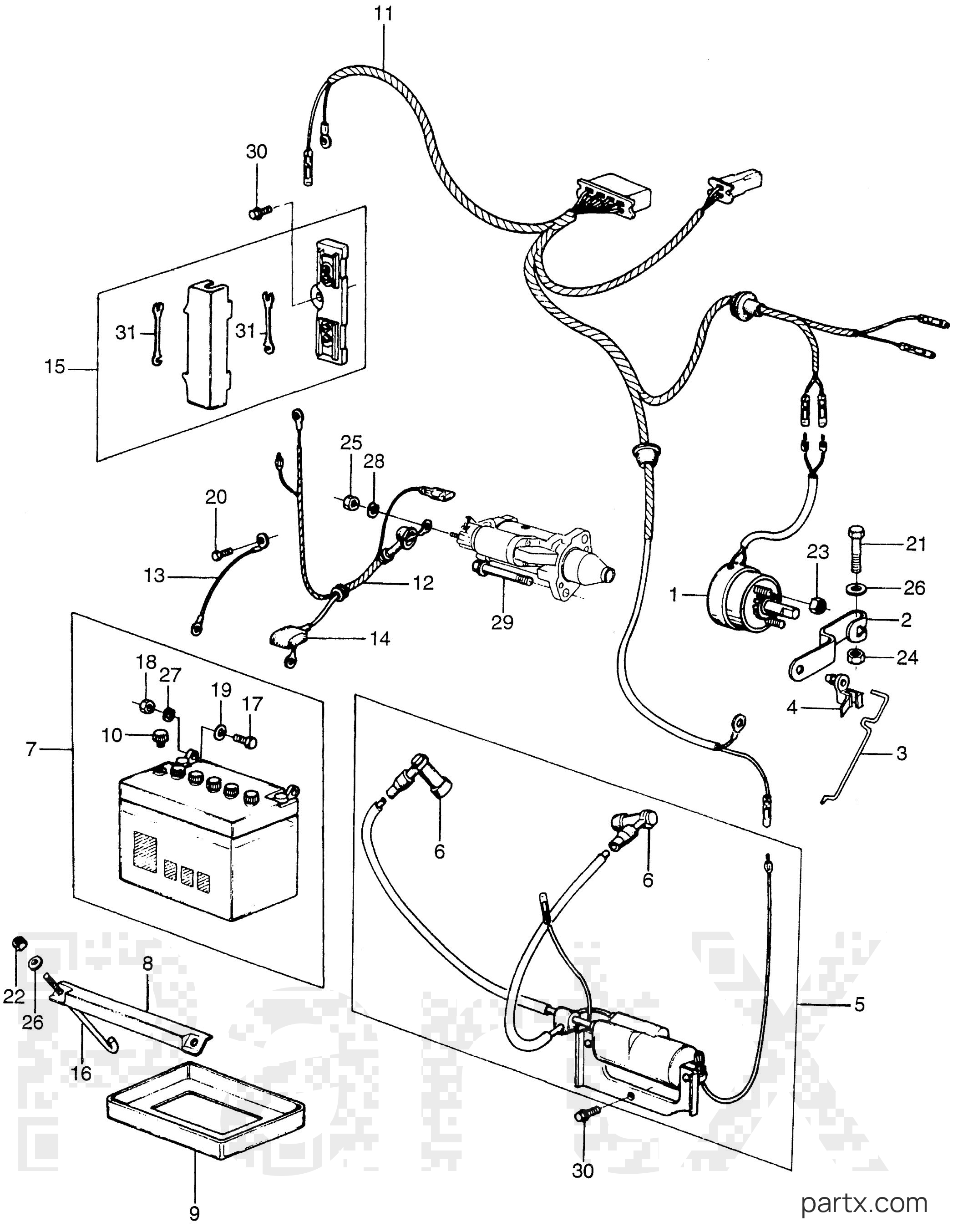

All Years Generator EM - EM5000 A BATTERY - IGNITION COIL - WIRE HARNESS diagram
001
Honda
SOLENOID, THROTTLE (NOT AVAILABLE)16150-862-023
Required: 1
SOLENOID, THROTTLE (NOT AVAILABLE)
Price unavailable
002
Honda
ARM, THROTTLE STOP (NOT AVAILABLE)16152-862-000
Required: 1
ARM, THROTTLE STOP (NOT AVAILABLE)
Price unavailable
003
Honda
ROD, THROTTLE STOP (NOT AVAILABLE)16153-862-000
Required: 1
ROD, THROTTLE STOP (NOT AVAILABLE)
Price unavailable
004
Honda
HOLDER, ROD (2MM) (NOT AVAILABLE)16155-862-003
Required: 1
HOLDER, ROD (2MM) (NOT AVAILABLE)
Price unavailable
005
Honda
COIL ASSY., IGNITION30500-862-004
Required: 1
COIL ASSY., IGNITION
Price unavailable
005
Honda
COIL ASSY., IGNITION30500-862-601
Required: 2
COIL ASSY., IGNITION
Price unavailable
006
Honda
CAP ASSY., NOISE SUPPRESSOR30700-292-610
Required: 2
CAP ASSY., NOISE SUPPRESSOR
Price unavailable
006
Honda
CAP ASSY., NOISE SUPPRESSOR30700-388-711
Required: 2
CAP ASSY., NOISE SUPPRESSOR
Price unavailable
007
Honda
BATTERY ASSY. (32A19RT-S) (YUASA)31500-750-013
Required: 1
BATTERY ASSY. (32A19RT-S) (YUASA)
Price unavailable
007
Honda
BATTERY (26A19RT-S) (YUASA)31500-751-013
Required: 1
BATTERY (26A19RT-S) (YUASA)
Price unavailable
-15%
007
Honda
BTTRY, MF (34A19RT)31500-750-023
Required: 1
BTTRY, MF (34A19RT) (S) (MSDS)
No longer availableSearch Nationwide Inventory
$95.50
You save $16.85
008
Honda
PLATE, BATTERY SETTING31512-611-010
Required: 1
PLATE, BATTERY SETTING
Price unavailable
008
Honda
PLATE, BATTERY SETTING (NOT AVAILABLE)31512-611-811
Required: 1
PLATE, BATTERY SETTING (NOT AVAILABLE)
Price unavailable
-15%
009
Honda
BOX, BATTERY31521-SD5-010
Required: 1
BOX, BATTERY
$26.32
You save $4.64
-15%
010
Honda
PLUG, VENT31542-538-007
Required: 6
PLUG, VENT (YUASA)
$8.92
You save $1.58
011
Honda
WIRE HARNESS ASSY. (NOT AVAILABLE)32100-862-014
Required: 1
WIRE HARNESS ASSY. (NOT AVAILABLE)
Price unavailable
012
Honda
CABLE, STARTER (NOT AVAILABLE)32310-862-004
Required: 1
CABLE, STARTER (NOT AVAILABLE)
Price unavailable
013
Honda
CABLE, GROUND (NOT AVAILABLE)32350-862-024
Required: 1
CABLE, GROUND (NOT AVAILABLE)
Price unavailable
014
Honda
COVER, BATTERY TERMINAL (NOT AVAILABLE)32411-538-000
Required: 1
COVER, BATTERY TERMINAL (NOT AVAILABLE)
Price unavailable
015
Honda
BOX ASSY., MAIN FUSE (NOT AVAILABLE)38250-862-008
Required: 1
BOX ASSY., MAIN FUSE (NOT AVAILABLE)
Price unavailable
016
Honda
BOLT, BATTERY SETTING (NOT AVAILABLE)65891-862-000
Required: 2
BOLT, BATTERY SETTING (NOT AVAILABLE)
Price unavailable
017
Honda
BOLT, BATTERY TERMINAL SETTING (NOT AVAILABLE)90151-538-017
Required: 2
BOLT, BATTERY TERMINAL SETTING (NOT AVAILABLE)
Price unavailable
018
Honda
NUT (6MM) (NOT AVAILABLE)90351-568-000
Required: 2
NUT (6MM) (NOT AVAILABLE)
Price unavailable
019
Honda
WASHER, BATTERY TERMINAL SETTING (6MM) (NOT AVAILABLE)90556-538-007
Required: 2
WASHER, BATTERY TERMINAL SETTING (6MM) (NOT AVAILABLE)
Price unavailable
020
Honda
BOLT, HEX. (6X10) (NOT AVAILABLE)92000-06010-39
Required: 1
BOLT, HEX. (6X10) (NOT AVAILABLE)
Price unavailable
-15%
021
Honda
BOLT, HEX. (5X20)92101-05020-0A
Required: 1
BOLT, HEX. (5X20)
$1.21
You save $0.21
-15%
022
Honda
NUT, HEX. (5MM)94001-05000-0S
Required: 2
NUT, HEX. (5MM)
$2.84
You save $0.50
-15%
023
Honda
NUT, HEX. (4MM)94002-04000-0S
Required: 2
NUT, HEX. (4MM)
$1.07
You save $0.19
-15%
024
Honda
NUT, HEX. (5MM)94002-05000-0S
Required: 1
NUT, HEX. (5MM)
$1.07
You save $0.19
-15%
025
Honda
NUT, HEX. (8MM)94002-08000-0S
Required: 1
NUT, HEX. (8MM)
$1.36
You save $0.24
-15%
026
Honda
WASHER, PLAIN (5MM)94101-05000
Required: 3
WASHER, PLAIN (5MM)
$1.02
You save $0.18
-15%
027
Honda
WASHER, SPRING (6MM)94111-06800
Required: 2
WASHER, SPRING (6MM)
$1.17
You save $0.21
-15%
028
Honda
WASHER, SPRING (8MM)94111-08000
Required: 1
WASHER, SPRING (8MM)
$1.02
You save $0.18
-15%
029
Honda
BOLT, FLANGE (8X60)95701-08060-08
Required: 2
BOLT, FLANGE (8X60)
$2.55
You save $0.45
-20%
030
Honda
BOLT, FLANGE (6X12)95701-06012-00
Required: 2
BOLT, FLANGE (6X12)
In stock
Only 1 remaining
$1.58
You save $0.40
-15%
031
Honda
FUSE G (45A)98200-64500
Required: 2
FUSE G (45A)
$2.07
You save $0.37
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
