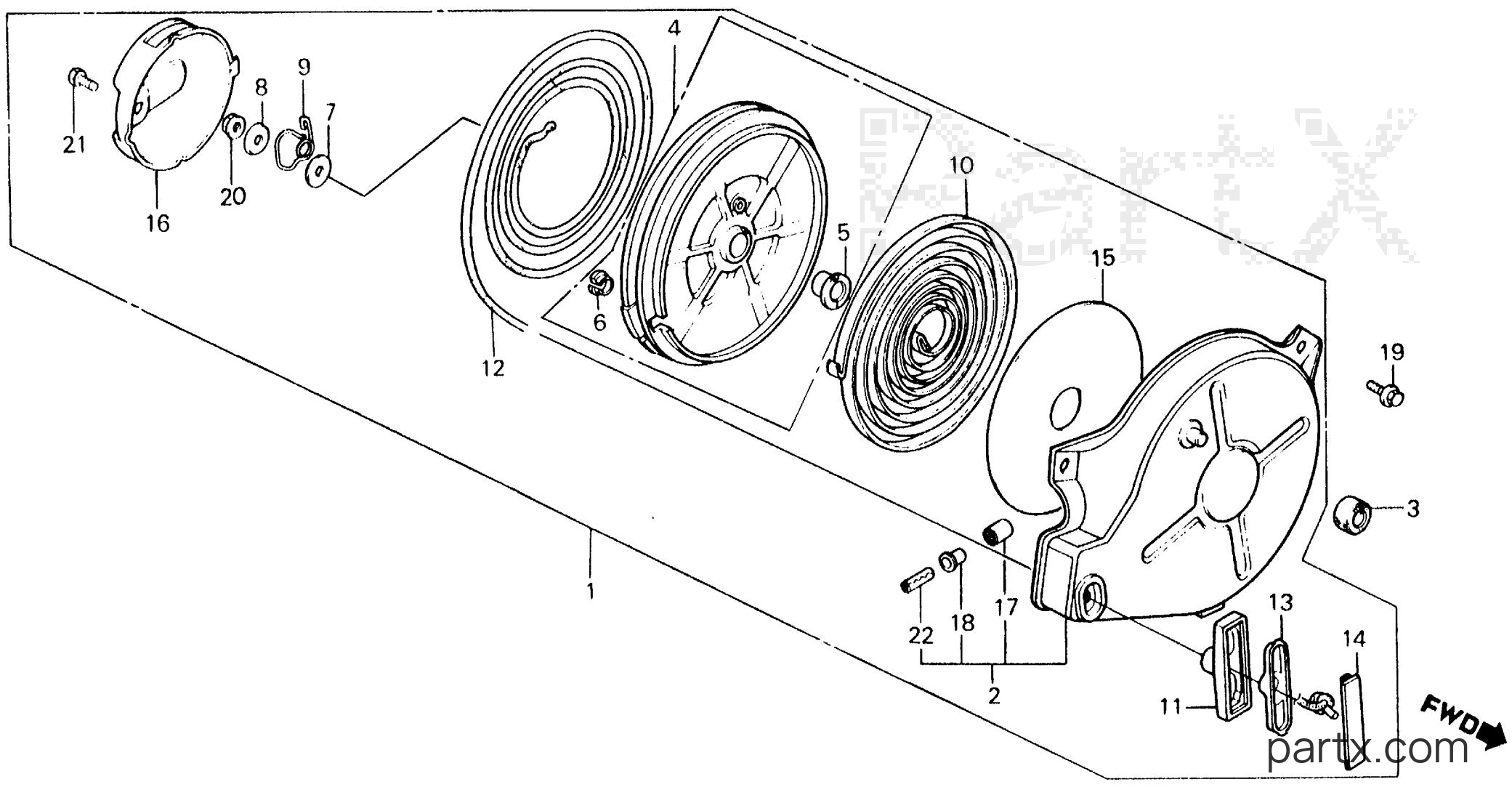

Honda EM500K1 A - RECOIL STARTER
Change View:
STARTER ASSY., RECOIL
001
Honda
STARTER ASSY., RECOIL28400-892-000
Required: 1
STARTER ASSY., RECOIL
Price unavailable
STARTER ASSY., RECOIL (NOT AVAILABLE)
001
Honda
STARTER ASSY., RECOIL (NOT AVAILABLE)28400-892-010
Required: 1
STARTER ASSY., RECOIL (NOT AVAILABLE)
Price unavailable
CASE, STARTER
002
Honda
CASE, STARTER28410-892-000
Required: 1
CASE, STARTER
Price unavailable
CASE, STARTER (NOT AVAILABLE)
002
Honda
CASE, STARTER (NOT AVAILABLE)28410-892-010
Required: 1
CASE, STARTER (NOT AVAILABLE)
Price unavailable
RUBBER, STOPPER (NOT AVAILABLE)
003
Honda
RUBBER, STOPPER (NOT AVAILABLE)28415-892-000
Required: 1
RUBBER, STOPPER (NOT AVAILABLE)
Price unavailable
REEL, STARTER
004
Honda
REEL, STARTER28420-892-000
Required: 1
REEL, STARTER
Price unavailable
REEL, STARTER (NOT AVAILABLE)
004
Honda
REEL, STARTER (NOT AVAILABLE)28420-892-010
Required: 1
REEL, STARTER (NOT AVAILABLE)
Price unavailable
BOSS, REEL
005
Honda
BOSS, REEL28424-892-000
Required: 1
BOSS, REEL
Price unavailable
BOSS, REEL (NOT AVAILABLE)
005
Honda
BOSS, REEL (NOT AVAILABLE)28424-892-010
Required: 1
BOSS, REEL (NOT AVAILABLE)
Price unavailable
-15%
*28400-883-505
006
Honda
*28400-883-50528427-883-300
Required: 1
BUSH, REEL STARTER (NA USE ALT: 28400-883-505)
Cross Ship
Leaves in 2-5 days
$4.86
$4.13
You save $0.73
More details
PLATE A, FRICTION
007
Honda
PLATE A, FRICTION28431-892-000
Required: 1
PLATE A, FRICTION
Price unavailable
PLATE A, FRICTION (NOT AVAILABLE)
007
Honda
PLATE A, FRICTION (NOT AVAILABLE)28431-892-010
Required: 1
PLATE A, FRICTION (NOT AVAILABLE)
Price unavailable
-15%
PLATE B, FRICTION
008
Honda
PLATE B, FRICTION28432-892-010
Required: 1
PLATE B, FRICTION
Cross Ship
Leaves in 2-5 days
$2.48
$2.11
You save $0.37
More details
-15%
SPRING, FRICTION
009
Honda
SPRING, FRICTION28441-892-010
Required: 1
SPRING, FRICTION (NOT AVAILABLE)
Cross Ship
Leaves in 2-5 days
$4.30
$3.65
You save $0.65
More details
SPRING, RETURN (NOT AVAILABLE)
010
Honda
SPRING, RETURN (NOT AVAILABLE)28442-892-000
Required: 1
SPRING, RETURN (NOT AVAILABLE)
Price unavailable
GRIP, STARTER (NOT AVAILABLE)
011
Honda
GRIP, STARTER (NOT AVAILABLE)28461-892-000
Required: 1
GRIP, STARTER (NOT AVAILABLE)
Price unavailable
ROPE, STARTER (#4X91")
012
Honda
ROPE, STARTER (#4X91")28462-892-000
Required: 1
ROPE, STARTER (#4X91")
Price unavailable
SUPPORT, GRIP (NOT AVAILABLE)
013
Honda
SUPPORT, GRIP (NOT AVAILABLE)28463-892-000
Required: 1
SUPPORT, GRIP (NOT AVAILABLE)
Price unavailable
COVER, GRIP (NOT AVAILABLE)
014
Honda
COVER, GRIP (NOT AVAILABLE)28464-892-000
Required: 1
COVER, GRIP (NOT AVAILABLE)
Price unavailable
PLATE, SIDE (NOT AVAILABLE)
015
Honda
PLATE, SIDE (NOT AVAILABLE)28467-892-000
Required: 1
PLATE, SIDE (NOT AVAILABLE)
Price unavailable
COVER, STARTER REEL (NOT AVAILABLE)
016
Honda
COVER, STARTER REEL (NOT AVAILABLE)28474-892-000
Required: 1
COVER, STARTER REEL (NOT AVAILABLE)
Price unavailable
ROLLER, GUIDE (NOT AVAILABLE)
017
Honda
ROLLER, GUIDE (NOT AVAILABLE)28476-888-300
Required: 1
ROLLER, GUIDE (NOT AVAILABLE)
Price unavailable
BUSH, ROLLER (NOT AVAILABLE)
018
Honda
BUSH, ROLLER (NOT AVAILABLE)28477-888-300
Required: 1
BUSH, ROLLER (NOT AVAILABLE)
Price unavailable
-15%
BOLT, FLANGE (5X10)
019
Honda
BOLT, FLANGE (5X10)90002-892-000
Required: 3
BOLT, FLANGE (5X10)
Cross Ship
Leaves in 2-5 days
$1.72
$1.46
You save $0.26
More details
-20%
NUT, SELF-LOCK (6MM)
020
Honda
NUT, SELF-LOCK (6MM)90114-SA0-000
Required: 1
NUT, SELF-LOCK (6MM)
Cross Ship
Leaves in 2-5 days
$3.90
$3.12
You save $0.78
More details
-15%
NUT, SELF-LOCK (6MM)
020
Honda
NUT, SELF-LOCK (6MM)90343-892-000
Required: 1
NUT, SELF-LOCK (6MM)
Cross Ship
Leaves in 2-5 days
$3.90
$3.32
You save $0.58
More details
-15%
BOLT, HEX. (5X10)
021
Honda
BOLT, HEX. (5X10)92101-05010-0A
Required: 1
BOLT, HEX. (5X10)
Cross Ship
Leaves in 2-5 days
$1.06
$0.90
You save $0.16
More details
-15%
PIN, SPRING (3X18)
022
Honda
PIN, SPRING (3X18)94305-30182
Required: 1
PIN, SPRING (3X18)
Cross Ship
Leaves in 2-5 days
$1.54
$1.31
You save $0.23
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
