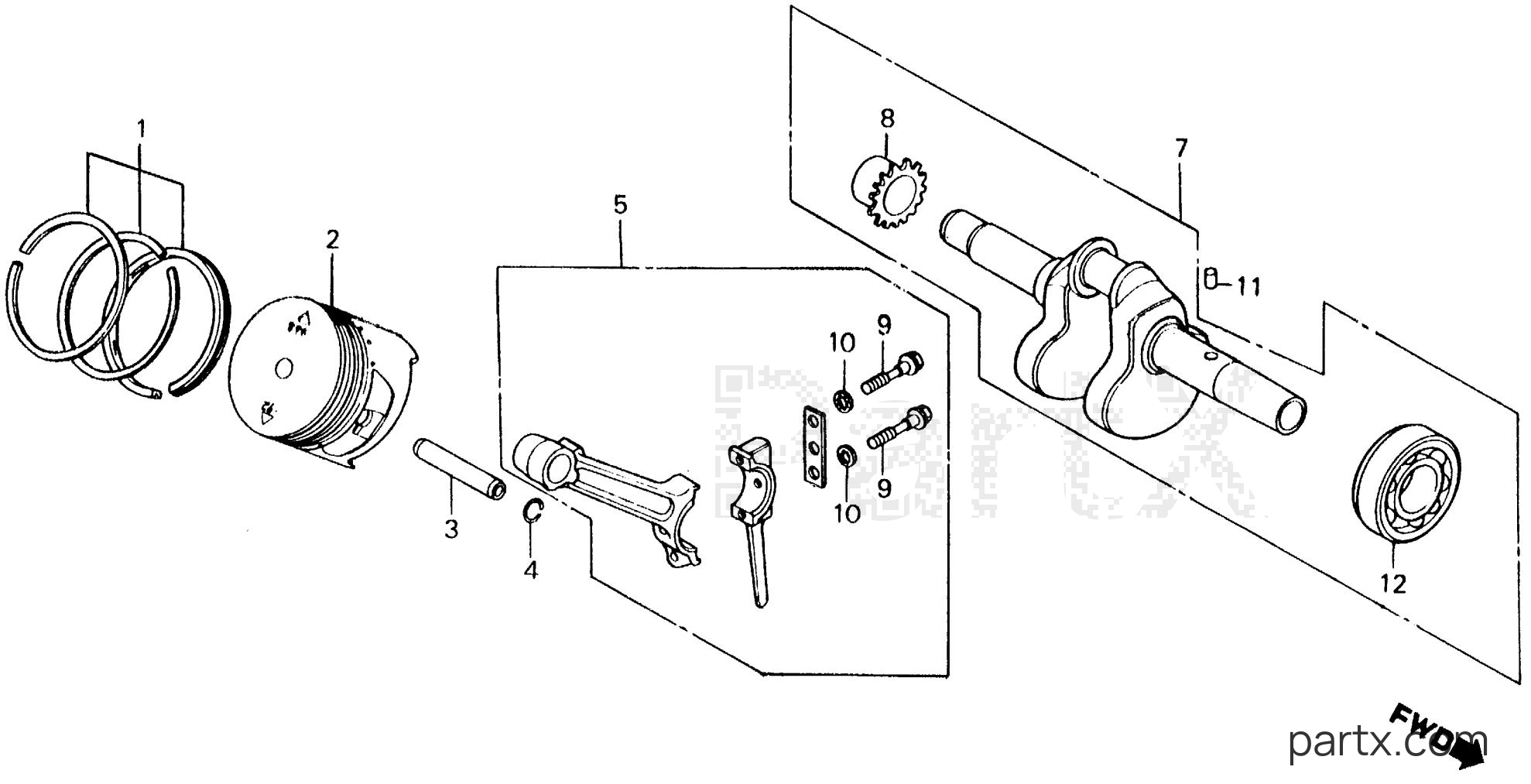

Honda EM500 A - CRANKSHAFT - PISTON
Change View:
RING SET, PISTON (STD)
001
Honda
RING SET, PISTON (STD)13010-892-003
Required: 1
RING SET, PISTON (STD)
Price unavailable
RING SET, PISTON (OVER SIZE) (0.25)
001
Honda
RING SET, PISTON (OVER SIZE) (0.25)13011-892-003
Required: 1
RING SET, PISTON (OVER SIZE) (0.25)
Price unavailable
RING SET, PISTON (OVER SIZE) (0.50)
001
Honda
RING SET, PISTON (OVER SIZE) (0.50)13012-892-003
Required: 1
RING SET, PISTON (OVER SIZE) (0.50)
Price unavailable
RING SET, PISTON (OVER SIZE) (0.75) (NOT AVAILABLE)
001
Honda
RING SET, PISTON (OVER SIZE) (0.75) (NOT AVAILABLE)13013-892-003
Required: 1
RING SET, PISTON (OVER SIZE) (0.75) (NOT AVAILABLE)
Price unavailable
-15%
RING SET (STD)
001
Honda
RING SET (STD)130A1-896-003
Required: 1
RING SET, PISTON (STD) (TEIKOKU) (NOT AVAILABLE)
Cross Ship
Leaves in 2-5 days
$36.18
$30.75
You save $5.43
More details
RING SET, PISTON (0.25) (TEIKOKU) (NOT AVAILABLE)
001
Honda
RING SET, PISTON (0.25) (TEIKOKU) (NOT AVAILABLE)130B1-896-003
Required: 1
RING SET, PISTON (0.25) (TEIKOKU) (NOT AVAILABLE)
Price unavailable
RING SET, PISTON (0.50) (TEIKOKU) (NOT AVAILABLE)
001
Honda
RING SET, PISTON (0.50) (TEIKOKU) (NOT AVAILABLE)130C1-896-003
Required: 1
RING SET, PISTON (0.50) (TEIKOKU) (NOT AVAILABLE)
Price unavailable
RING SET, PISTON (0.75) (TEIKOKU) (NOT AVAILABLE)
001
Honda
RING SET, PISTON (0.75) (TEIKOKU) (NOT AVAILABLE)130D1-896-003
Required: 1
RING SET, PISTON (0.75) (TEIKOKU) (NOT AVAILABLE)
Price unavailable
-15%
PISTON
002
Honda
PISTON13101-ZA8-000
Required: 1
PISTON
Cross Ship
Leaves in 2-5 days
$35.08
$29.82
You save $5.26
More details
PISTON (0.25)
002
Honda
PISTON (0.25)13102-892-000
Required: 1
PISTON (0.25)
Price unavailable
-15%
PISTON (0.50)
002
Honda
PISTON (0.50)13103-ZA8-000
Required: 1
PISTON (0.50)
Cross Ship
Leaves in 2-5 days
$46.60
$39.61
You save $6.99
More details
PISTON (0.75)
002
Honda
PISTON (0.75)13104-892-000
Required: 1
PISTON (0.75)
Price unavailable
-15%
PIN, PISTON
003
Honda
PIN, PISTON13111-892-000
Required: 1
PIN, PISTON
Cross Ship
Leaves in 2-5 days
$6.92
$5.88
You save $1.04
More details
-15%
CLIP (10MM)
004
Honda
CLIP (10MM)13115-147-000
Required: 2
CLIP, PISTON PIN (10MM)
Cross Ship
Leaves in 2-5 days
$2.70
$2.29
You save $0.41
More details
-15%
ROD, CONNECTING
005
Honda
ROD, CONNECTING13200-892-000
Required: 1
ROD ASSY., CONNECTING
Cross Ship
Leaves in 2-5 days
$76.64
$65.14
You save $11.50
More details
ROD ASSY., CONNECTING (UNDER SIZE 0.25) (NOT AVAILABLE)
005
Honda
ROD ASSY., CONNECTING (UNDER SIZE 0.25) (NOT AVAILABLE)13200-892-305
Required: 1
ROD ASSY., CONNECTING (UNDER SIZE 0.25) (NOT AVAILABLE)
Price unavailable
-15%
ROD ASSY. (STD)
005
Honda
ROD ASSY. (STD)13200-ZG0-000
Required: 1
ROD ASSY., CONNECTING (STD)
Cross Ship
Leaves in 2-5 days
$76.64
$65.14
You save $11.50
More details
-15%
ROD ASSY. (STD)
005
Honda
ROD ASSY. (STD)13200-ZG0-000
Required: 1
ROD ASSY., CONNECTING (STD)
Cross Ship
Leaves in 2-5 days
$76.64
$65.14
You save $11.50
More details
CRANKSHAFT (NOT AVAILABLE)
007
Honda
CRANKSHAFT (NOT AVAILABLE)13310-892-000
Required: 1
CRANKSHAFT (NOT AVAILABLE)
Price unavailable
SPROCKET, TIMING (NOT AVAILABLE)
008
Honda
SPROCKET, TIMING (NOT AVAILABLE)14311-892-300
Required: 1
SPROCKET, TIMING (NOT AVAILABLE)
Price unavailable
-15%
BOLT, CONNECTING ROD
009
Honda
BOLT, CONNECTING ROD90001-ZG0-000
Required: 2
BOLT, CONNECTING ROD
Cross Ship
Leaves in 2-5 days
$3.52
$2.99
You save $0.53
More details
WASHER, LOCK (NOT AVAILABLE)
010
Honda
WASHER, LOCK (NOT AVAILABLE)90456-892-000
Required: 2
WASHER, LOCK (NOT AVAILABLE)
Price unavailable
-15%
PIN, DOWEL (5X8)
011
Honda
PIN, DOWEL (5X8)94303-05080
Required: 1
PIN, DOWEL (5X8)
Cross Ship
Leaves in 2-5 days
$2.74
$2.33
You save $0.41
More details
-15%
BEARING (6203)
012
Honda
BEARING (6203)96100-62030-00
Required: 1
BEARING, RADIAL BALL (6203)
Cross Ship
Leaves in 2-5 days
$11.26
$9.57
You save $1.69
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
