All diagrams for this model

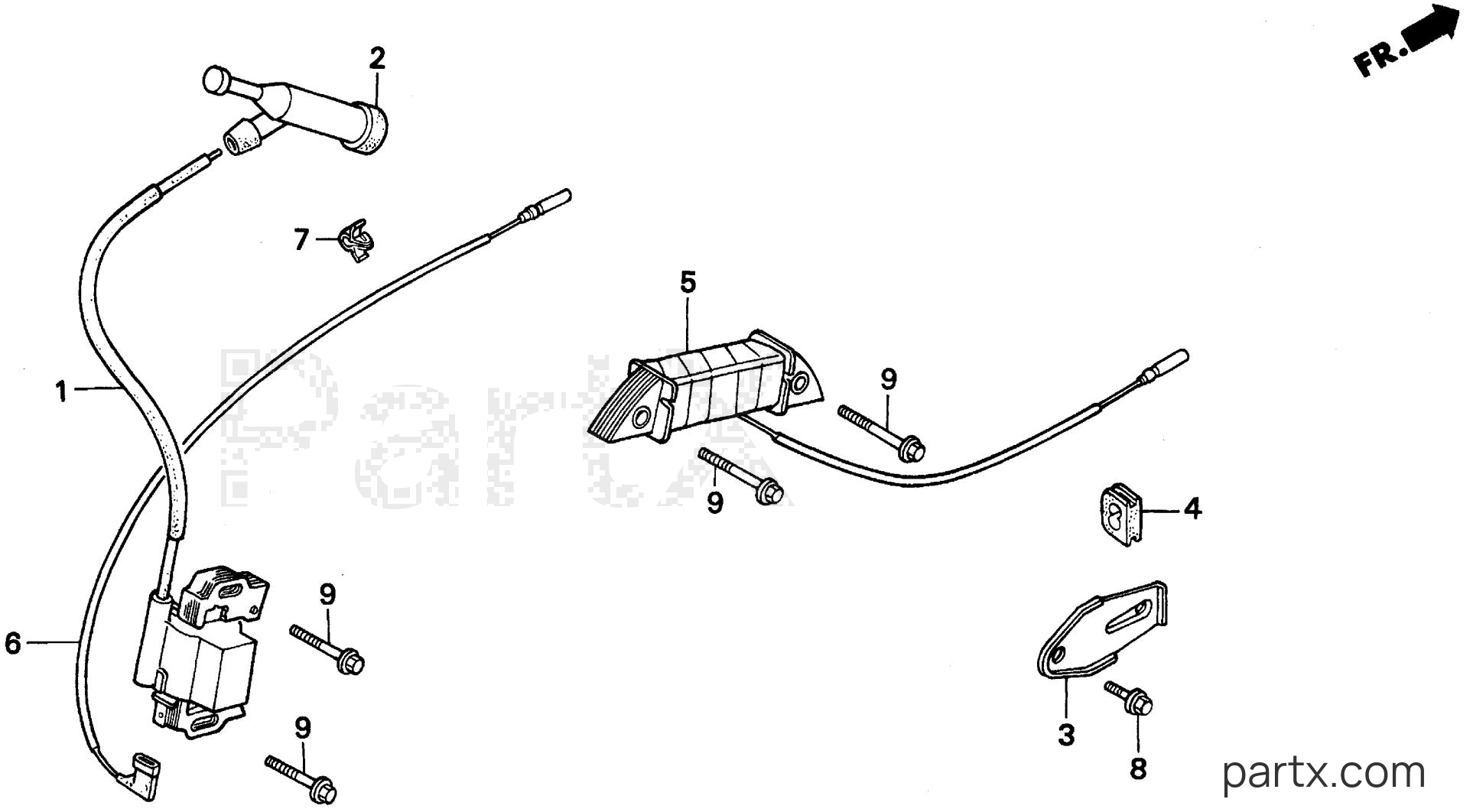

All Years Generator EM - EM3500X A IGNITION COIL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Honda EM3500X A - IGNITION COIL
Change View:
-15%
COIL ASSY., IGNITION
001
Honda
COIL ASSY., IGNITION30500-ZE2-003
Required: 1
COIL ASSY., IGNITION
Cross Ship
Leaves in 2-5 days
$137.84
$117.16
You save $20.68
More details
-15%
COIL ASSY., IGNITION
001
Honda
COIL ASSY., IGNITION30500-ZE2-023
Required: 1
COIL ASSY., IGNITION
Cross Ship
Leaves in 2-5 days
$55.44
$47.12
You save $8.32
More details
-15%
COIL ASSY., IGNITION
001
Honda
COIL ASSY., IGNITION30500-ZF6-W02
Required: 1
COIL ASSY., IGNITION
Cross Ship
Leaves in 2-5 days
$55.44
$47.12
You save $8.32
More details
-20%
CAP ASSY.
002
Honda
CAP ASSY.30700-ZE1-013
Required: 1
CAP ASSY., NOISE SUPPRESSOR (NICHIWA Y-EZ RTFM256)
Cross Ship
Leaves in 2-5 days
$23.12
$18.50
You save $4.62
More details
-15%
GROMMET, WIRE
004
Honda
GROMMET, WIRE31512-ZE2-000
Required: 1
GROMMET, WIRE
Cross Ship
Leaves in 2-5 days
$3.82
$3.25
You save $0.57
More details
WIRE, STOP SWITCH (430MM) (NOT AVAILABLE)
006
Honda
WIRE, STOP SWITCH (430MM) (NOT AVAILABLE)36101-ZE2-700
Required: 1
WIRE, STOP SWITCH (430MM) (NOT AVAILABLE)
Price unavailable
-15%
WIRE (430MM)
006
Honda
WIRE (430MM)36101-ZE2-701
Required: 1
WIRE, STOP SWITCH (430MM)
Cross Ship
Leaves in 2-5 days
$11.74
$9.98
You save $1.76
More details
-15%
HOLDER
007
Honda
HOLDER36103-ZE1-000
Required: 2
HOLDER, STOP SWITCH WIRE
Cross Ship
Leaves in 2-5 days
$2.40
$2.04
You save $0.36
More details
-15%
BOLT (6X28) (CT200)
009
Honda
BOLT (6X28) (CT200)90015-883-000
Required: 2
BOLT, FLANGE (6X28) (CT200)
Cross Ship
Leaves in 2-5 days
$3.52
$2.99
You save $0.53
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
