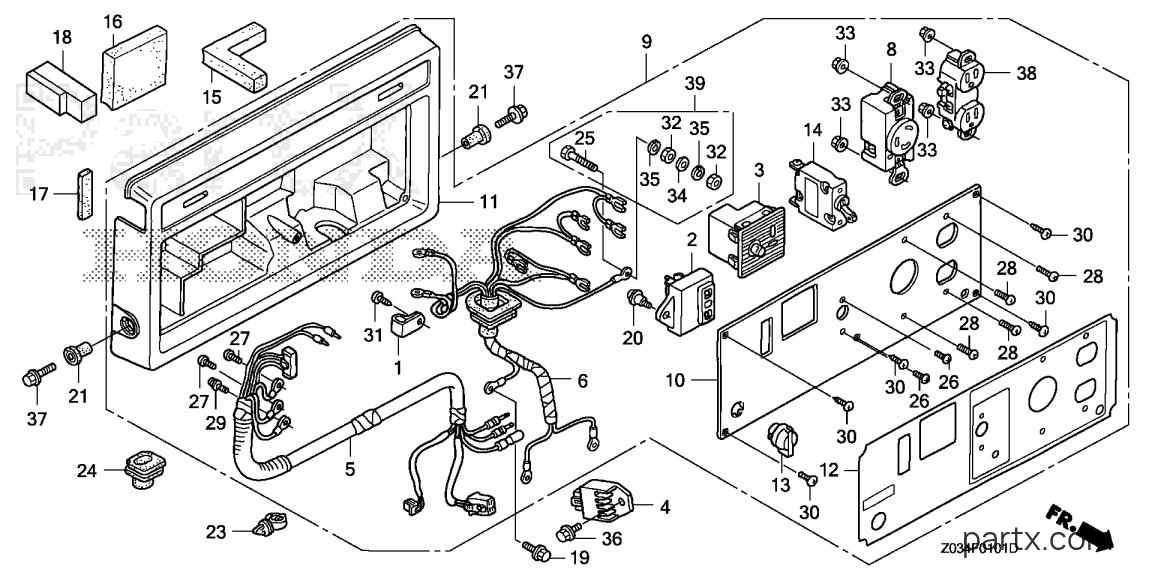

All Years Generator EM - EM2500C A CONTROL BOX (EM2500C-A) diagram
-15%
001
Honda
CLAMP C, CABLE30566-895-000
Required: 1
CLAMP C, CABLE
$3.84
You save $0.68
-20%
002
Honda
IGNITION UNIT30585-Z03-C02
Required: 1
IGNITION UNIT
$75.82
You save $18.95
003
Honda
RECEPTACLE, D.C. (NOT AVAILABLE)31460-ZT7-C41
Required: 1
RECEPTACLE, D.C. (NOT AVAILABLE)
Price unavailable
-15%
004
Honda
RECTIFIER ASSY.31710-ZS9-A02
Required: 1
RECTIFIER ASSY.
$20.43
You save $3.61
-15%
005
Honda
WIRE HARNESS, MAIN32100-Z03-C32
Required: 1
WIRE HARNESS ASSY., MAIN
$70.70
You save $12.48
-15%
006
Honda
SUB-WIRE HARNESS32105-Z03-C31
Required: 1
SUB-WIRE HARNESS ASSY.
$56.98
You save $10.06
-15%
008
Honda
RECPTL (20A/125V)32331-899-630
Required: 1
RECEPTACLE (20A/125V) (NOT AVAILABLE)
$30.36
You save $5.36
009
Honda
BOX ASSY., CONTROL (NOT AVAILABLE)32340-Z03-C31
Required: 1
BOX ASSY., CONTROL (NOT AVAILABLE)
Price unavailable
-15%
010
Honda
PANEL, CONTROL32345-Z03-C31
Required: 1
PANEL, CONTROL
$123.05
You save $21.71
-15%
011
Honda
CASE, CONTROL (C1)32356-Z03-S10
Required: 1
CASE, CONTROL (C1)
$64.55
You save $11.39
-15%
012
Honda
MARK, CONTROL PANEL32366-Z03-C30
Required: 1
MARK, CONTROL PANEL
$93.84
You save $16.56
-15%
013
Honda
SWITCH, ENGINE STOP35120-Z11-E01
Required: 1
SWITCH ASSY., ENGINE STOP (RED)
$15.84
You save $2.80
-15%
014
Honda
BREAKER (20A)38220-ZD8-F31
Required: 1
BREAKER, CIRCUIT (20A)
$58.36
You save $10.30
-15%
015
Honda
INSULATOR63268-Z03-000
Required: 1
INSULATOR (A)
$10.74
You save $1.90
-15%
016
Honda
INSULATOR63269-Z03-000
Required: 1
INSULATOR (B)
$14.06
You save $2.48
-15%
017
Honda
INSULATOR63270-Z03-000
Required: 1
INSULATOR (C)
$2.77
You save $0.49
-15%
018
Honda
INSULATOR63271-Z03-020
Required: 1
INSULATOR (D)
$4.23
You save $0.75
-15%
019
Honda
BOLT (6X12) (CT200)90013-883-000
Required: 1
BOLT, FLANGE (6X12) (CT200)
In stock
Only 3 remaining
$1.60
You save $0.28
-15%
020
Honda
SCREW, PAN (5X13)90108-MN0-000
Required: 1
SCREW, PAN (5X13)
$1.85
You save $0.33
-15%
021
Honda
NUT, WELL (6MM)90301-Z03-000
Required: 2
NUT, WELL (6MM)
$2.31
You save $0.41
-15%
023
Honda
CLIP, HARNESS90691-ZB7-003
Required: 1
CLIP, HARNESS
$3.47
You save $0.61
-15%
024
Honda
GROMMET, HARN91651-ZD8-K61
Required: 1
GROMMET, WIRE HARNESS
$4.93
You save $0.87
-15%
025
Honda
BOLT, HEX. (6X22)92101-06022-0A
Required: 1
BOLT, HEX. (6X22)
$1.60
You save $0.28
-15%
026
Honda
SCREW, PAN (3X5)93500-03005-1G
Required: 2
SCREW, PAN (3X5)
$0.76
You save $0.14
-15%
027
Honda
SCREW, PAN (3X8)93500-03008-0H
Required: 2
SCREW, PAN (3X8)
$0.76
You save $0.14
-15%
028
Honda
SCREW, PAN (4X10)93500-04010-0H
Required: 4
SCREW, PAN (4X10)
$0.94
You save $0.17
-15%
029
Honda
SCREW-WASHER (4X8)93893-04008-00
Required: 1
SCREW-WASHER (4X8)
$1.39
You save $0.25
-15%
030
Honda
SCREW, TAP (5X10)93911-25180
Required: 5
SCREW, TAPPING (5X10)
$0.58
You save $0.10
-15%
031
Honda
SCREW, TAP (5X12)93913-25210
Required: 1
SCREW, TAPPING (5X12)
$0.54
You save $0.10
-15%
032
Honda
NUT, HEX. (6MM)94001-06390-0S
Required: 2
NUT, HEX. (6MM)
$1.67
You save $0.29
-15%
033
Honda
NUT, FLANGE (4MM)94050-04080
Required: 4
NUT, FLANGE (4MM)
$1.29
You save $0.23
-20%
034
Honda
WASHER, PLAIN (6MM)94101-06800
Required: 1
WASHER, PLAIN (6MM)
$0.64
You save $0.16
-15%
035
Honda
WASHER, SPRING (6MM)94111-06800
Required: 2
WASHER, SPRING (6MM)
$1.17
You save $0.21
-20%
036
Honda
BOLT, FLANGE (6X12)95701-06012-00
Required: 1
BOLT, FLANGE (6X12)
In stock
Only 1 remaining
$1.58
You save $0.40
-20%
037
Honda
BOLT, FLANGE (6X20)95701-06020-00
Required: 2
BOLT, FLANGE (6X20)
$1.73
You save $0.43
-15%
038
Honda
RECPTL (20A/125V)32330-Z03-C31
Required: 1
RECEPTACLE (20A/125V)
$42.52
You save $7.50
-15%
039
Honda
TERMINAL SET, GROUND31428-Z03-C00
Required: 1
TERMINAL SET, GROUND
$4.59
You save $0.81
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
