All Years Generator EM - EM1600 A ROTOR - STATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

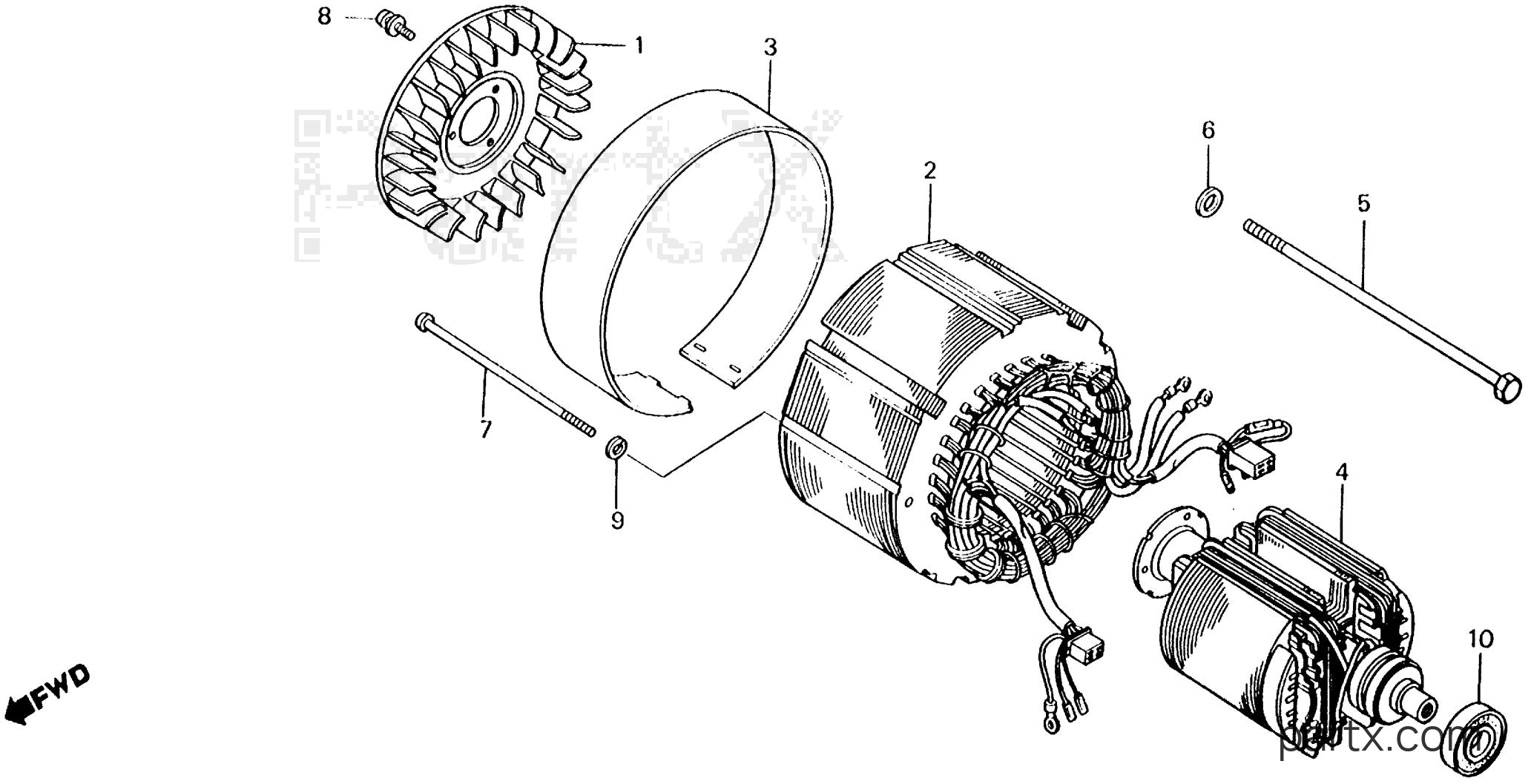

Honda EM1600 A - ROTOR - STATOR
Change View:
-15%
FAN,GEN COOLING
001
Honda
FAN,GEN COOLING31112-ZC5-810
Required: 1
FAN,GEN COOLING
Cross Ship
Leaves in 2-5 days
$6.16
$5.24
You save $0.92
More details
STATOR ASSY. (NOT AVAILABLE)
002
Honda
STATOR ASSY. (NOT AVAILABLE)31121-897-632
Required: 1
STATOR ASSY. (NOT AVAILABLE)
Price unavailable
COVER, STATOR *R8*(BRIGHT RED) (NOT AVAILABLE)
003
Honda
COVER, STATOR *R8*(BRIGHT RED) (NOT AVAILABLE)31127-897-003H
Required: 1
COVER, STATOR *R8*(BRIGHT RED) (NOT AVAILABLE)
Price unavailable
ROTOR (NOT AVAILABLE)
004
Honda
ROTOR (NOT AVAILABLE)31130-897-003
Required: 1
ROTOR (NOT AVAILABLE)
Price unavailable
BOLT, HEX. (8X178) (NOT AVAILABLE)
005
Honda
BOLT, HEX. (8X178) (NOT AVAILABLE)90101-897-000
Required: 1
BOLT, HEX. (8X178) (NOT AVAILABLE)
Price unavailable
-15%
WASHER (23X8.3X3.2)
006
Honda
WASHER (23X8.3X3.2)90430-657-000
Required: 1
WASHER (23X8.3X3.2)
Cross Ship
Leaves in 2-5 days
$8.56
$7.28
You save $1.28
More details
SCREW, PAN (5X120) (NOT AVAILABLE)
007
Honda
SCREW, PAN (5X120) (NOT AVAILABLE)93500-05120-1A
Required: 2
SCREW, PAN (5X120) (NOT AVAILABLE)
Price unavailable
-15%
SCREW-WASHER (5X14)
008
Honda
SCREW-WASHER (5X14)93893-05014-08
Required: 3
SCREW-WASHER (5X14)
Cross Ship
Leaves in 2-5 days
$1.64
$1.39
You save $0.25
More details
-15%
WASHER, SPRING (5MM)
009
Honda
WASHER, SPRING (5MM)94111-05800
Required: 2
WASHER, SPRING (5MM)
Cross Ship
Leaves in 2-5 days
$1.38
$1.17
You save $0.21
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
