All diagrams for this model

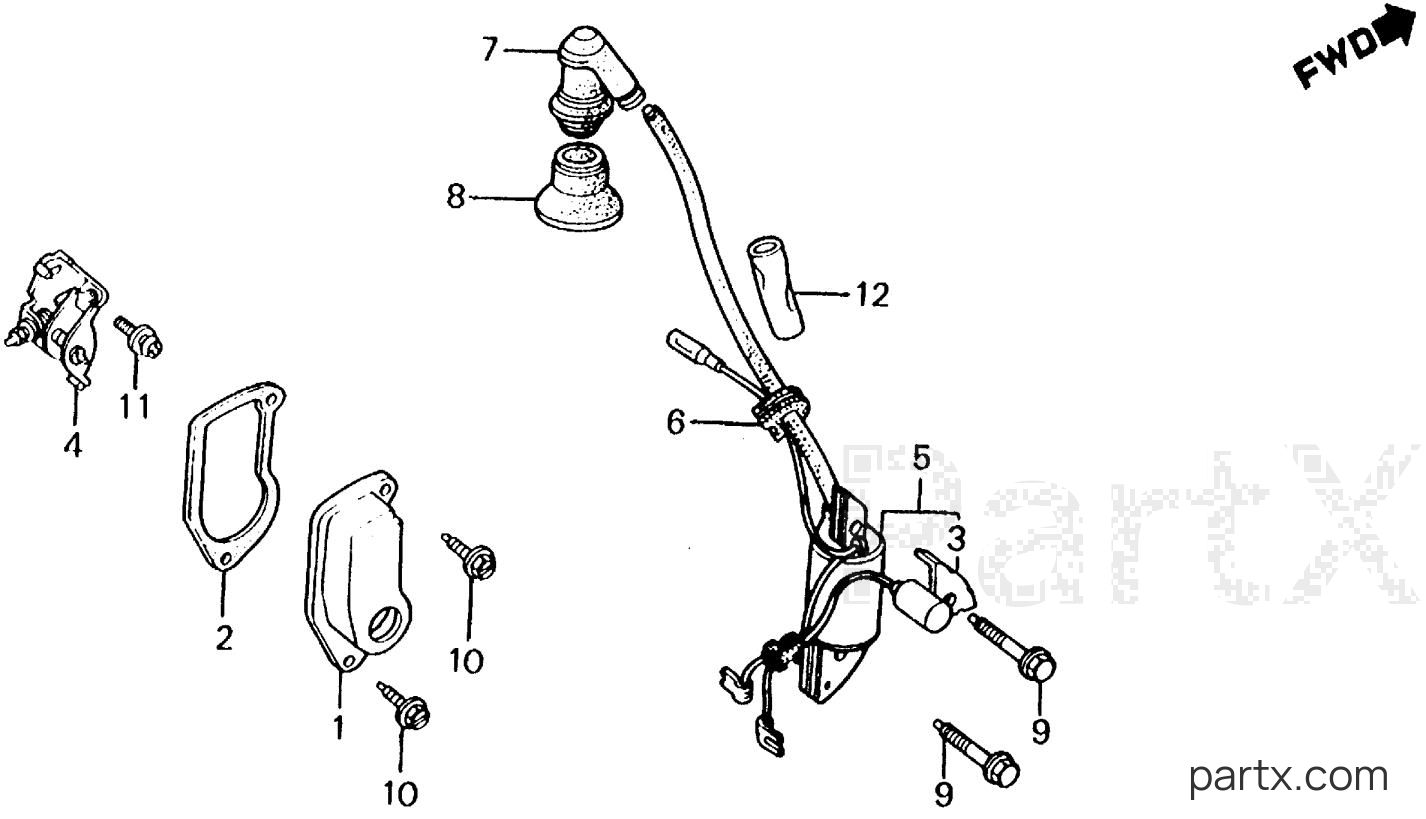

All Years Generator EM - EM1600 A POINTS - IGNITION COIL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Honda EM1600 A - POINTS - IGNITION COIL
Change View:
COVER, BREAKER (NOT AVAILABLE)
001
Honda
COVER, BREAKER (NOT AVAILABLE)30211-883-000
Required: 1
COVER, BREAKER (NOT AVAILABLE)
Price unavailable
GASKET, BREAKER COVER (NOT AVAILABLE)
002
Honda
GASKET, BREAKER COVER (NOT AVAILABLE)30215-883-000
Required: 1
GASKET, BREAKER COVER (NOT AVAILABLE)
Price unavailable
-15%
CONDENSER
003
Honda
CONDENSER30251-883-003
Required: 1
CONDENSER
Cross Ship
Leaves in 2-5 days
$21.48
$18.26
You save $3.22
More details
-15%
POINTS ASSY.
004
Honda
POINTS ASSY.30280-883-005
Required: 1
POINTS ASSY.
Cross Ship
Leaves in 2-5 days
$33.72
$28.66
You save $5.06
More details
COIL ASSY., IGNITION (NOT AVAILABLE)
005
Honda
COIL ASSY., IGNITION (NOT AVAILABLE)30560-898-600
Required: 1
COIL ASSY., IGNITION (NOT AVAILABLE)
Price unavailable
GROMMET, WIRE (NOT AVAILABLE)
006
Honda
GROMMET, WIRE (NOT AVAILABLE)30563-898-600
Required: 1
GROMMET, WIRE (NOT AVAILABLE)
Price unavailable
-15%
CAP ASSY.
007
Honda
CAP ASSY.30700-898-013
Required: 1
CAP ASSY., NOISE SUPPRESSOR
Cross Ship
Leaves in 2-5 days
$17.78
$15.11
You save $2.67
More details
-15%
SEAL, IGNITION
008
Honda
SEAL, IGNITION30701-898-003
Required: 1
SEAL, IGNITION
Cross Ship
Leaves in 2-5 days
$11.54
$9.81
You save $1.73
More details
-15%
BOLT (6X32) (CT200)
009
Honda
BOLT (6X32) (CT200)90017-883-000
Required: 2
BOLT, FLANGE (6X32) (CT200)
Cross Ship
Leaves in 2-5 days
$3.26
$2.77
You save $0.49
More details
-15%
BOLT (5X10) (CT200)
010
Honda
BOLT (5X10) (CT200)90019-883-000
Required: 2
BOLT, FLANGE (5X10) (CT200)
Cross Ship
Leaves in 2-5 days
$3.02
$2.57
You save $0.45
More details
-15%
SCREW-WASHER (5X12)
011
Honda
SCREW-WASHER (5X12)90051-883-000
Required: 1
SCREW-WASHER (5X12)
Cross Ship
Leaves in 2-5 days
$2.04
$1.73
You save $0.31
More details
TUBE, VINYL (12X16X50)
012
Honda
TUBE, VINYL (12X16X50)95003-40005-20
Required: 1
TUBE, VINYL (12X16X50)
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
