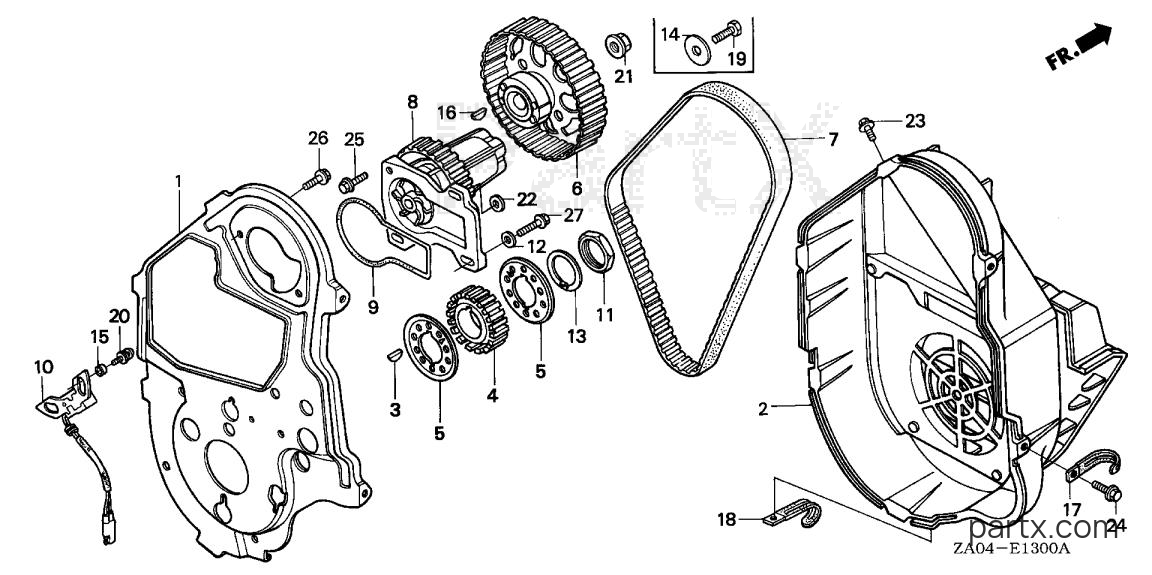

All Years Generator EX - EX5500K1 A/B TIMING BELT diagram
001
Honda
COVER B, TIMING BELT (NOT AVAILABLE)11810-ZA0-601
Required: 1
COVER B, TIMING BELT (NOT AVAILABLE)
Price unavailable
002
Honda
COVER A, TIMING BELT11840-ZA0-000
Required: 1
COVER A, TIMING BELT
Price unavailable
-15%
003
Honda
KEY (25X18)13331-357-000
Required: 1
KEY, SPECIAL WOODRUFF (25X18)
$4.11
You save $0.73
-15%
004
Honda
PULLEY, TIMING14311-ZA0-005
Required: 1
PULLEY, TIMING
$36.52
You save $6.44
-15%
005
Honda
FLANGE14312-ZA0-000
Required: 2
FLANGE, TIMING PULLEY (NOT AVAILABLE)
$5.13
You save $0.91
006
Honda
CAMSHAFT14101-ZA0-000
Required: 1
CAMSHAFT
Price unavailable
006
Honda
PULLEY, CAMSHAFT14320-ZA0-000
Required: 1
PULLEY, CAMSHAFT
Price unavailable
-20%
007
Honda
BELT, TIMING14400-ZA0-003
Required: 1
BELT, TIMING
In stock
Only 1 remaining
$49.97
You save $12.49
-15%
$181.95
You save $32.25
-15%
009
Honda
O-RING, WATER PUMP19222-ZA0-004
Required: 1
O-RING, WATER PUMP
In stock
Only 1 remaining
$4.83
You save $0.85
010
Honda
COIL ASSY., PULSER (NOT AVAILABLE)30400-882-601
Required: 1
COIL ASSY., PULSER (NOT AVAILABLE)
Price unavailable
-15%
011
Honda
NUT, LOCK (30MM)90202-ZA0-000
Required: 1
NUT, LOCK (30MM)
$7.96
You save $1.40
-15%
012
Honda
WASHER (6.5X15)90401-ZA0-000
Required: 2
WASHER, PLAIN (6.5X15)
$1.12
You save $0.20
-15%
013
Honda
WASHER, LOCK (30MM)90451-ZA0-000
Required: 1
WASHER, LOCK (30MM) (NOT AVAILABLE)
$4.39
You save $0.77
014
Honda
WASHER, WHEEL (6MM) (NOT AVAILABLE)90563-706-000
Required: 1
WASHER, WHEEL (6MM) (NOT AVAILABLE)
Price unavailable
-15%
015
Honda
PIN, DOWEL (7X4.5)90705-882-600
Required: 2
PIN, DOWEL (7X4.5)
$2.06
You save $0.36
016
Honda
KEY, CAM PULLEY (12X16X3)90741-921-000
Required: 1
KEY, CAM PULLEY (12X16X3)
Price unavailable
-50%
019
Honda
BOLT, HEX. (6X16)92101-06016-0A
Required: 1
BOLT, HEX. (6X16)
In stock
Only 5 remaining
$0.89
You save $0.89
-15%
020
Honda
SCREW-WASHER (5X12)93893-05012-08
Required: 2
SCREW-WASHER (5X12)
$1.39
You save $0.25
-20%
022
Honda
WASHER, PLAIN (6MM)94101-06800
Required: 1
WASHER, PLAIN (6MM)
$0.64
You save $0.16
-15%
023
Honda
BOLT, FLANGE (6X10)95700-06010-08
Required: 5
BOLT, FLANGE (6X10)
$1.67
You save $0.29
-20%
023
Honda
BOLT, FLANGE (6X10)95701-06010-08
Required: 5
BOLT, FLANGE (6X10)
$1.57
You save $0.39
-15%
024
Honda
BOLT, FLANGE (6X12)95701-06012-08
Required: 1
BOLT, FLANGE (6X12)
$1.73
You save $0.31
-15%
025
Honda
BOLT, FLANGE (6X22)95701-06022-08
Required: 1
BOLT, FLANGE (6X22)
$1.87
You save $0.33
-15%
026
Honda
BOLT, FLANGE (6X12)96001-06012-00
Required: 3
BOLT, FLANGE (6X12)
$1.87
You save $0.33
-15%
027
Honda
BOLT, FLANGE (6X22)96001-06022-00
Required: 3
BOLT, FLANGE (6X22)
$1.29
You save $0.23
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
