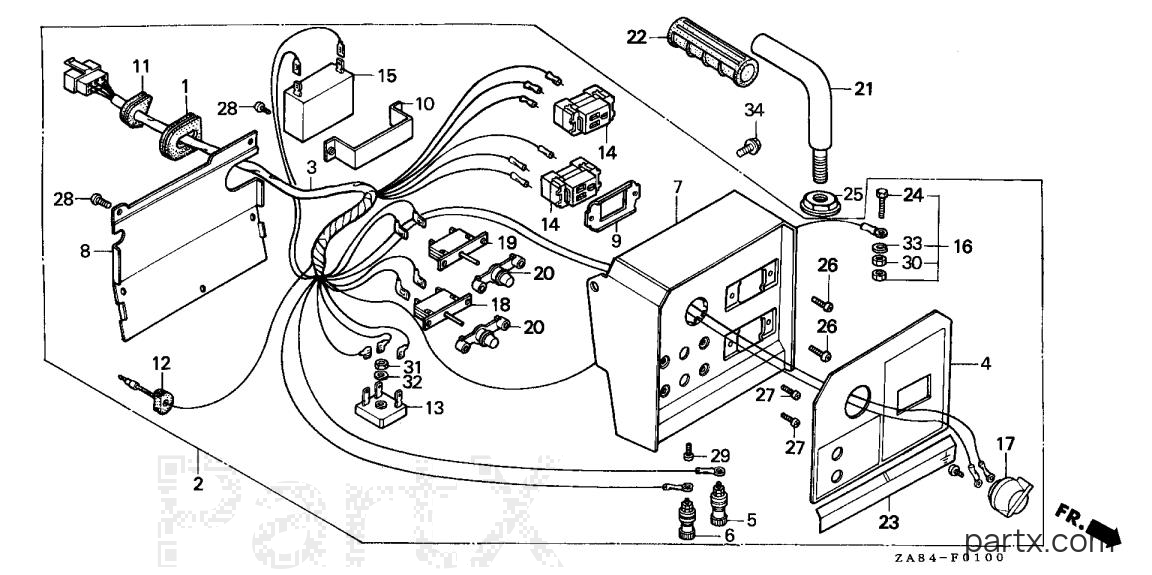

All Years Generator EG - EG650 A2 EG650 CONTROL BOX diagram
-15%
001
Honda
GROMMET, CORD19905-ZA8-701
Required: 1
GROMMET, CORD
$4.06
You save $0.72
002
Honda
BOX ASSY., CONTROL *R8*(BRIGHT RED) (NOT AVAILABLE)31400-ZA8-733ZA
Required: 1
BOX ASSY., CONTROL *R8*(BRIGHT RED) (NOT AVAILABLE)
Price unavailable
003
Honda
WIRE HARNESS ASSY. (NOT AVAILABLE)31404-ZA8-731
Required: 1
WIRE HARNESS ASSY. (NOT AVAILABLE)
Price unavailable
004
Honda
MARK, SWITCH PANEL (NOT AVAILABLE)31406-ZA8-730
Required: 1
MARK, SWITCH PANEL (NOT AVAILABLE)
Price unavailable
-15%
005
Honda
TERMINAL31408-880-000
Required: 1
TERMINAL, D.C. OUTPUT (+)
$38.74
You save $6.84
-15%
006
Honda
TERMINAL31409-880-000
Required: 1
TERMINAL, D.C. OUTPUT (-)
$38.74
You save $6.84
007
Honda
BOX, CONTROL *R8*(BRIGHT RED) (NOT AVAILABLE)31420-ZA8-732ZA
Required: 1
BOX, CONTROL *R8*(BRIGHT RED) (NOT AVAILABLE)
Price unavailable
008
Honda
COVER, CONTROL BOX (NOT AVAILABLE)31425-ZA8-701
Required: 1
COVER, CONTROL BOX (NOT AVAILABLE)
Price unavailable
-15%
009
Honda
HOLDER, RECEPTACLE31426-ZA8-701
Required: 2
HOLDER, RECEPTACLE
$6.26
You save $1.10
-15%
010
Honda
HOLDER, CONDENSER31427-ZA8-701
Required: 1
HOLDER, CONDENSER
$5.88
You save $1.04
011
Honda
GROMMET (NOT AVAILABLE)31481-ZA8-701
Required: 1
GROMMET (NOT AVAILABLE)
Price unavailable
012
Honda
GROMMET, SWITCH WIRE (NOT AVAILABLE)31486-898-700
Required: 1
GROMMET, SWITCH WIRE (NOT AVAILABLE)
Price unavailable
013
Honda
DIODE, D.C. (NOT AVAILABLE)31720-ZA8-701
Required: 1
DIODE, D.C. (NOT AVAILABLE)
Price unavailable
014
Honda
RECEPTACLE (15A/125V) (NOT AVAILABLE)32333-ZA8-000
Required: 2
RECEPTACLE (15A/125V) (NOT AVAILABLE)
Price unavailable
015
Honda
CONDENSER (NOT AVAILABLE)32380-ZA8-701
Required: 1
CONDENSER (NOT AVAILABLE)
Price unavailable
016
Honda
TERMINAL SET, GROUND (NOT AVAILABLE)32510-ZA8-701
Required: 1
TERMINAL SET, GROUND (NOT AVAILABLE)
Price unavailable
-15%
017
Honda
SWITCH, ENGINE STOP35120-Z11-E01
Required: 1
SWITCH ASSY., ENGINE STOP (RED)
$15.84
You save $2.80
-15%
018
Honda
PROTECTOR, CIRCUIT38240-898-000
Required: 1
PROTECTOR, CIRCUIT (D.C.)
$30.58
You save $5.40
-15%
019
Honda
PROTR, CIRCUIT (5A)38241-ZA8-730
Required: 1
PROTECTOR, CIRCUIT (5A)
$28.68
You save $5.06
-15%
020
Honda
LENS, PROTECTOR38250-ZA8-701
Required: 2
LENS ASSY., PROTECTOR
$16.47
You save $2.91
-15%
021
Honda
HANDLE, CARRYING68110-ZA8-701
Required: 1
HANDLE, CARRYING
$23.02
You save $4.06
022
Honda
GRIP, HANDLE (NOT AVAILABLE)78207-ZA8-700
Required: 1
GRIP, HANDLE (NOT AVAILABLE)
Price unavailable
023
Honda
MARK, CONTROL BOX (NOT AVAILABLE)87206-ZA8-730
Required: 1
MARK, CONTROL BOX (NOT AVAILABLE)
Price unavailable
-15%
024
Honda
BOLT, HEX. (6X22)90011-ZB4-000
Required: 1
BOLT, HEX. (6X22)
$3.91
You save $0.69
-15%
025
Honda
NUT, FLANGE (14MM)90201-GC4-000
Required: 1
NUT, FLANGE (14MM)
$5.10
You save $0.90
-15%
026
Honda
SCREW, PAN (3X8)93500-03008-0H
Required: 4
SCREW, PAN (3X8)
$0.76
You save $0.14
-15%
027
Honda
SCREW, PAN (3X12)93500-03012-0H
Required: 4
SCREW, PAN (3X12)
$0.85
You save $0.15
-50%
028
Honda
SCREW, PAN (4X8)93500-04008-0H
Required: 5
SCREW, PAN (4X8)
In stock
Only 1 remaining
$0.55
You save $0.55
-15%
029
Honda
SCREW, PAN (4X16)93500-04016-0H
Required: 1
SCREW, PAN (4X16)
$0.85
You save $0.15
030
Honda
NUT, HEX. (6MM)94001-06000-0S
Required: 1
NUT, HEX. (6MM)
Price unavailable
-15%
030
Honda
NUT, HEX. (6MM)94001-06200-0S
Required: 1
NUT, HEX. (6MM)
$1.36
You save $0.24
031
Honda
NUT, HEX. (4MM) (NOT AVAILABLE)94002-04080-0S
Required: 1
NUT, HEX. (4MM) (NOT AVAILABLE)
Price unavailable
-15%
032
Honda
WASHER, PLAIN (4MM)94101-04800
Required: 1
WASHER, PLAIN (4MM)
$1.02
You save $0.18
-15%
033
Honda
WASHER, SPRING (6MM)94111-06800
Required: 1
WASHER, SPRING (6MM)
$1.17
You save $0.21
-20%
034
Honda
BOLT, FLANGE (6X10)95701-06010-00
Required: 2
BOLT, FLANGE (6X10)
$1.23
You save $0.31
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
