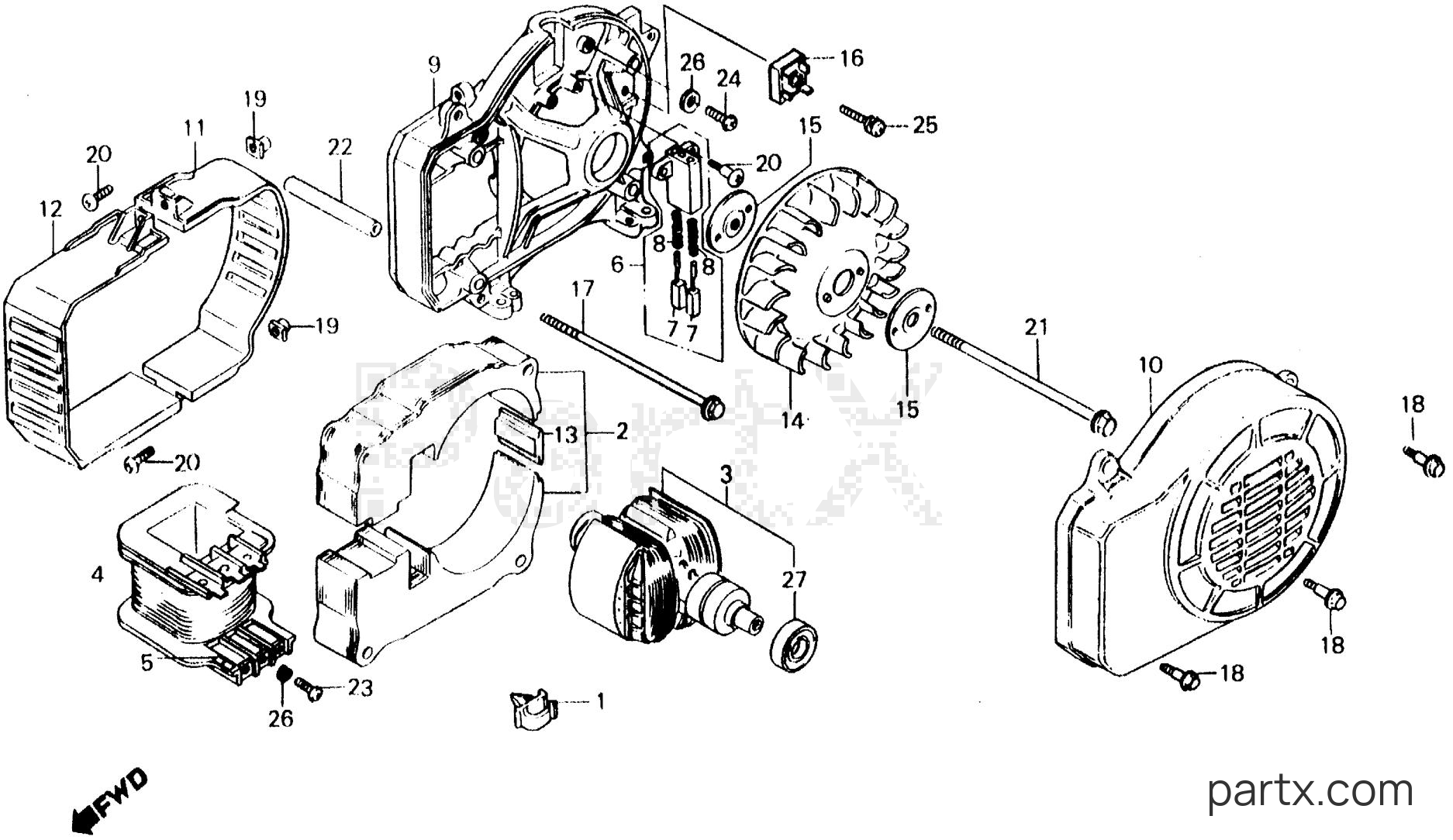

All Years Generator EG - EG2200Z A ROTOR - STATOR diagram
001
Honda
CLAMP, D.C. CABLE (NOT AVAILABLE)30566-ZA5-000
Required: 1
CLAMP, D.C. CABLE (NOT AVAILABLE)
Price unavailable
002
Honda
CORE SET, STATOR (NOT AVAILABLE)311A3-ZA6-000
Required: 1
CORE SET, STATOR (NOT AVAILABLE)
Price unavailable
003
Honda
ROTOR (NOT AVAILABLE)31110-ZA6-000
Required: 1
ROTOR (NOT AVAILABLE)
Price unavailable
004
Honda
BOBBIN, STATOR COIL (NOT AVAILABLE)31150-ZA6-830
Required: 1
BOBBIN, STATOR COIL (NOT AVAILABLE)
Price unavailable
-15%
005
Honda
MARK, WIRE COLOR31154-ZA5-830
Required: 1
MARK, WIRE COLOR
$1.00
You save $0.18
-15%
006
Honda
HOLDER ASSY., BRUSH31160-ZA5-000
Required: 1
HOLDER ASSY., BRUSH
$69.09
You save $12.19
007
Honda
BRUSH (NOT AVAILABLE)31162-ZA5-000
Required: 2
BRUSH (NOT AVAILABLE)
Price unavailable
-15%
008
Honda
SPRING, BRUSH31163-ZA5-300
Required: 2
SPRING, BRUSH
$1.85
You save $0.33
009
Honda
HOUSING, RR. (NOT AVAILABLE)31170-ZA5-000
Required: 1
HOUSING, RR. (NOT AVAILABLE)
Price unavailable
010
Honda
COVER, GENERATOR END (NOT AVAILABLE)31180-ZA5-000
Required: 1
COVER, GENERATOR END (NOT AVAILABLE)
Price unavailable
011
Honda
COVER, R. STATOR (NOT AVAILABLE)31181-ZA6-000
Required: 1
COVER, R. STATOR (NOT AVAILABLE)
Price unavailable
012
Honda
COVER, L. STATOR (NOT AVAILABLE)31182-ZA6-000
Required: 1
COVER, L. STATOR (NOT AVAILABLE)
Price unavailable
013
Honda
STIFFENER, STATOR (NOT AVAILABLE)31184-ZA6-000
Required: 1
STIFFENER, STATOR (NOT AVAILABLE)
Price unavailable
014
Honda
FAN, COOLING (NOT AVAILABLE)31190-ZA5-000
Required: 1
FAN, COOLING (NOT AVAILABLE)
Price unavailable
-15%
$7.04
You save $1.24
-15%
016
Honda
DIODE, D.C.317W1-ZA5-004
Required: 1
DIODE, D.C.
$49.52
You save $8.74
017
Honda
BOLT, FLANGE (6X144) (NOT AVAILABLE)90013-ZA6-000
Required: 4
BOLT, FLANGE (6X144) (NOT AVAILABLE)
Price unavailable
-15%
018
Honda
BOLT90015-ZA5-000
Required: 4
BOLT, GENERATOR END COVER
$3.33
You save $0.59
-15%
019
Honda
NUT, SPECIAL (5MM)90016-ZA5-000
Required: 2
NUT, SPECIAL (5MM)
$4.33
You save $0.77
-15%
020
Honda
BOLT90018-ZA5-000
Required: 4
BOLT, STATOR COVER SETTING
$1.90
You save $0.34
021
Honda
BOLT, FLANGE (8X180) (NOT AVAILABLE)90021-ZA6-000
Required: 1
BOLT, FLANGE (8X180) (NOT AVAILABLE)
Price unavailable
022
Honda
PIN, DOWEL (11X126) (NOT AVAILABLE)90701-ZA6-000
Required: 4
PIN, DOWEL (11X126) (NOT AVAILABLE)
Price unavailable
-15%
023
Honda
SCREW, PAN (5X6)93500-05006-3J
Required: 3
SCREW, PAN (5X6) (NOT AVAILABLE)
$1.36
You save $0.24
-15%
024
Honda
SCREW, PAN (5X12)93500-05012-3J
Required: 1
SCREW, PAN (5X12)
$1.05
You save $0.19
025
Honda
SCREW-WASHER (4X18) (NOT AVAILABLE)93891-04018-08
Required: 1
SCREW-WASHER (4X18) (NOT AVAILABLE)
Price unavailable
-15%
026
Honda
WASHER, SPRING (5MM)94111-05800
Required: 4
WASHER, SPRING (5MM)
$1.17
You save $0.21
-20%
027
Honda
BEARING (6203UU)96150-62030-10
Required: 1
BEARING, RADIAL BALL (6203UU)
In stock
Only 2 remaining
$17.02
You save $4.26
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
