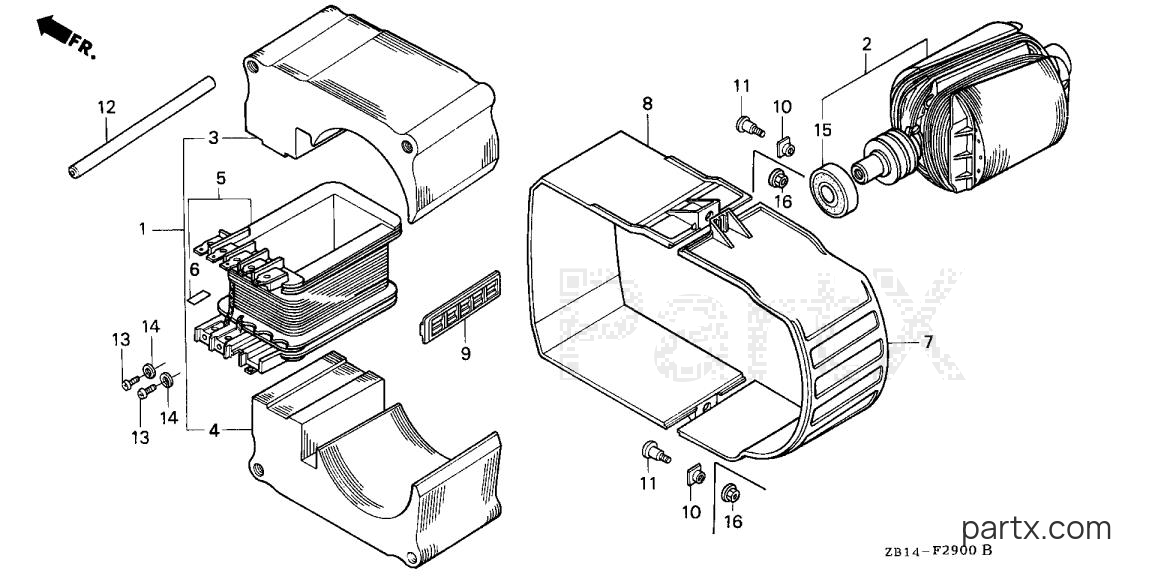

All Years Generator EG - EG1400XK1 A/A ROTOR - STATOR diagram
001
Honda
CORE SET, STATOR (NOT AVAILABLE)311A3-ZA4-000
Required: 1
CORE SET, STATOR (NOT AVAILABLE)
Price unavailable
002
Honda
ROTOR31110-ZB1-000
Required: 1
ROTOR
Price unavailable
-15%
$461.18
You save $81.38
005
Honda
BOBBIN, STATOR COIL31150-ZB1-630
Required: 1
BOBBIN, STATOR COIL
Price unavailable
-15%
005
Honda
BOBBIN, STATOR COIL31150-ZB1-631
Required: 1
BOBBIN, STATOR COIL (NOT AVAILABLE)
$225.91
You save $39.87
-15%
006
Honda
MARK, WIRE COLOR31154-ZA5-830
Required: 1
MARK, WIRE COLOR
$1.00
You save $0.18
007
Honda
COVER, R. STATOR (NOT AVAILABLE)31181-ZA4-000
Required: 1
COVER, R. STATOR (NOT AVAILABLE)
Price unavailable
008
Honda
COVER, L. STATOR31182-ZA4-000
Required: 1
COVER, L. STATOR
Price unavailable
-15%
009
Honda
STIFFENER, STATOR31184-ZA4-000
Required: 1
STIFFENER, STATOR
$12.36
You save $2.18
-15%
010
Honda
NUT, SPECIAL (5MM)90016-ZA5-000
Required: 2
NUT, SPECIAL (5MM)
$4.33
You save $0.77
-15%
011
Honda
BOLT90018-ZA5-000
Required: 2
BOLT, STATOR COVER SETTING
$1.90
You save $0.34
-15%
012
Honda
PIN, DOWEL (11X100)90701-ZA4-000
Required: 4
PIN, DOWEL (11X100)
$18.34
You save $3.24
-15%
013
Honda
SCREW, PAN (5X8)93500-05008-3J
Required: 2
SCREW, PAN (5X8)
$0.97
You save $0.17
-15%
014
Honda
WASHER, SPRING (5MM)94111-05800
Required: 2
WASHER, SPRING (5MM)
$1.17
You save $0.21
-15%
015
Honda
BEARING ASSY. (6203)91051-ZB3-003
Required: 1
BEARING ASSY. (6203)
$18.75
You save $3.31
-20%
015
Honda
BEARING (6203UU)96150-62030-10
Required: 1
BEARING, RADIAL BALL (6203UU)
In stock
Only 2 remaining
$17.02
You save $4.26
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
