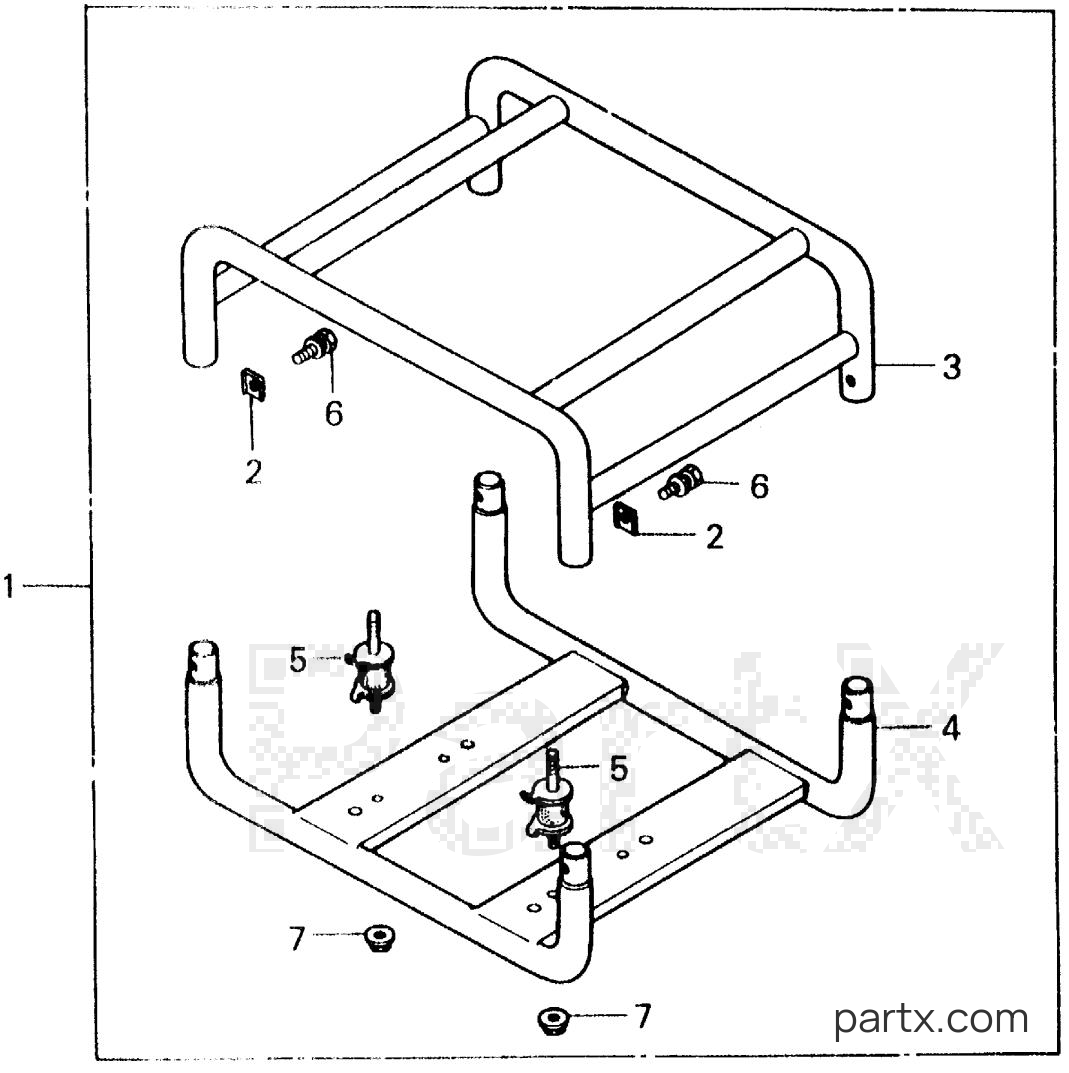

All Years Generator EG - EG1000 A FRAME KIT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Change View:

FRAME KIT *NH105*(MAT BLACK) (NOT AVAILABLE)

001

Honda

FRAME KIT *NH105*(MAT BLACK) (NOT AVAILABLE)06503-875-000ZA

Required: 1

FRAME KIT *NH105*(MAT BLACK) (NOT AVAILABLE)

Price unavailable

002

Honda

PLATE, JOINT (NOT AVAILABLE)50121-871-810

Required: 4

PLATE, JOINT (NOT AVAILABLE)

Price unavailable

FRAME (UPPER) *NH105*(MAT BLACK) (NOT AVAILABLE)

003

Honda

FRAME (UPPER) *NH105*(MAT BLACK) (NOT AVAILABLE)50140-875-000ZA

Required: 1

FRAME (UPPER) *NH105*(MAT BLACK) (NOT AVAILABLE)

Price unavailable

FRAME (LOWER) *NH105*(MAT BLACK) (NOT AVAILABLE)

004

Honda

FRAME (LOWER) *NH105*(MAT BLACK) (NOT AVAILABLE)50150-875-000ZA

Required: 1

FRAME (LOWER) *NH105*(MAT BLACK) (NOT AVAILABLE)

Price unavailable

-15%

005

Honda

RUB, ENGINE MOUNTING68311-YB3-K80

Required: 4

RUBBER, ENGINE MOUNTING

~~$7.26~~

$6.17

You save $1.09

More details

-15%

006

Honda

BOLT-WASHER (8X16)93412-08016-08

Required: 4

BOLT-WASHER (8X16)

~~$2.50~~

$2.13

You save $0.38

More details

-15%

006

Honda

BOLT-WASHER (8X16)93402-08016-08

Required: 4

BOLT-WASHER (8X16)

~~$2.50~~

$2.13

You save $0.38

More details

-20%

007

Honda

NUT, FLANGE (8MM)94050-08000

Required: 4

NUT, FLANGE (8MM)

In stock

Only 5 remaining

~~$1.18~~

$0.94

You save $0.24

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
