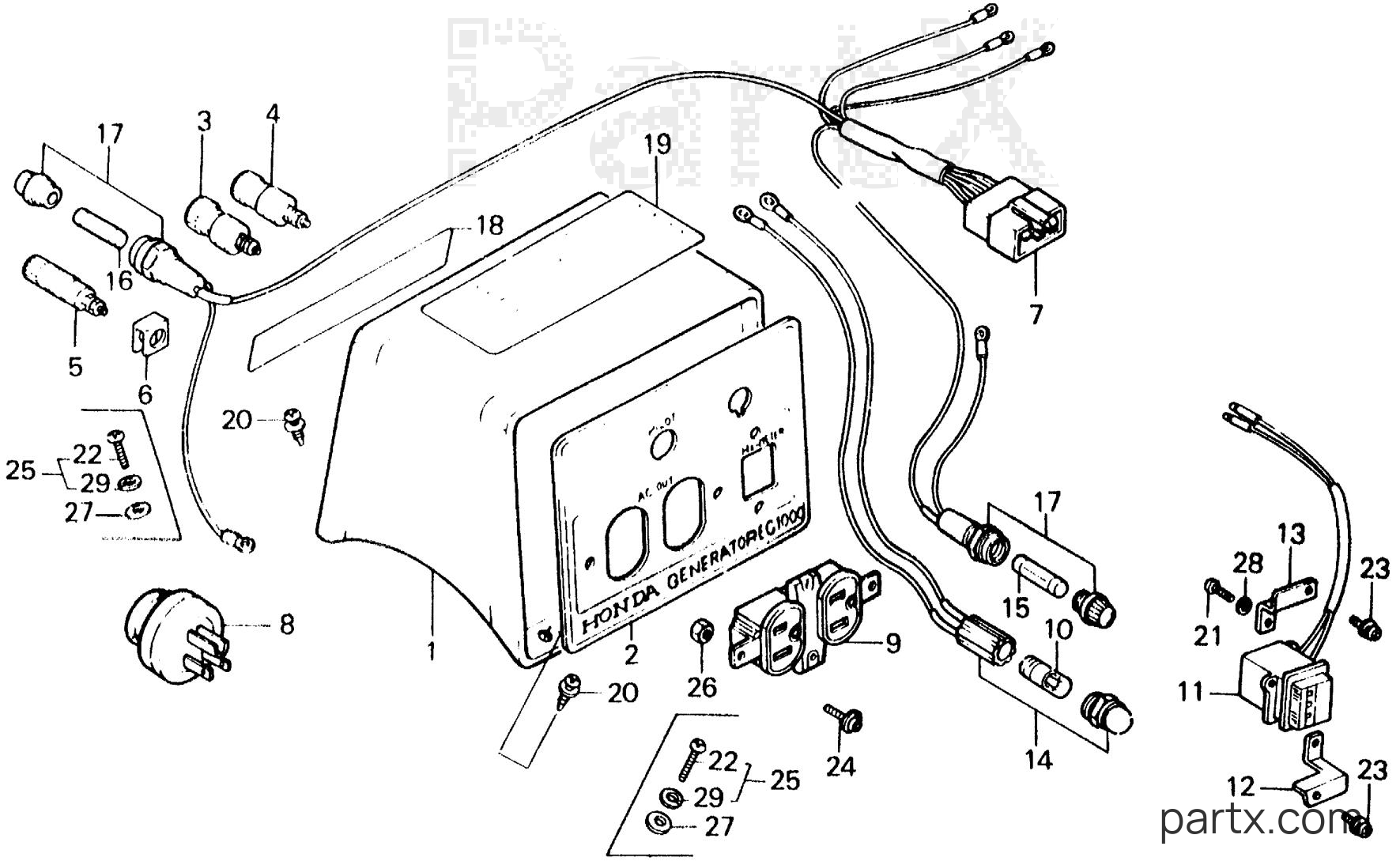

All Years Generator EG - EG1000 A CONTROL BOX diagram
001
Honda
BOX, CONTROL *R8*(BRIGHT RED) (NOT AVAILABLE)31402-875-013H
Required: 1
BOX, CONTROL *R8*(BRIGHT RED) (NOT AVAILABLE)
Price unavailable
002
Honda
PANEL, FR. (NOT AVAILABLE)31405-875-671
Required: 1
PANEL, FR. (NOT AVAILABLE)
Price unavailable
-15%
003
Honda
TERMINAL31408-880-000
Required: 1
TERMINAL, D.C. OUTPUT (+)
$38.74
You save $6.84
-15%
004
Honda
TERMINAL ASSY. B31409-815-168
Required: 1
TERMINAL ASSY. B
$38.74
You save $6.84
-15%
004
Honda
TERMINAL31409-880-000
Required: 1
TERMINAL, D.C. OUTPUT (-)
$38.74
You save $6.84
005
Honda
TERMINAL ASSY., GROUND31428-815-158
Required: 1
TERMINAL ASSY., GROUND
Price unavailable
005
Honda
TERMINAL ASSY., GROUND (NOT AVAILABLE)31428-880-000
Required: 1
TERMINAL ASSY., GROUND (NOT AVAILABLE)
Price unavailable
006
Honda
PLATE, GROUND31429-893-000
Required: 1
PLATE, GROUND
Price unavailable
-15%
007
Honda
CONNECTOR (6 POLE)32134-611-000
Required: 1
CONNECTOR, MALE (6 POLE)
$8.14
You save $1.44
-50%
008
Honda
PLUG, RECEPTACLE32310-812-640
Required: 2
PLUG ASSY., RECEPTACLE
In stock
Only 1 remaining
$3.35
You save $3.35
-15%
009
Honda
RECPTL (15A/125V)32333-880-680
Required: 1
RECEPTACLE (15A/125V)
$68.03
You save $12.01
-15%
010
Honda
BULB, DASH (24V-2W)34909-880-000
Required: 1
BULB, DASH (24V-2W)
$7.09
You save $1.25
011
Honda
METER, FREQUENCY (NOT AVAILABLE)37500-871-153
Required: 1
METER, FREQUENCY (NOT AVAILABLE)
Price unavailable
012
Honda
HOLDER A, FREQUENCY METER (NOT AVAILABLE)37501-880-000
Required: 1
HOLDER A, FREQUENCY METER (NOT AVAILABLE)
Price unavailable
013
Honda
HOLDER B, FREQUENCY METER (NOT AVAILABLE)37502-880-000
Required: 1
HOLDER B, FREQUENCY METER (NOT AVAILABLE)
Price unavailable
014
Honda
SOCKET ASSY., PILOT LAMP (NOT AVAILABLE)37561-868-158
Required: 1
SOCKET ASSY., PILOT LAMP (NOT AVAILABLE)
Price unavailable
-15%
$4.18
You save $0.74
015
Honda
FUSE (10A)38201-846-158
Required: 1
FUSE (10A)
Price unavailable
015
Honda
FUSE (10A)38201-846-158
Required: 2
FUSE (10A)
Price unavailable
-15%
$3.09
You save $0.55
017
Honda
HOLDER ASSY., FUSE (NOT AVAILABLE)38211-868-158
Required: 2
HOLDER ASSY., FUSE (NOT AVAILABLE)
Price unavailable
018
Honda
MARK, D.C. OUTPUT (NOT AVAILABLE)87535-875-670
Required: 1
MARK, D.C. OUTPUT (NOT AVAILABLE)
Price unavailable
019
Honda
PLATE A, DESCRIPTION (NOT AVAILABLE)87551-875-670
Required: 1
PLATE A, DESCRIPTION (NOT AVAILABLE)
Price unavailable
-15%
020
Honda
SCREW, TAP (5X14)90032-875-003
Required: 4
SCREW, TAPPING (5X14)
$2.31
You save $0.41
-15%
021
Honda
SCREW, PAN (3X8)93500-03008-0H
Required: 2
SCREW, PAN (3X8)
$0.76
You save $0.14
-15%
022
Honda
SCREW, PAN (5X16)93500-05016-0H
Required: 4
SCREW, PAN (5X16)
$0.85
You save $0.15
-15%
023
Honda
SCREW-WASHER (4X10)93892-04010-08
Required: 2
SCREW-WASHER (4X10)
$1.19
You save $0.21
-15%
024
Honda
SCREW-WASHER (4X12)93892-04012-08
Required: 2
SCREW-WASHER (4X12)
$0.66
You save $0.12
-15%
025
Honda
SCREW-WASHER (5X16)93892-05016-08
Required: 4
SCREW-WASHER (5X16)
$1.17
You save $0.21
-15%
026
Honda
NUT, HEX. (4MM)94001-04080-0S
Required: 2
NUT, HEX. (4MM)
$1.07
You save $0.19
-15%
027
Honda
WASHER, PLAIN (5MM)94101-05800
Required: 4
WASHER, PLAIN (5MM)
$1.02
You save $0.18
-15%
028
Honda
WASHER, SPRING (3MM)94111-03800
Required: 2
WASHER, SPRING (3MM)
$0.68
You save $0.12
-15%
029
Honda
WASHER, SPRING (5MM)94111-05800
Required: 4
WASHER, SPRING (5MM)
$1.17
You save $0.21
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
