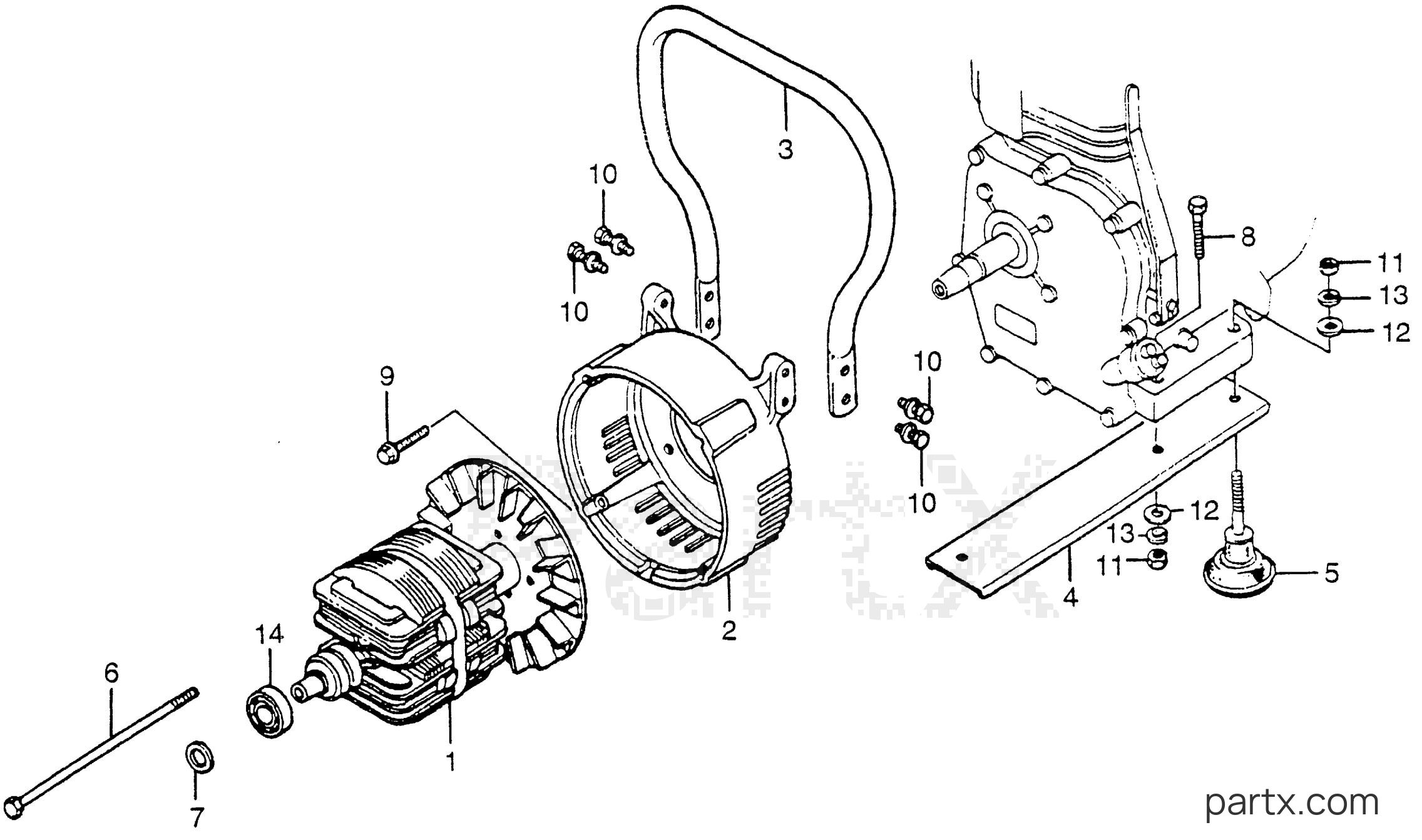

Honda ED1000 A - ROTOR - FRAME BED
Change View:
ROTOR (NOT AVAILABLE)
001
Honda
ROTOR (NOT AVAILABLE)31104-871-023
Required: 1
ROTOR (NOT AVAILABLE)
Price unavailable
HOUSING, FR. *R8*(BRIGHT RED) (NOT AVAILABLE)
002
Honda
HOUSING, FR. *R8*(BRIGHT RED) (NOT AVAILABLE)31109-871-003H
Required: 1
HOUSING, FR. *R8*(BRIGHT RED) (NOT AVAILABLE)
Price unavailable
HANDLE, CARRY (NOT AVAILABLE)
003
Honda
HANDLE, CARRY (NOT AVAILABLE)68110-871-000
Required: 1
HANDLE, CARRY (NOT AVAILABLE)
Price unavailable
BED, FRAME (NOT AVAILABLE)
004
Honda
BED, FRAME (NOT AVAILABLE)68301-871-000
Required: 2
BED, FRAME (NOT AVAILABLE)
Price unavailable
RUBBER (LOWER) (NOT AVAILABLE)
005
Honda
RUBBER (LOWER) (NOT AVAILABLE)68320-871-013
Required: 2
RUBBER (LOWER) (NOT AVAILABLE)
Price unavailable
BOLT, HEX. (5/16X160) (NOT AVAILABLE)
006
Honda
BOLT, HEX. (5/16X160) (NOT AVAILABLE)90021-871-000
Required: 1
BOLT, HEX. (5/16X160) (NOT AVAILABLE)
Price unavailable
-15%
WASHER (23X8.3X3.2)
007
Honda
WASHER (23X8.3X3.2)90430-657-000
Required: 2
WASHER (23X8.3X3.2)
Cross Ship
Leaves in 2-5 days
$8.56
$7.28
You save $1.28
More details
-15%
BOLT, HEX. (8X35)
008
Honda
BOLT, HEX. (8X35)92101-08035-0A
Required: 2
BOLT, HEX. (8X35)
Cross Ship
Leaves in 2-5 days
$1.18
$1.00
You save $0.18
More details
BOLT-WASHER (8X25)
009
Honda
BOLT-WASHER (8X25)93481-08025
Required: 4
BOLT-WASHER (8X25)
Price unavailable
BOLT-WASHER (8X25) (NOT AVAILABLE)
009
Honda
BOLT-WASHER (8X25) (NOT AVAILABLE)93481-08025-00
Required: 4
BOLT-WASHER (8X25) (NOT AVAILABLE)
Price unavailable
BOLT-WASHER (8X25) (NOT AVAILABLE)
010
Honda
BOLT-WASHER (8X25) (NOT AVAILABLE)93492-08025-08
Required: 4
BOLT-WASHER (8X25) (NOT AVAILABLE)
Price unavailable
-15%
NUT, HEX. (8MM)
011
Honda
NUT, HEX. (8MM)94001-08000-0S
Required: 4
NUT, HEX. (8MM)
Cross Ship
Leaves in 2-5 days
$1.60
$1.36
You save $0.24
More details
-15%
WASHER, PLAIN (8MM)
012
Honda
WASHER, PLAIN (8MM)94101-08000
Required: 4
WASHER, PLAIN (8MM)
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
-15%
WASHER, SPRING (8MM)
013
Honda
WASHER, SPRING (8MM)94111-08000
Required: 4
WASHER, SPRING (8MM)
Cross Ship
Leaves in 2-5 days
$1.20
$1.02
You save $0.18
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
